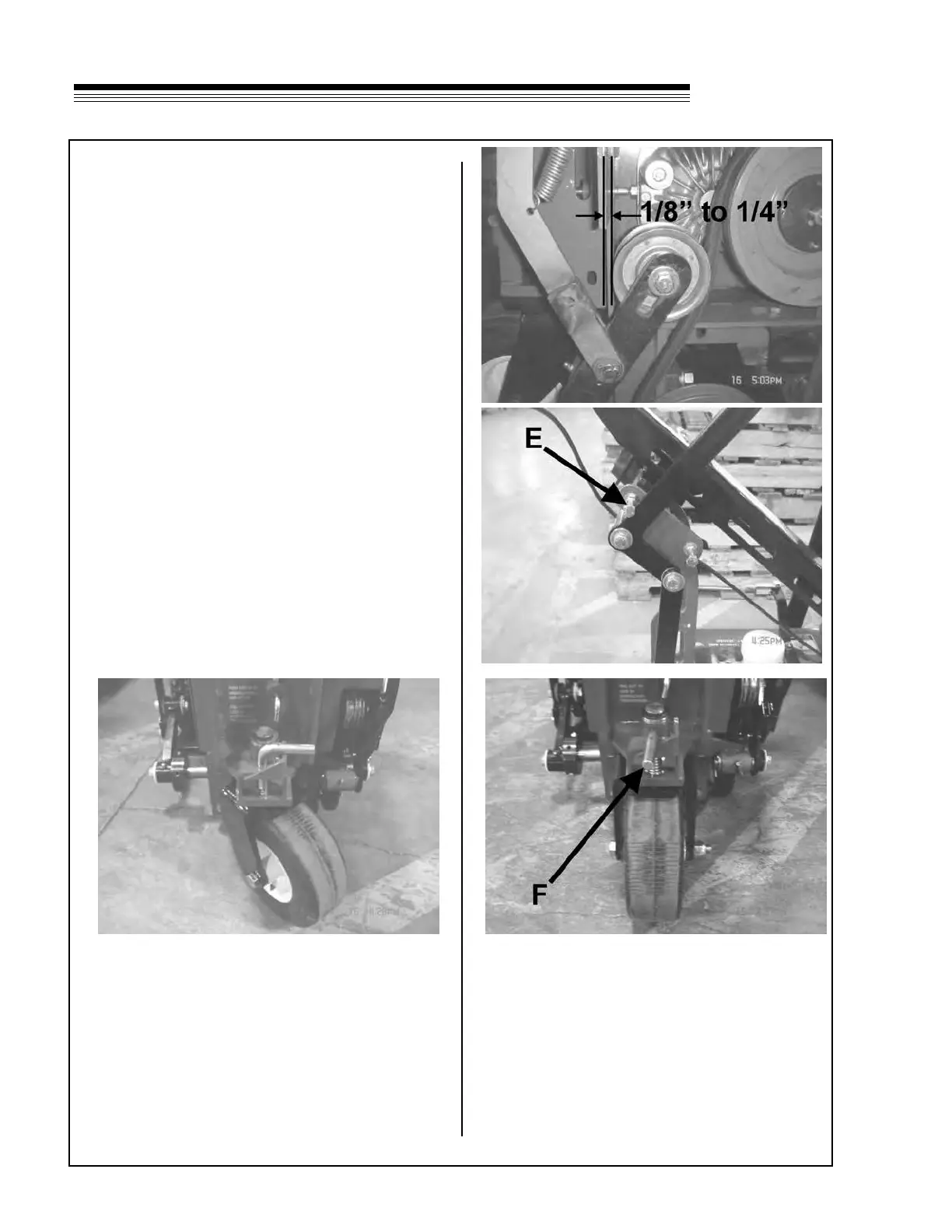

BELT DISENGAGEMENT
1. Remove belt cover for access.
2. Move blade engagement lever until idler is
about 1/8” to 1/4” away from the back plate Fig-
ure 6
3. Adjust stop bolt E to the lever with idle 1/8”to
1/4” from back plate. Figure 7
4. Reinstall belt cover.
REAR WHEEL LOCK OR SWIVEL
To allow rear wheel to swivel:
1. Pull pin F up and turn. Figure 8 & 9
To lock rear wheel:
1. Turn pin F.
2. Move wheel back and forth until pin drops back
into locking hole. Figure
FIGURE 6
FIGURE 7
FIGURE 8
FIGURE 9
ADJUSTMENTS
14
PRO
SOD CUTTER
