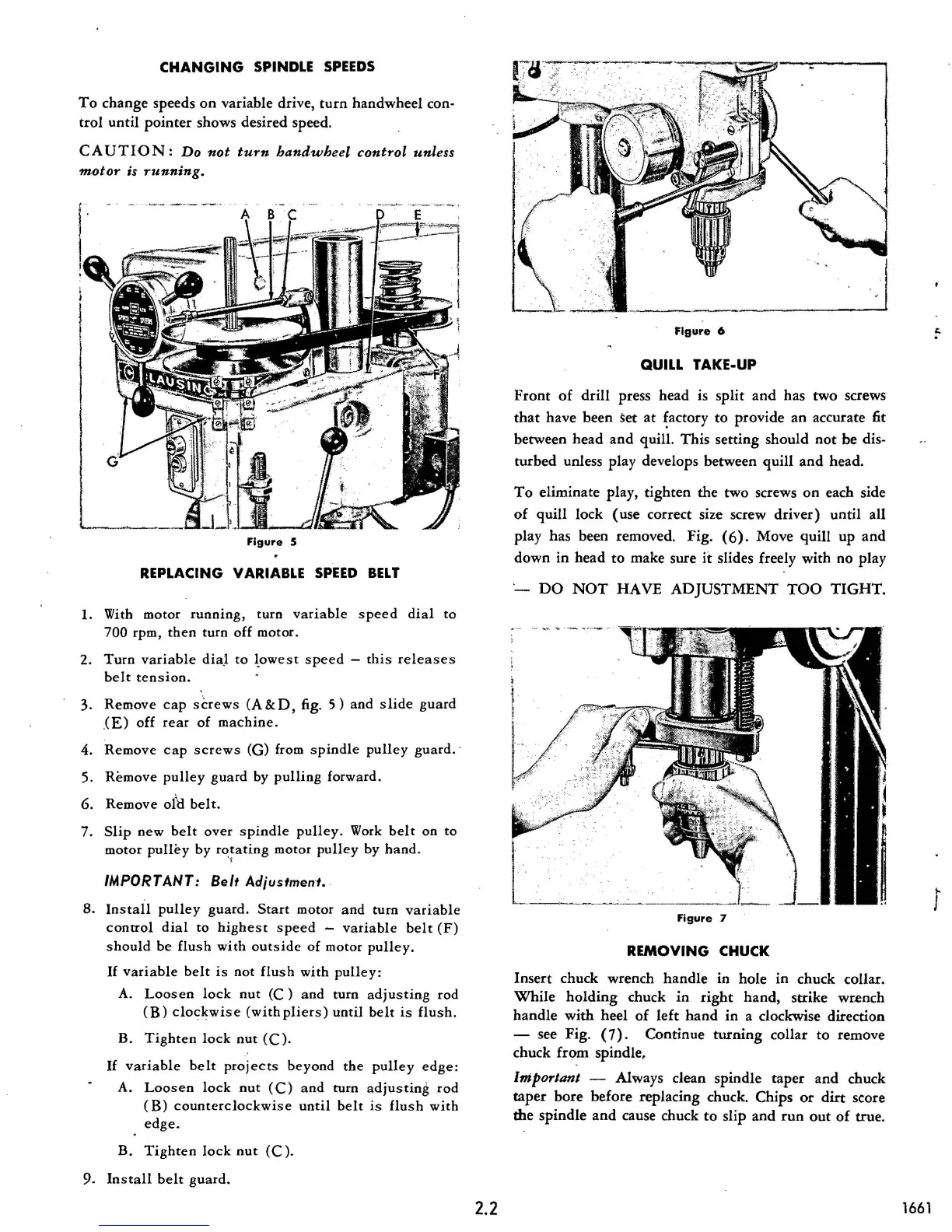

CHANGING
SPINDLE
SPEEDS
To
change
speeds
on
variable drive,
turn
handwheel con-
trol
until
pointer
shows desired speed.
CAUTION:
Do
not
turn
handwheel
control
unless
motor
is
running.
Figure
5
REPLACING VARIABLE
SPEED
BELT
1. With
motor
running,
turn
variable
speed
dial
to
700
rpm,
then
turn
off
motor.
2.
Turn
variable
dia
.l
to
~owest
speed
-
this
releases
belt
tension.
3.
Remove
cap
screws
(A
&
D,
fig. 5 )
and
s
!ide
guard
.(E)
off
rear
of
machine.
4.
Remove
cap
screws
(G)
from
spindle
pulley
guard.·
5.
Remove
pulley
guard
by
pulling
forward.
6.
Remove
ol\J
belt.
7.
Slip
new
belt
over
spindle
pulley.
Work
belt
on
to
motor
pulley
by
rotating
motor
pulley
by
hand.
)
IMPORTANT: Belt Adjustment.
8.
Install
pulley
guard.
Start
motor
and
turn
variabl
e
control
dial
to
high
es
t
spee
d -
variable
belt
(F)
s
hould
be
flush
with
out
side
of
motor
pulley.
If
variable
belt
is
not
flush
with
pulley:
A.
Loosen
lock
nut
(C)
and
turn
adjusting
rod
(B)
clockwise
(with
pliers)
until
belt
is
flush.
B.
Tighten
lock
nut
(C)
.
If
variable
belt
proj
ects
b
eyond
the
pulley
edge:
A.
Loosen
lock
nut
(C)
and
turn a
djusting
rod
(B)
counterclockwise
until
belt
is
flush
with
edge
.
B.
Tighten
lock
nut
(C).
9.
Ins
tall
be
lt
guard.
2.2
Figure
6
QUILL TAKE-UP
Front
of
drill
press head is
split
and
has
two
screws
that
have
been
set
at
~actory
to
provide
an
accurate fit
between
head
and
quill.
This
setting
should
not
be
dis-
turbed
unless
play
develops between
quill
and
head.
To
eliminate play,
tighten
the
two
screws
on
each side
of
quill
lock
(use
correct size screw
driver)
until
all
play has been removed. Fig.
(6).
Move
quill
up
and
down
in
head
to
make sure
it
slides freely
with
no
play
·-
DO
NOT
HAVE
ADJUSTMENT
TOO
TIGHT
.
Figure
7
REMOVING CHUCK
Insert
chuck
wrench
handle
in
hole
in
chuck collar.
While
holding
chuck
in
right
hand,
strike wrench
handle
with
heel
of
left
hand
in
a clockwise direction
- see Fig.
(7).
Continue
turning
collar
to
remove
chuck
from
spindle,
Important -
Alw
ays clean
spindle
taper
and
chuck
taper
bore
before replacing chuck. Chips
or
dirt
score
the
spindle
and
cause chuck
to
slip
and
run
out
of
true.
r
1661
