CleanWater Tech CD1500P - CD2000 P Logic Schematic

Appendix (continued)
29

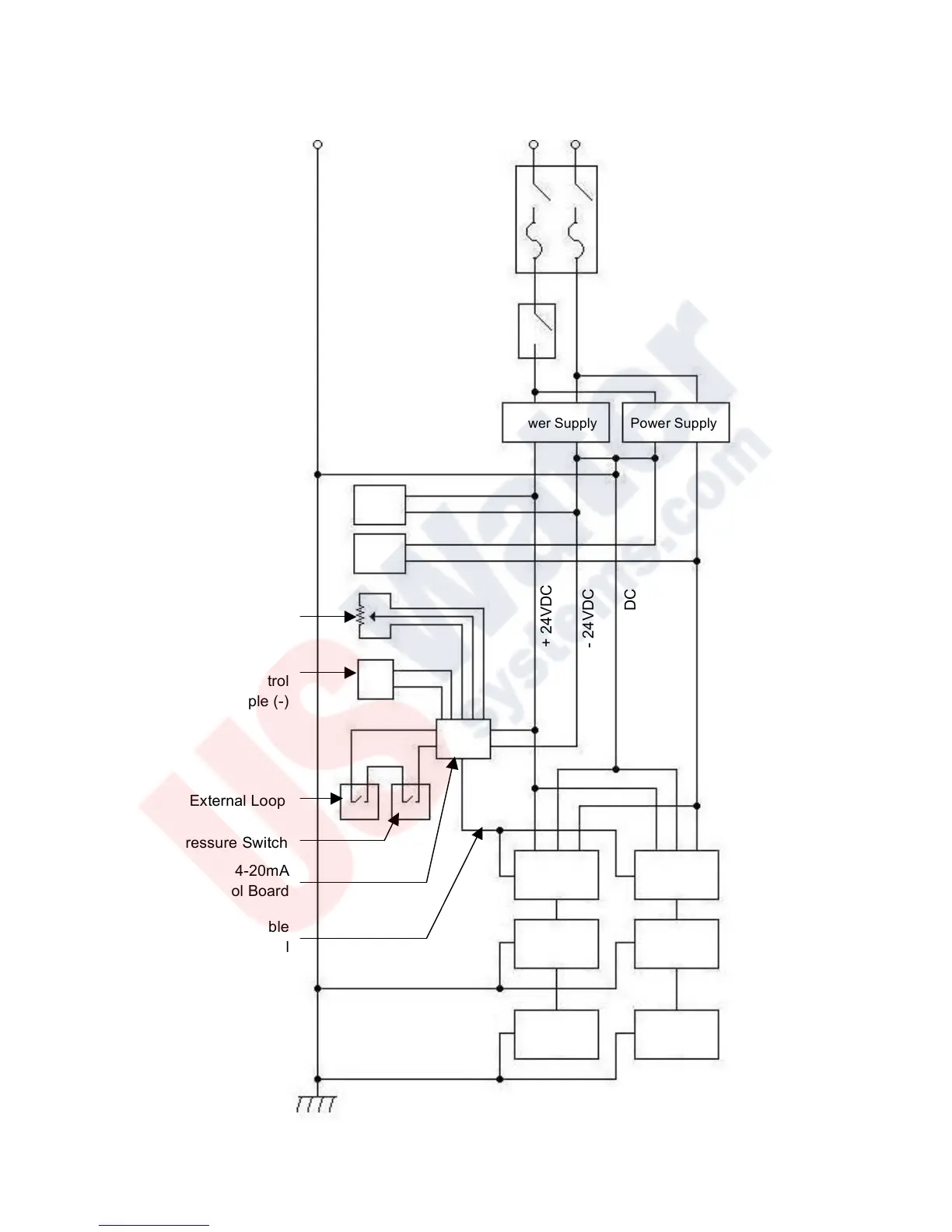

Logic Schematics – CD2000P
Shown: Electrical Schematic –
CD2000P
G L1 L2/N
Power Entry Module
With Fuses
Cover Safety
Switch
Power Supply
Power Supply
Fan
Fan
+ 24VDC
+ 24VDC
- 24VDC
- 24VDC
Manual Ozone
Output Control
Remote 4-20mA Ozone
Output Control
Orange (+), Purple (-)
External Loop
4-20mA
Control Board
Variable
Output Signal
Drive Board
High Voltage
Transformer
Reaction
Chamber
Reaction
Chamber
High Voltage
Transformer
Drive Board
Pressure Switch
