PS-702 TWO-CHANNEL POWER SUPPLY
1-2
conditions such as low AC line voltage, momentary shorts on the DC power
lines to the stations, and excessive peak loads during “power-on”conditions.
The following features are incorporated into the PS-702’s power supply:
• AUTOMATIC SHORT CIRCUIT PROTECTION: The PS-702’s
internal power supply checks each channel for a short or current overload.
If it detects a short the power supply will shut down that channel. A short
duration short circuit will not cause the power supply to interrupt power.
• AUTOMATIC OVERLOAD PROTECTION: The PS-702’s internal
power supply senses the difference between shorts and overloads. If an
overload is detected the power supply will shut down that channel. An
overload lasting a short period will not cause the power supply to
interrupt power.
• AUTOMATIC POWER RESTORE: The PS-702’s internal power
supply senses the difference between short-term and long-term shorts and
overload conditions. After the first few times a short or overload occurs,
the power supply will try to restore power after only 0.5 seconds. If the
short or overload persists or occurs repeatedly, the power supply will take
progressively longer (to a maximum of 20 seconds) to try to restore
power. This protects the power supply from damage due to overheating.
Once the short is removed, the channel will recover, even under a full load
condition. The automatic power restore times are shown in the following
chart:

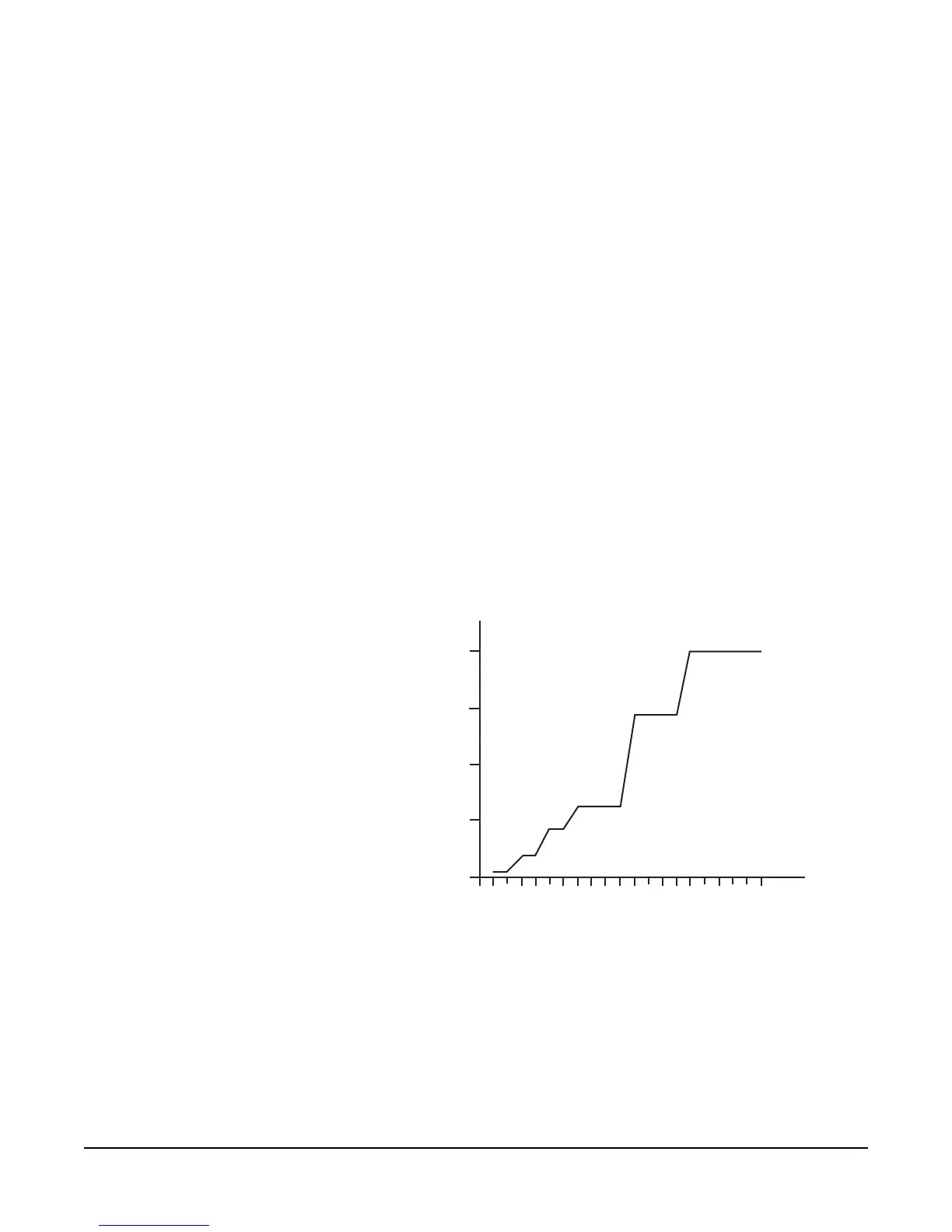

Figure 1-1: Automatic Power Restore Times
• INDIVIDUAL CHANNEL SHORT CIRCUIT PROTECTION: Each
individual channel is separately overload and short circuit protected and
may draw as much as 1.2 amperes, though the total to both channels is
limited to 2 amperes. A short on any one intercom line will not bring the
whole system down.
• FRONT PANEL INDICATIONS: There are two short/overload
indicators on the front panel (one for each channel) and a power indicator
1
2
3
4
5
67
8
9
10
11
12
13
14 15
16
17
18
19
20
5
10
15
20
0
0
0.5
2
4
7
14
20
Number of
seconds to
restore
Number of recent shorts or overloads
