Clearaudio TT5 - TT5 adjustment; Setting the position; Pre-adjustment of the tracking force

User manual / Bedienungsanleit ung
10 © clearaudio electronic GmbH, 2018/ 12
5. TT5 adjustment
5.1 Setting the position
Use a ruler t o measure t he dist ance from t he t ip of t he needle t o t he front edge of t he t onearm slide.
The optimum measurement is 64mm.
To adjust it, slightly open both screws on top of the tonearm carriage using the #1.5 hex wrench
and move the headshell into the correct position.

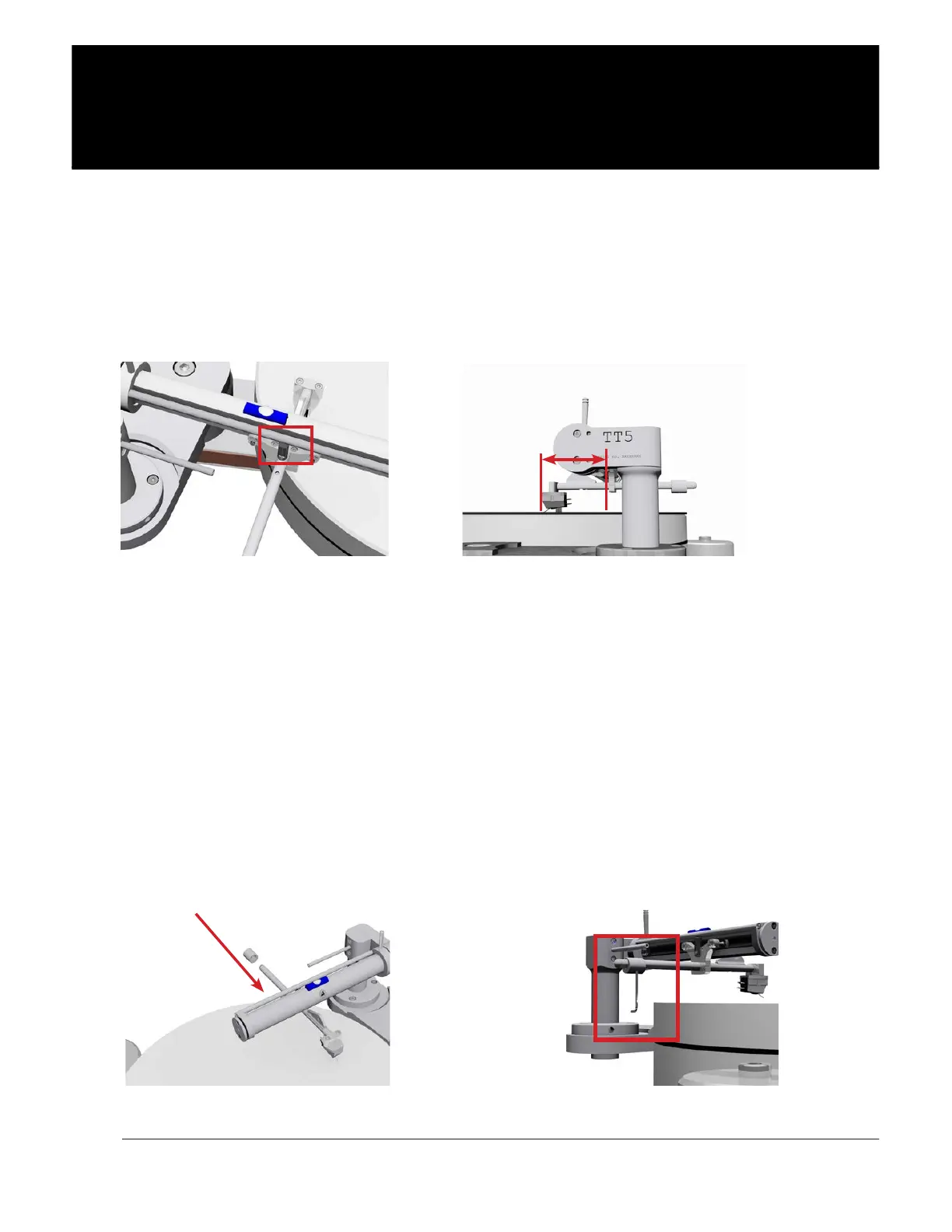

Pic. 12: Correct positionPic. 11: Screws of the tonearm slide
64mm
5.2 Pre-adjustment of the tracking force
Note: This step requires removing the stylus guard from the cartridge.
Please proceed w ith great care to avoid any damage.
Use one of the counterweights supplied to adjust the tracking force, so that the cartridge is lowered
with minimal force. The choice of counterweight will depend on the weight of the cartridge.
Our recommendat ion:
Weight size 1 for cartridges weighing 7g
Weight size 3 for cartridges weighing 8g
Weight size 4 for cartridges weighing 12g
This tonearm is suitable for cartridges with a weight of 7g or more. If your cartridge is lighter, use a
weight between the headshell and the cartridge (headshell plate is not included).
Pic. 13: Mounting the cartridge weight
Pic. 14: Fixing the weights
