Assembly Instructions Cont’d
1. Locate the “trap” doors that open in the wood
roof.
2. Connect the cables under the trap door to
the same colored connector in the roof (e.g,
black/white, red/black, yellow/black, etc.)
3.
Connect the green ground wire that come out
of the side wall to the green ground wire that
is in the wood roof.
Push the wiring inside the roof area and close
the roof door compartments.

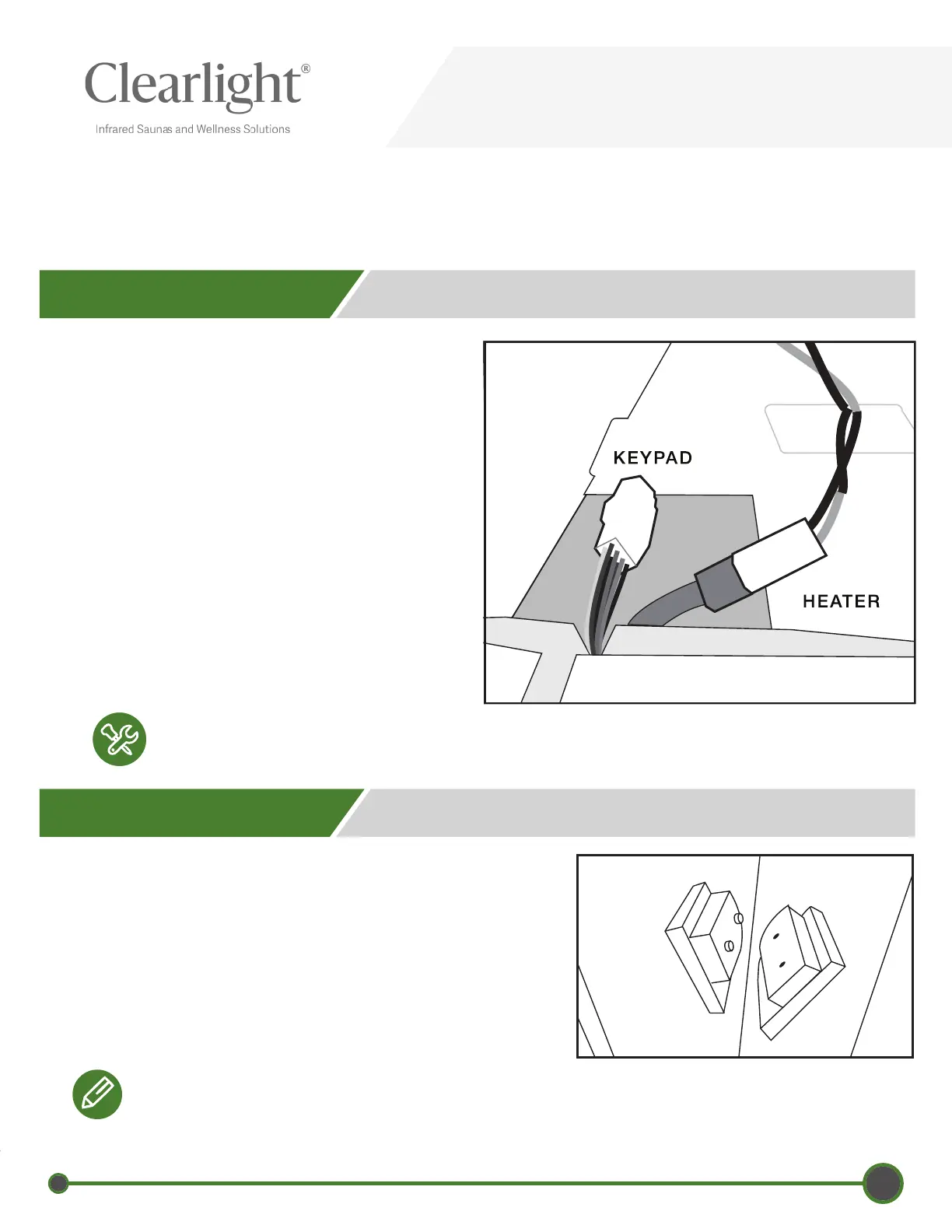

4. In the left side wall compartment, there will
be two connectors: 1) Heater connector. 2)
Keypad connector. The heater connector is a
two wire connector. The keypad connector is
a seven wire connector.
1. Locate the two door handles.
2. Attach the right side door handle using the enclosed screws.
3. Attach the left side door handle using the enclosed screws.
11 - CONNECT HEATERS IN ROOF
12 - INSTALLING DOOR HANDLE
BE SURE TO MATCH THE COLORS IN THE CONNECTORS.
THE BLACK WIRE SHOULD MATCH UP WITH THE BLACK WIRE, ETC.
Note: If you are using a tablet or smartphone to control your sauna, the door handle will act as
both the door handle and tablet/smartphone holder when the door is closed.
