20 Technical Support: 800.283.5936

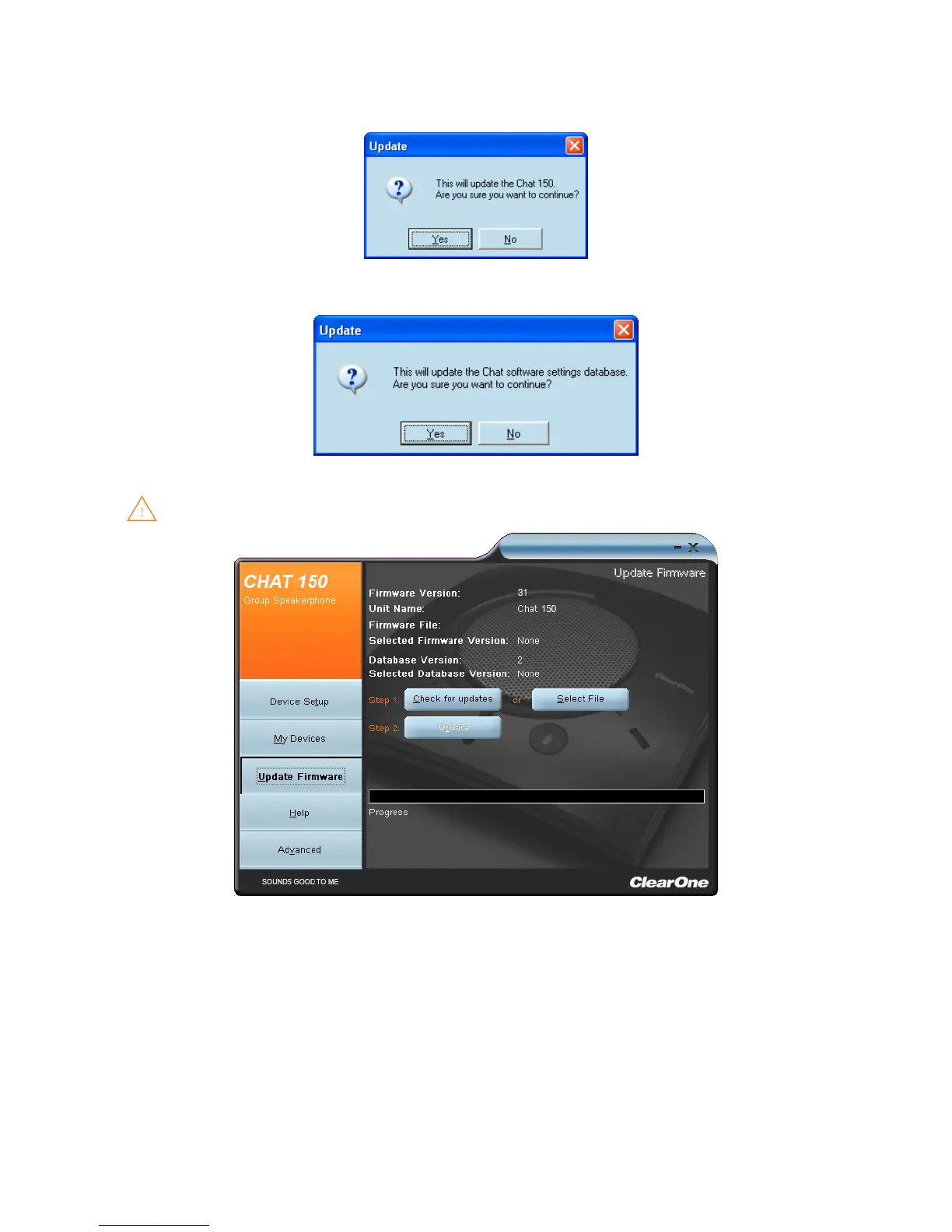

When you click either of the update buttons, an Update dialog appears.
6. Click Yes to proceed with the firmware or device database update, or No to cancel.
7. A second Update dialog appears. Click Yes to proceed or No to cancel.
8. A series of messages appears below the progress bar indicating that the updates are in progress.
WARNING: Do not unplug the CHAT 150 while updates are in progress.
9. When the update is complete the following message appears below the progress bar:
“Update Successful! The firmware for CHAT has been changed to <• new revision level>”
where <new revision level> is the new firmware revision number.
“Update Successful! The database has been updated to <• new revision level>” where <new
revision level> is the new database version number.
10. Your CHAT 150 now has the most recent firmware and/or device database updates available.
