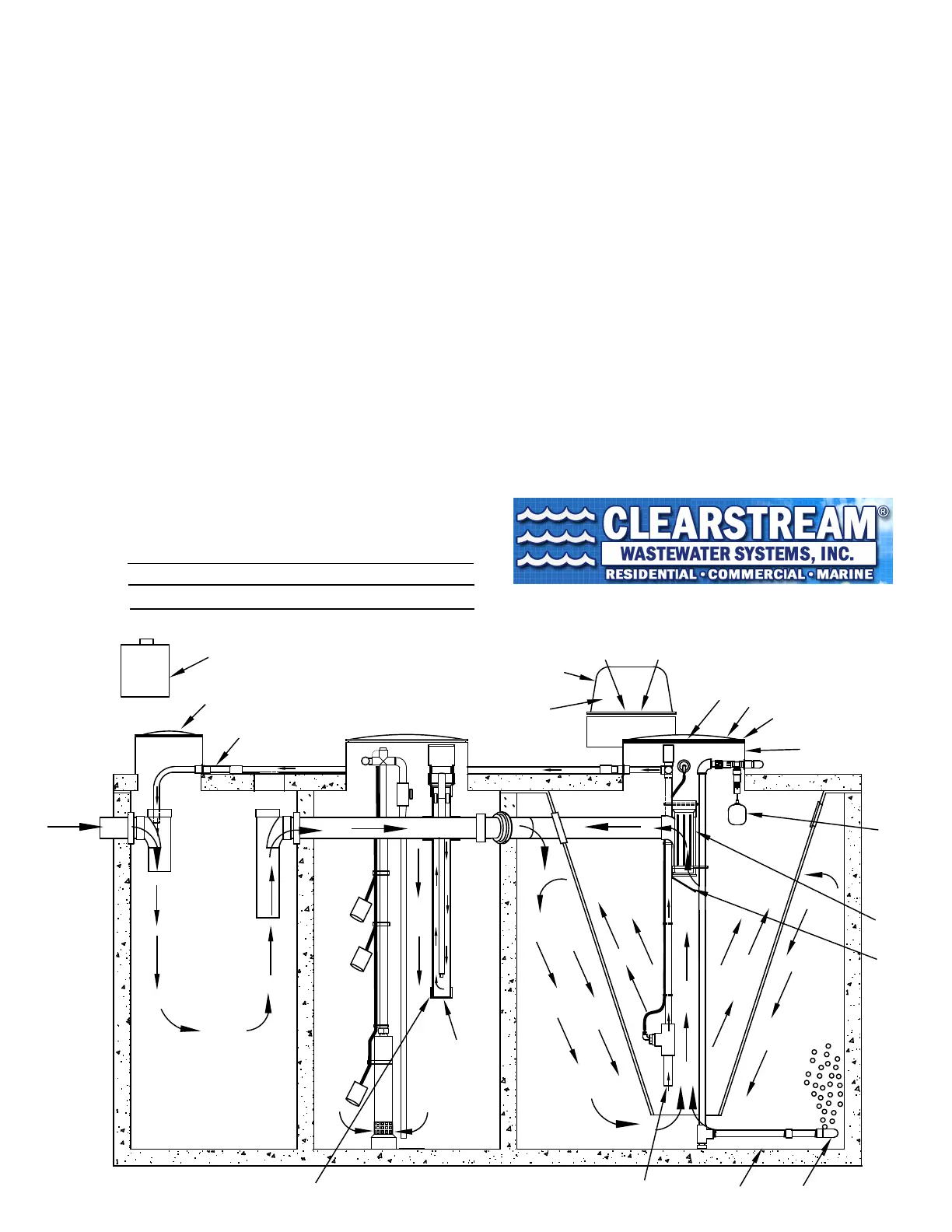

PARTS LIST AND FLOW DIAGRAM: MODEL 600DAC3
PART NAME:
1. RETURN FLOW LINE TO PRETREAT
2.
HIGH
WATER ALARM FLOAT
3. AERATOR
4. NAMEPLATE
5.
ACCESS COVER
6. TAMPER RESISTANT SCREW
7. ATU TANK
8.
DIFFUSER
9. ALARM PANEL
10. PLASTIC 12' DIA. EXTENSION RISER
11.
PLASTIC 20' DIA. EXTENSION RISER
12. AIR SOLENOID VALVE (LOCATED INSIDE HOUSING)
13. AIR FLOW CONTROL VALVE (INSIDE HOUSING)
14. AERATOR POLYETHYLENE HOUSING
15. AIRLIFT RECYCLE ASSEMBLY
16. GAS BAFFLE
17. FLOW CONTROL WEIR
18. UV DISINFECTION DEVICE (optional Std 40, 245, req Std 350)
PART NUMBER:
CS-101
CS-102
CS-103ET6
CS-107
CS-108
CS-109
CS-11
CS-113
CS-114
CS-116A
CS-116
CS-130
CS-131
CS-106
CS-132
CS-117
CS-111
CSUV1
COMPONENT PARTS MAY BE OBTAINED
FROM YOUR LOCAL SERVICING DEALER
OR
PO BOX 705 BEAUMONT, TX 77726 800-586-3656
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
AERATOR
CLEARSTREAM
500DA
9
CSUV1 optional
for Std 40 and 245
applications.
Required for Std 350
applications.
10 of 12
