23

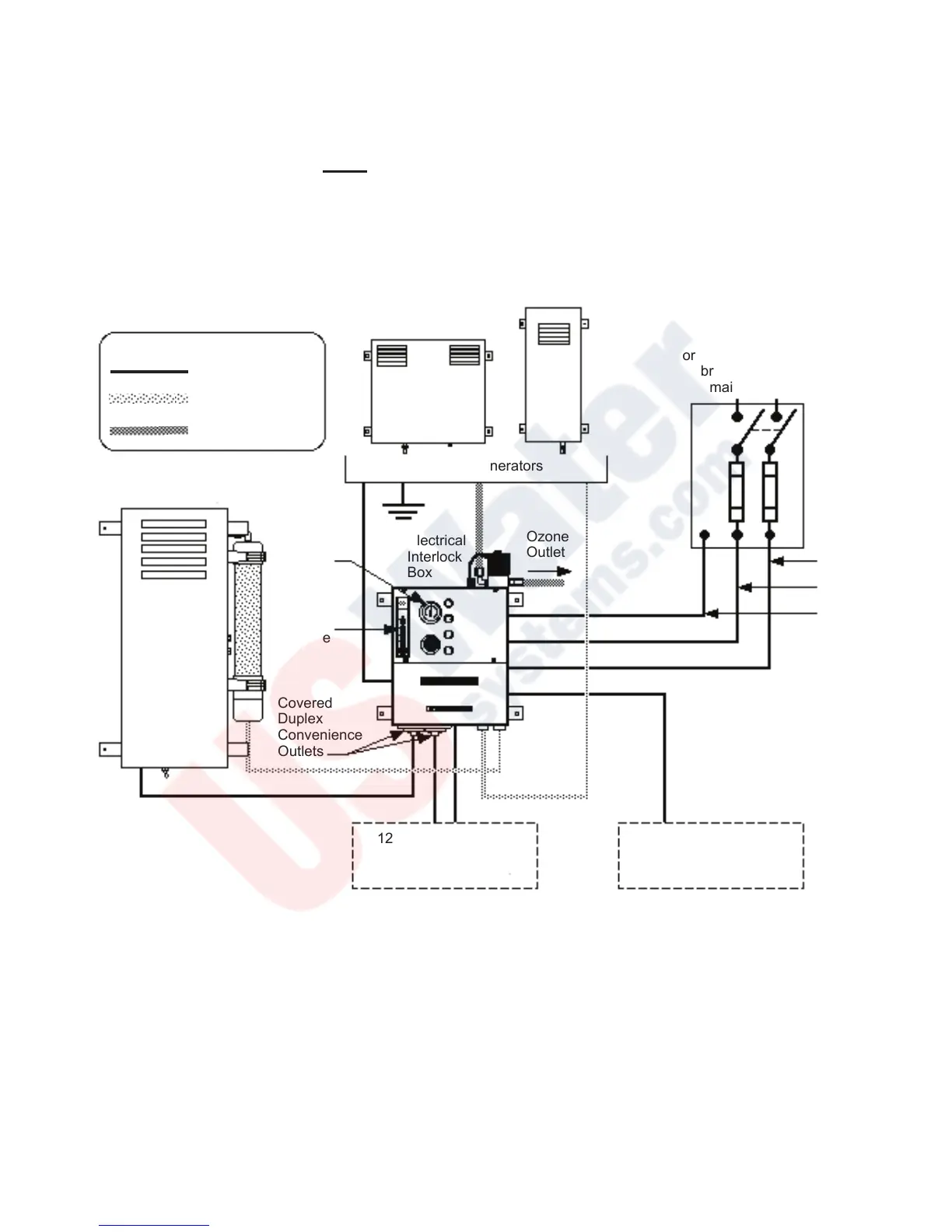

ELECTRICAL SCHEMATIC WITH OPTIONAL ELECTRICAL INTERLOCK BOX
240 VAC, 60 Hz, Single Phase
M-1500: 2 Amps without Booster Pump, 7 Amps with 1/2 HP Booster Pump
P-2000: 10 Amps with 3/4 HP Booster Pump
Electrical Connections - continued
Connections:
Electrical Wiring
Braided Air Line
Teon
®
Ozone Line
AD-40 Air Dryer, Dry air or Oxygen
Vacuum
Gauge
SCFH
Gauge
Covered
Duplex
Convenience
Outlets
Ozone Generators
Electrical
Interlock
Box
Ozone
Outlet
Service disconnect
or from a dedicated
breaker in the
main panel
L1
L2
Neutral
120 VAC signal from the
motor starter of the
main circulation pump
120 VAC signal to the
ozone generator
form the ORP controller
To Next Page
