System layout
2
EN
2 System layout
The communication between the controller and the tool is possible via WLAN or Bluetooth.The access point
is integrated in the mPro200GC-AP controller. To communicate with the controller, the tools must be in the
mPro mode.
2.1 WLAN communication
The system layout described is based on communication via WLAN. The access point is integrated in the
mPro200GC-AP controller. The tools can communicate according to the following standard:

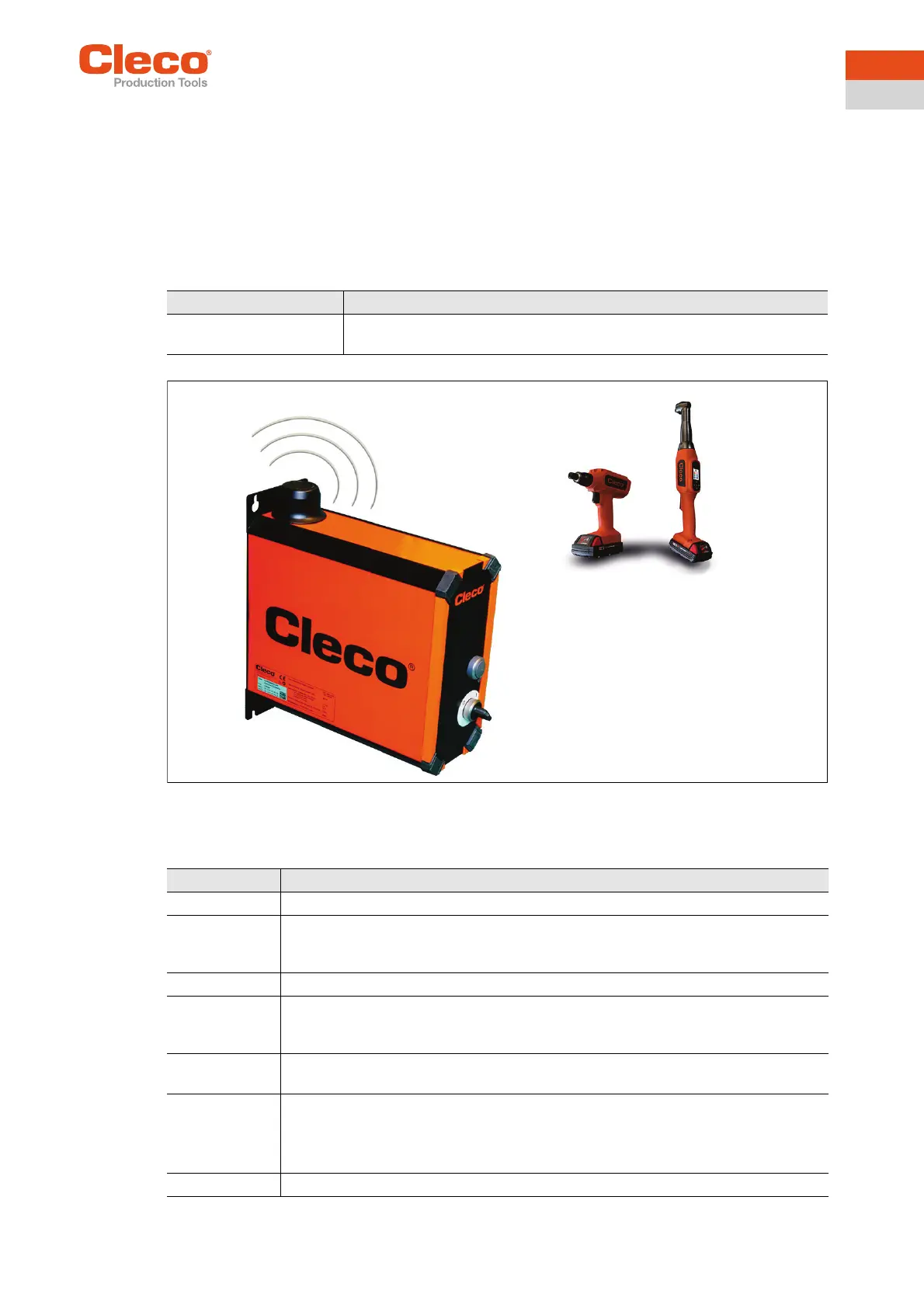

Abb. 2-1: System layout with mPro200GC-AP
2.1.1 Data on the tool
Tool Standard
CCBA, CCBP WLAN dual band:
2.4 GHz/5 GHz Standard IEEE 802.11 a/b/g/n
mPro200GC-AP
CCBA/CCBP (mPro mode)
Integrated access point
Features Data
Standard IEEE 802.11a/b/g/n
Safety • WEP 64/128 encryption
• WPA/WPA2 TKIP/AES
• 802.1x LEAP, PEAP
a
a. ) PEAP (without client certificates)
Range Typically up to 50 m
Channels • 1 – 13 (2.412 – 2.472 GHz)
• 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136,
140, 149, 153, 157, 161, 165 (5.180 – 5.825 GHz)
Transmission
power
20 dBm
Sensitivity -95 dBm (typ. @ 1 Mbps DSSS, 2.4 GHz)
-66.3 dBm (typ.@ 40 MHz MCS7 MM 4K)
-92.5 dBm (typ. @ 6 Mbps OFDM, 5 GHz)
-69.3 dBm (typ @ 40 MHz MCS7 MM 4K, 5 GHz)
Modulation CCK/DSSS/OFDM
