APOLLO HIGH PRESSURE SUPPLIED-AIR RESPIRATOR Page 6
HELMET MODEL 600
© 2011 CLEMCO INDUSTRIES CORP. www.clemcoindustries.com
Manual No. 23930
3.3.1 The breathing tube has a clamped-on end and a
molded-on end. Attach the clamped-on end to the
threaded air-inlet fitting at the back of the helmet as
shown in Figure 2. Do not over-tighten; hand-tight is
sufficient.
3.3.2 Attach the molded-on swivel connector to the
selected air-control device.

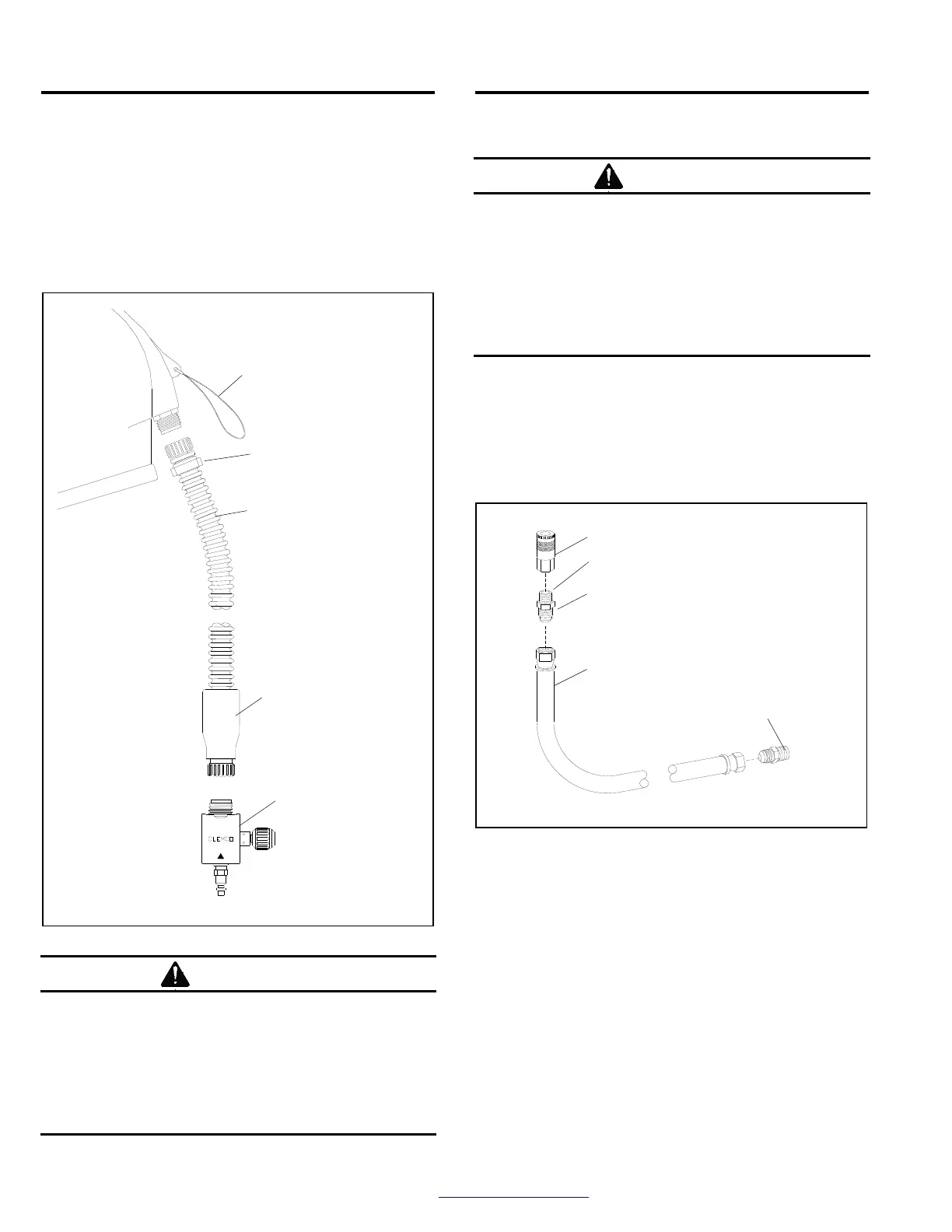

Figure 2
CAUTION
Use the strap handle to carry or hang the
respirator. Never hold, carry or hang the
respirator by the breathing tube. Mishandling
the respirator in this manner may damage the
tube or helmet inlet. Any leaks or breaks in the
breathing tube will alter the air flow through the
respirator and affect user’s safety and comfort.
3.4 Respirator Hose
WARNING
OSHA regulations 29 CFR 1910 and 29 CFR
1926 require that respirator air line couplers be
incompatible with air lines for non-respirable
use. This incompatibility prevents inadvertent
supply of respirators with potentially
hazardous, non-respirable gases or oxygen. It
is the employer's or facility owner's
responsibility to comply with the regulation.
3.4.1 Respirator hose must be NIOSH-approved
Clemco 3/8
" ID respirator hose.
3.4.2 Apply Teflon tape to the 1/4" NPT threads on the
3/8" hose to 1/4" pipe adaptor as shown in Figure 3, and
connect it wrench-tight to the female disconnect.
Figure 3
3.4.3 Attach the adapter/disconnect assembly to one
end of the respirator hose.
3.4.4 Using the 3/8
" hose to 3/8" pipe adaptor
provided, connect the other end of the respirator hose to
a respirable air source.
3.4.5 Connect the disconnect end of the respirator
hose to the air-control device.
3.4.6 If longer hose is required, it must be a NIOSH-
approved Clemco 3/8
" respirator hose extension. Use any
25-foot, 50-foot and 100-foot Clemco respirator hoses in
any combination as noted in the table in Section 4.4, not
to exceed 300 ft. or 12 individual hose lengths.
Air-Control Device
(Alternate ACV control
valve shown)
Connect the molded-on
swivel to the air-control
device.
Breathin
Tube Assembl
Connect the clamped-on
swivel to the helmet’s
inlet fitting.
Strap Handle
Female Disconnect
3/8" Hose to 1/4" Pipe Adaptor
Respirator Hose
3/8" Hose to 3/8" Pipe Adaptor
Connect to
oint of attachment
Apply Teflon tape to 1/4" NPT threads
