APOLLO HIGH PRESSURE SUPPLIED-AIR RESPIRATOR Page 18
HELMET MODEL 600
© 2011 CLEMCO INDUSTRIES CORP. www.clemcoindustries.com
Manual No. 23930

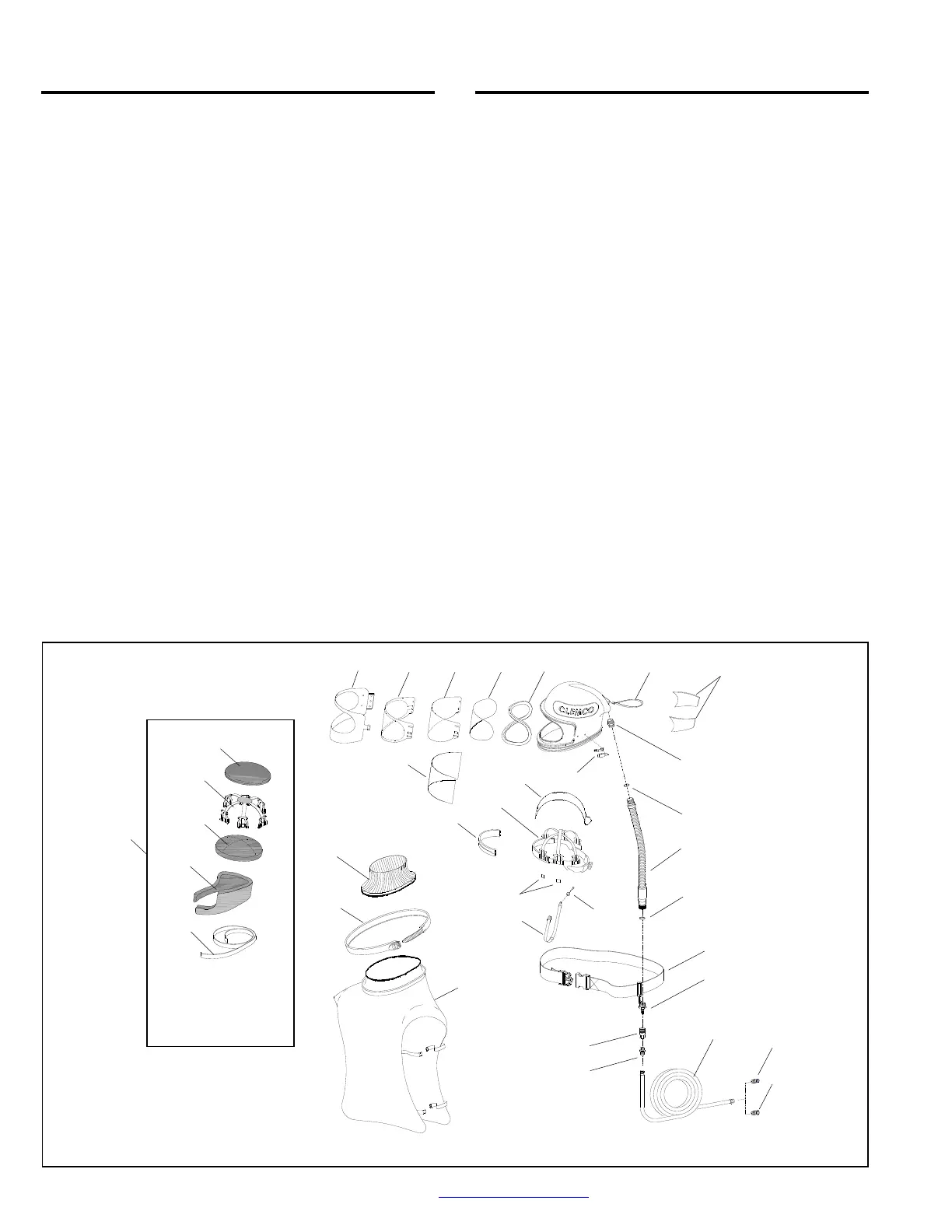

10.5 Respirator Replacement Parts, Figure 8
Item Description Stock No.
1. Constant-flow connector, HP (alternate),
without belt ............................................. 21415
2. Belt, 2" web with buckle ............................ 04430
3. Respirator hose, 3/8" x 25 ft. (alternate),
includes items 6 and 7 ............................ 04397
4. Respirator hose, 3/8" x 50 ft. (alternate),
includes Items 6 and 7 ........................... 04415
5. Respirator hose, 3/8" x 100 ft. (alternate),
includes items 6 and 7 ........................... 04398
6. Adaptor, 3/8" hose to 3/8 NPT .................. 00022
7. Union, 3/8" hose to 3/8" hose .................... 01020
8. Disconnect, 1/4 NPT female ..................... 00025
9. Adaptor, 3/8" hose to 1/4 NPT .................. 01019
10. Acoustical foam kit, both sides
Not used with padded suspension ......... 04369
11. Gasket, window ......................................... 23819
12. Inner lens, .040", package of 5 .................. 04367
13. Outer lens, .0075", perf’ed, pack of 25 ...... 04361
14. Intermediate lens, .020",
package of 5 ........................................... 24943
package of 25 ......................................... 04373
15. Window frame assembly ............................ 24012
16. Chin strap .................................................. 04460
17. Handle strap .............................................. 03623
18. Cape attachment band .............................. 23801
19. Outer lens, .015", rectangular
package of 25 ......................................... 24005
20. Cape, grey, includes item 23 ..................... 23818
21. Breathing tube assembly w/ (2) item 22 .... 22811
22. O-ring, 7/8" OD, 2 required ....................... 22815
23. Inner collar ................................................. 08740
24. Latch kit, window frame
includes base, screws and nuts ............. 24006
25. Inlet fitting, breathing tube ......................... 23804
26. Chin strap holder kit (2 w/ fasteners) ........ 24008
27. Partition, air baffle ..................................... 23811
28. Clips, suspension (pack of 4) ..................... 24773
29. Sweatband, used with item 30 ................... 23817
30. Web suspension with sweatband
(alternate) ............................................... 23802
31. DLX padded suspension kit (alternate)
includes items 27 and 32 thru 36 ........... 25189
32. Pad, top ..................................................... 25181
33. Suspension web ......................................... 25184
34. Pad, middle ............................................... 25182
35. Pad, side
black/grey fits most head sizes ............... 25183
black/blue for smaller head sizes ............ 25187
36. Hook-fastener tape, 1" adhesive backed,
1-inch x 3-feet long.................................. 24656
Figure 8
Alternate
DLX Padded
Suspension
Some items are rotated for clarity
24
14
11
12
17
19
1
21
2
3
4
5
20
6
7
18
27
16
23
22
1
9
8
30
1
13
22
25
26
29
28
34
32
33
35
31
36
