1.4 Components
1.4.1 The primary components of the monitor are
shown in Figure 1. The instrumentation is enclosed in a
corrosion resistant polypropylene carrying case. The
monitor system includes the instrument case, 10 feet of
1/8" ID x 1/4" OD tubing with fittings, a cylinder of 10 ppm
(parts per million) test gas, calibration connector that
includes the connector valve, tubing, and humidifier.
1.5 Operating Principles
1.5.1 The CMS monitor samples respiratory air from a
breathing-air source. This enables one monitor to detect
CO and other toxic gases in the entire breathing air
system, not just for one respirator. The air to the
respirator does not actually pass through the monitor.
WARNING
When the CMS is correctly installed and
maintained, it monitors the level of CO and
other oxidizable toxic gases in the air supply.
The instrument is a monitoring device; it DOES
NOT remove or convert CO or any other toxic
gases.

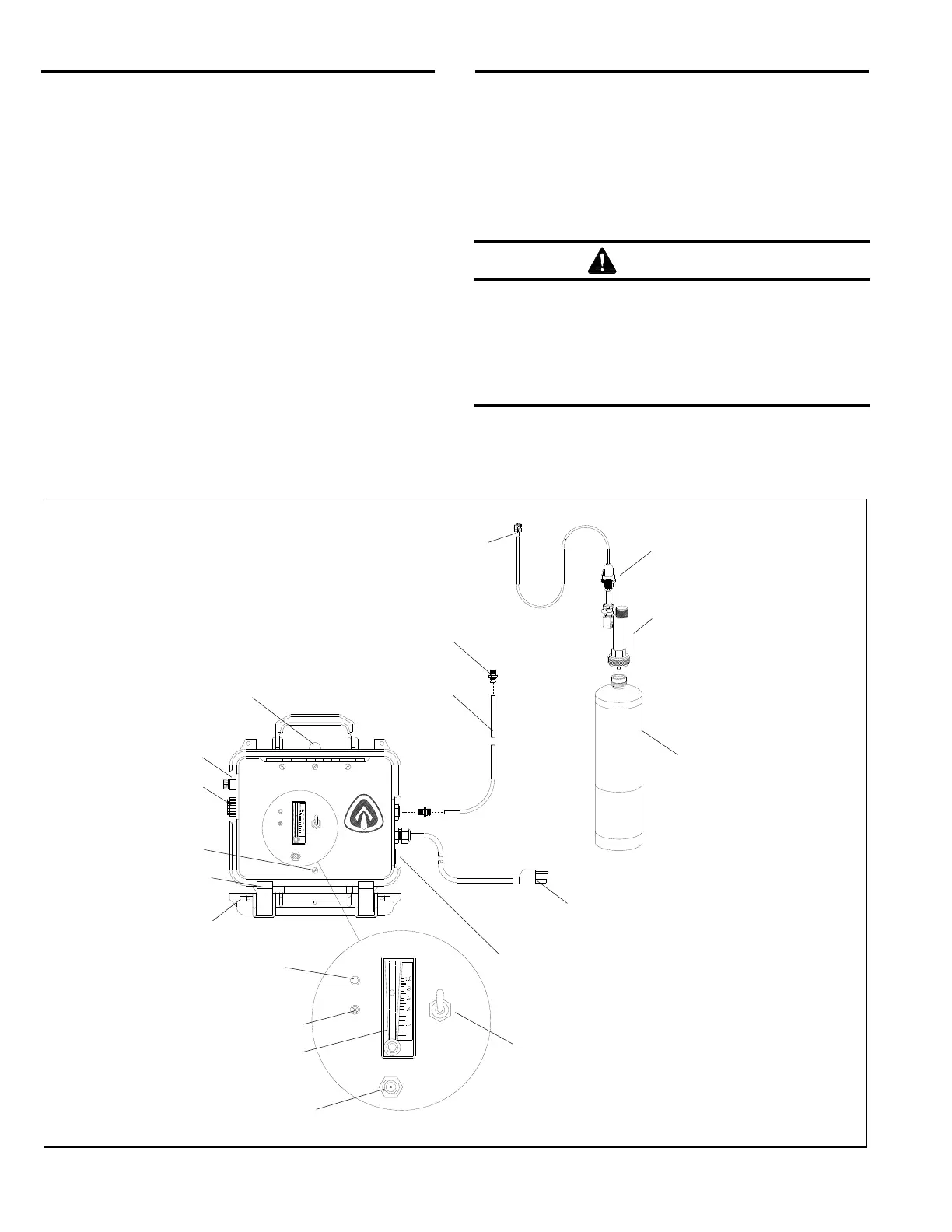

Figure 1
CLEMCO
CM
S
-2
10 ppm CO
or
Impurity-Free
Test Gas
Fuse
Audible Alarm
Case Cover
Test Gas Port
Flow Meter
Cover Screw
Case Cover Latch
Tubing
1/4" OD Tube Fitting (2)
This end connects to air source.
Calibration Connector
with Flow-Control Valve
Humidifier
Run/Calibration Switch
Calibration Adjustment
Calibration Indicator
Exterior Alarm Light
120-Volt Power Cord
Calibration Connector Tube End
Plugged Port
for Optional Remote Alarm
