Mainboard Overview - Top (Connectors)

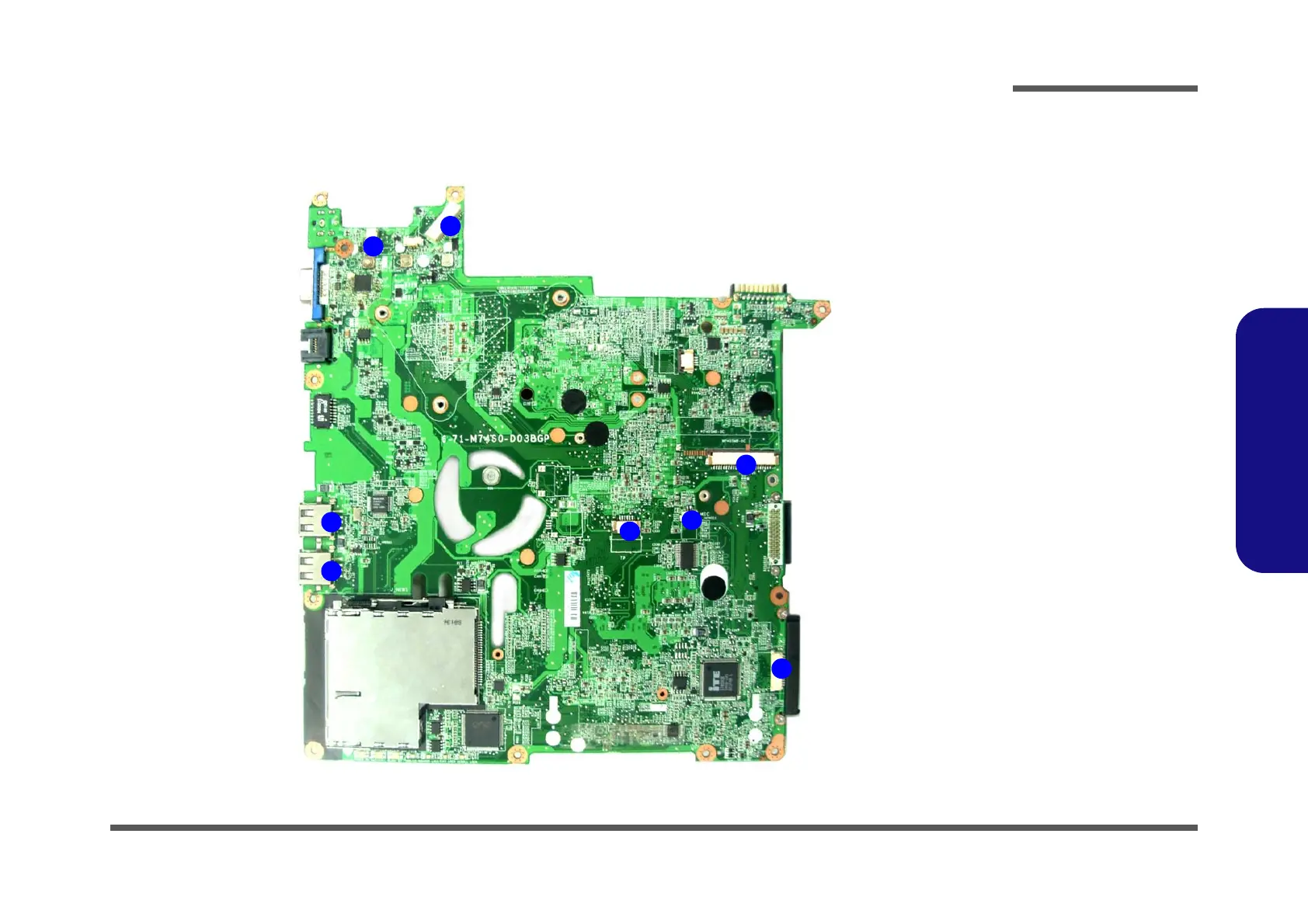

Figure 9
Mainboard Top
Connectors
1. USB Port
2. Inverter
Connector
3. LCD Cable
Connector
4. Keyboard Cable
Connector
5. Audio Board
Connector
6. Microphone
Cable Connector
7. TouchPad Cable
Connector
6
5
7
1
1
4
2
3
