Disassembly
Removing the Hard Disk Drive 2 - 9
2.Disassembly

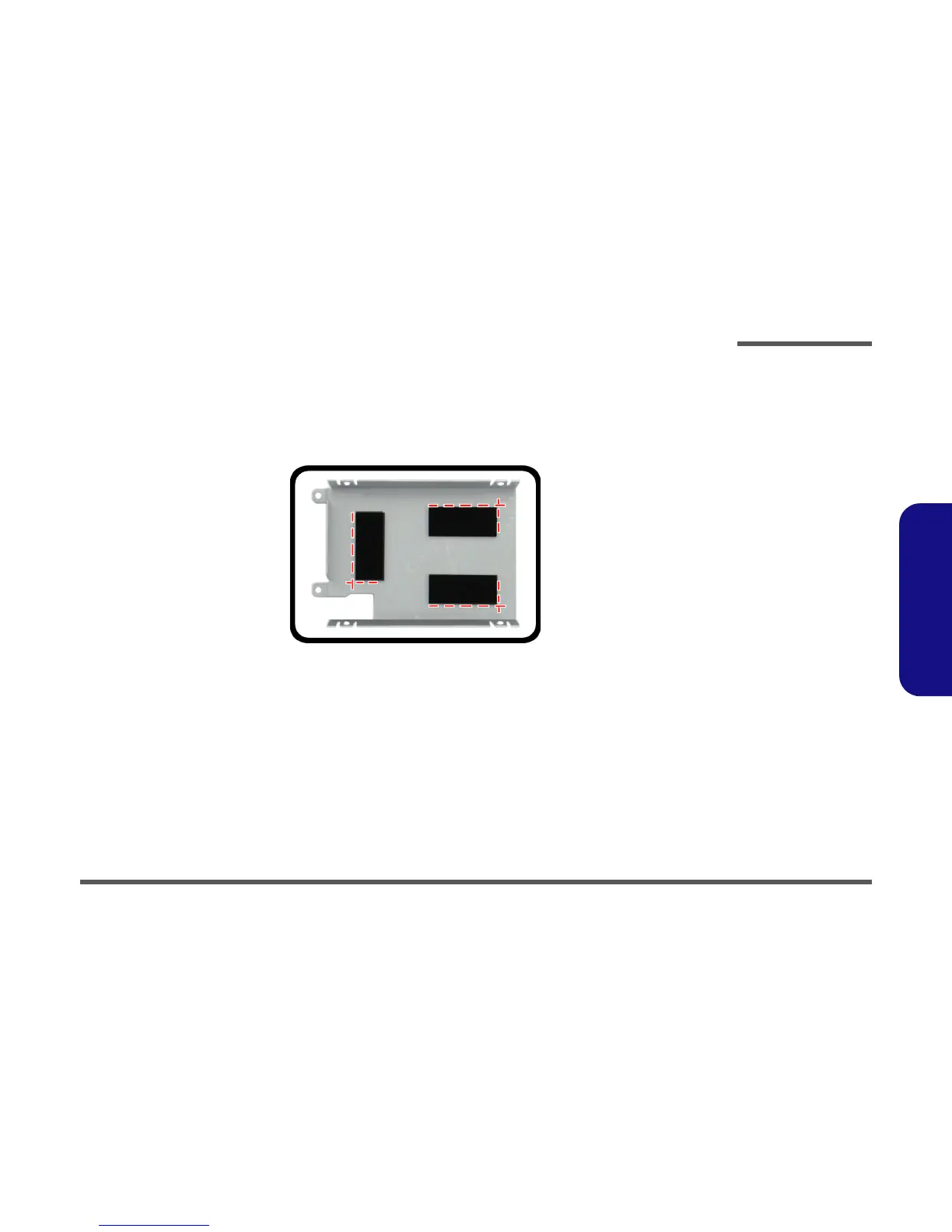

Hard Disk Size Note (Foam Rubber Insert)
Note that the hard disks pictured on these pages are all 9.5mm(H) hard disk drives. In some cases 7mm(H) hard disk
drives will be installed. Also pay attention on the alignment of the hard disk and bracket when tightening the screws.
For more information contact your distributor/supplier, and bear in mind your warranty terms.
• If you are replacing a 9.5mm(H) HDD with a
7mm(H) HDD then insert the foam rubber
insert (as shown above).
• If you are replacing a 7mm(H) HDD with a
9.5mm(H) HDD then remove the foam rub-
ber insert.
