Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction

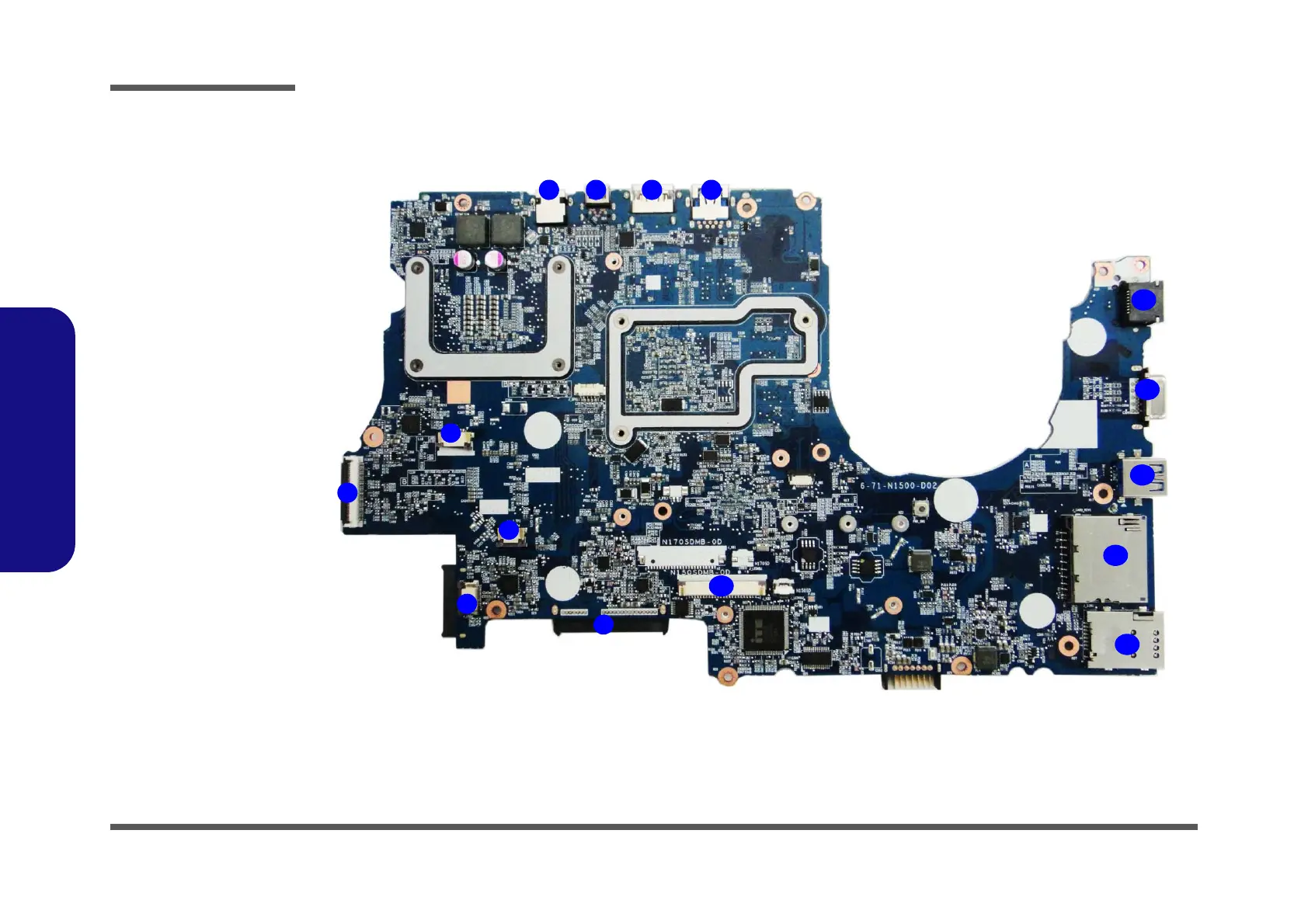

Mainboard Overview - Top (Connectors)
Figure 9
Mainboard Top
Connectors
1. DC-In Jack
2. Mini Display Port
3. HDMI-Out Port
4. Mini Display Port
5. Audio Connector
6. Finger Print
Connector
7. TP Connector
8. LED Connector
9. HDD Connector
10.Keyboard Cable
Connector
11. USIM Card
Reader
12.Multi-in-1 Card
Reader
13.USB 3.0 (USB 3.1
Gen 1) Type C
Port Connector
14.USB 3.0 (USB 3.1
Gen 1) Port
Connector
15.RJ-45 LAN Jack
10
11
9
7
8
6
5
1 3 4
13
2
14
12
15
