Clevo N170RD1 User Manual

Disassembly
Removing the Wireless LAN Module 2 - 15
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5), keyboard (page 2 - 6) and bottom case (page 2 - 8).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 11a).
3. Carefully disconnect the cables & , and then remove the screw
(Figure 11b)
4. The Wireless LAN module (Figure 11c) will pop-up, and you can remove it from the computer.
1
2
3
4
5
b.
c.
a.
2
3
5
1
5
4

5.Wireless LAN Module
•1 Screw

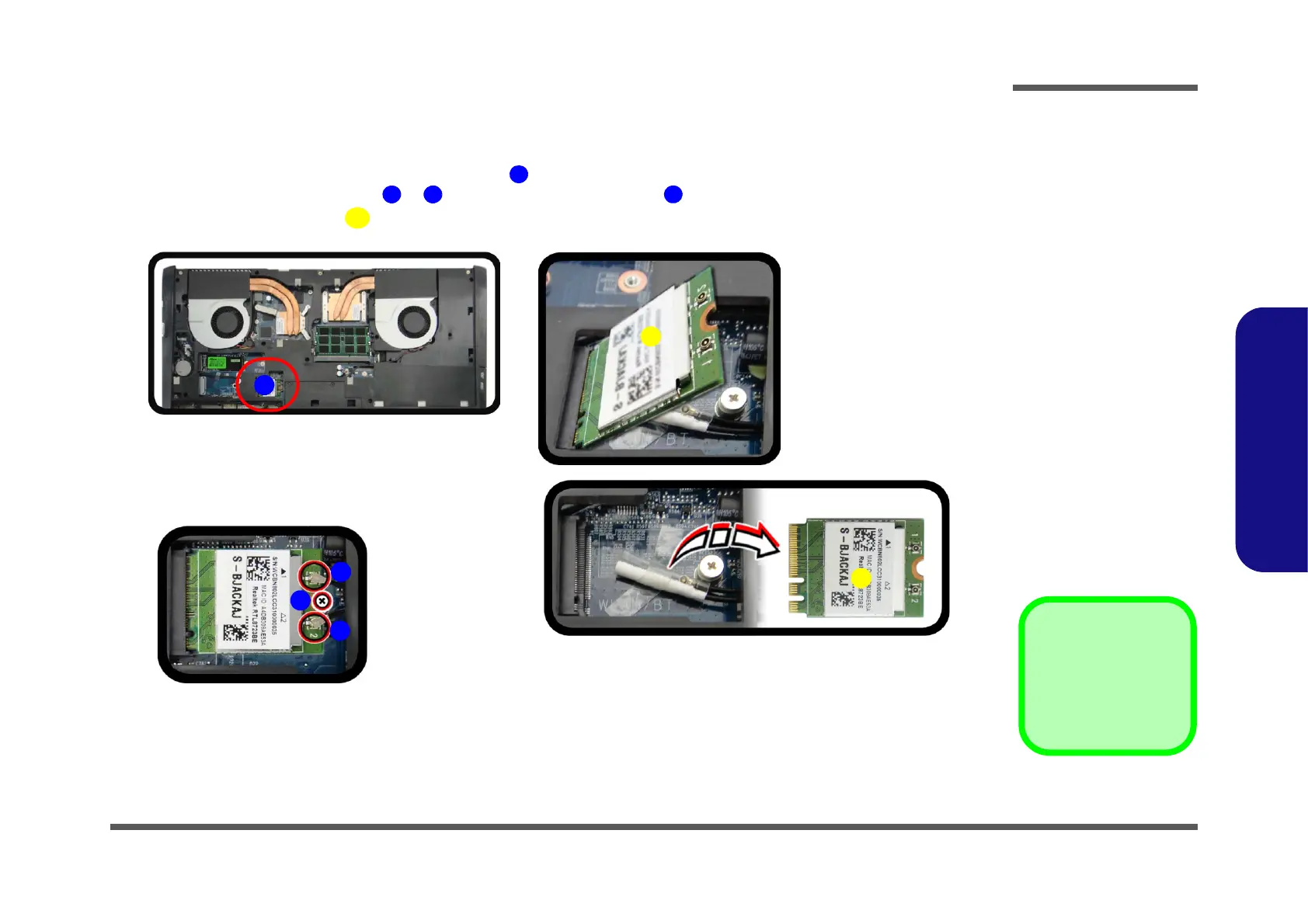

Figure 11
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 11b).
