Clevo N240GU Series - Mainboard Overview - Bottom (Connectors)

Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction
Mainboard Overview - Bottom (Connectors)

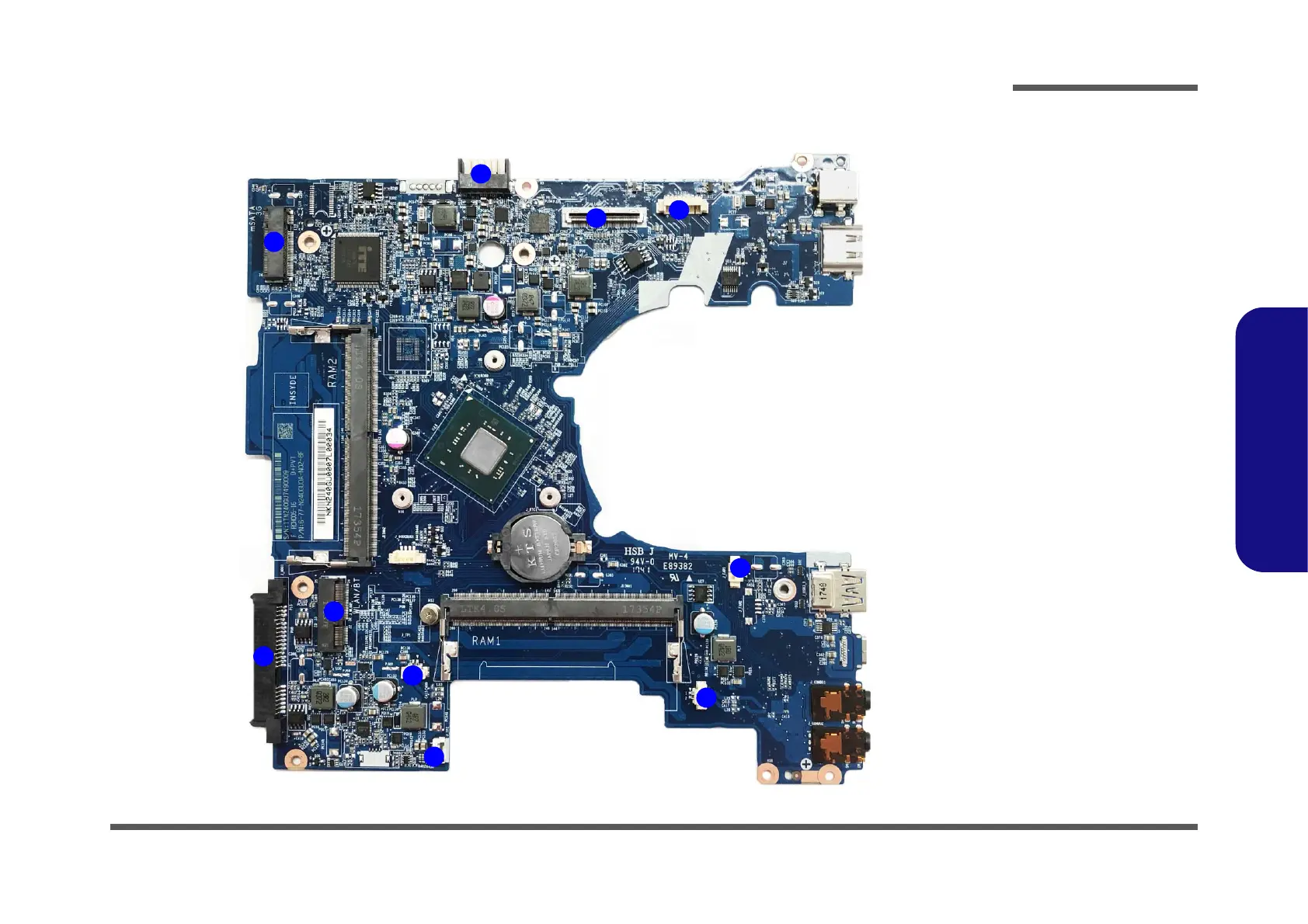

Figure 10
Mainboard Bottom
Connectors
1. M.2 SSD Card
Connector
2. WLAN Connector
3. HDD Connector
4. Touchpad
Connector
5. Speaker Connector
6. Fan Connector
7. CCD Connector
8. LCD Cable
Connector
9. Battery Connector
