Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly

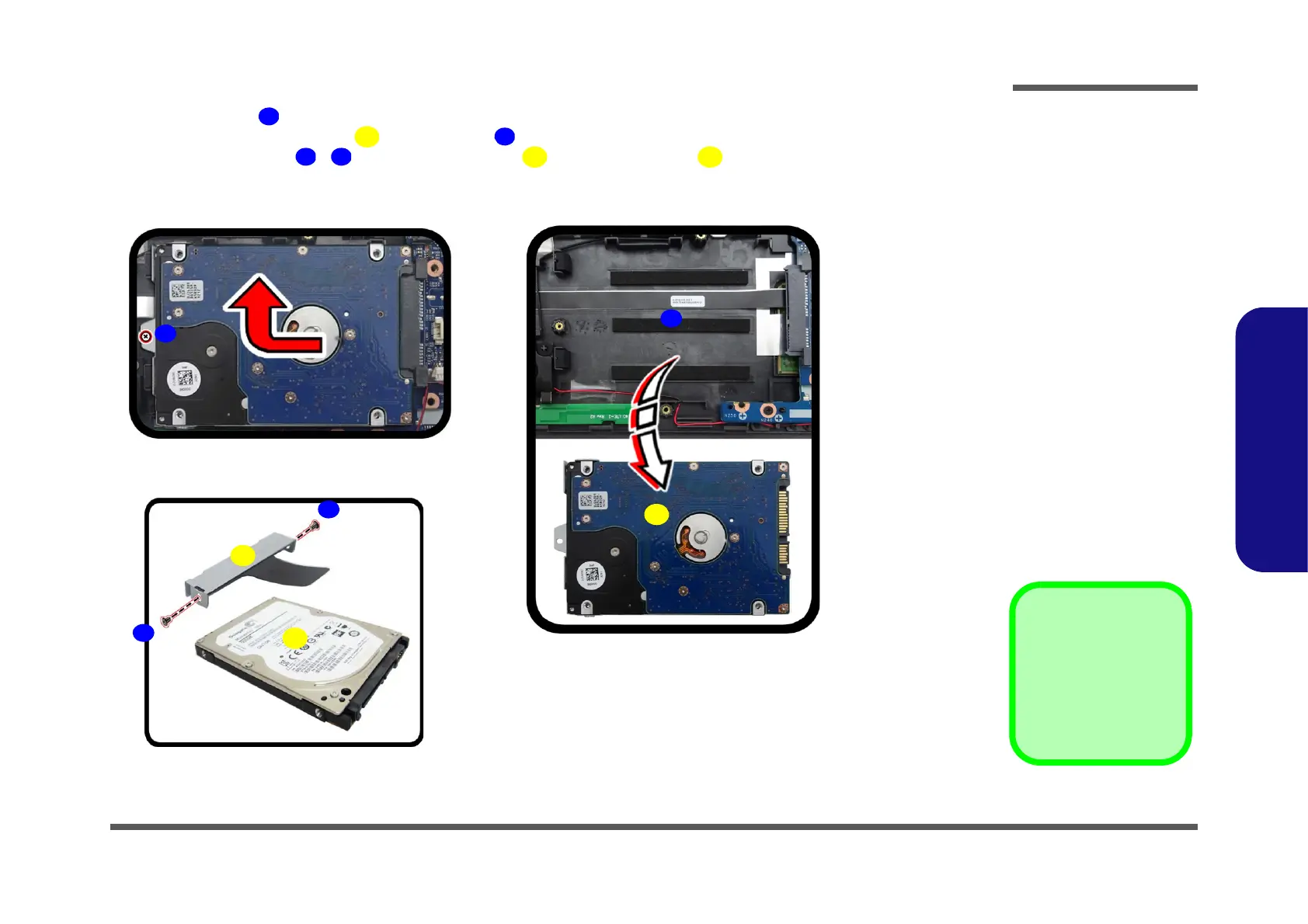

5. Remove screw and slightly lift to pull the hard disk assembly in the direction of arrow (Figure 3d).
6. Lift the hard disk assembly out of the bay (Figure 3e).
7. Remove the screws - and the HDD bracket from the hard disk
(Figure 3f).
8. Reverse the process to install a new hard disk (do not forget to replace all the screws and bottom cover).
20
21
22
23
24
25
26
d.
f.
25
26
e.
23
21
20
22
24
21. HDD Assembly
25. HDD Bracket
26. HDD
•3 Screws
Figure 3
HDD Assembly
Removal (cont’d.)
d. Remove screw and
slightly lift to pull the
HDD assembly in the di-
rection of the arrow.
e. Lift the HDD assembly
out of the bay.
f. Remove the screws and
HDD bracket.
