Disassembly
Removing and Installing the M.2 SSD Module 2 - 15
2.Disassembly
M.2 SSD Installation Procedure

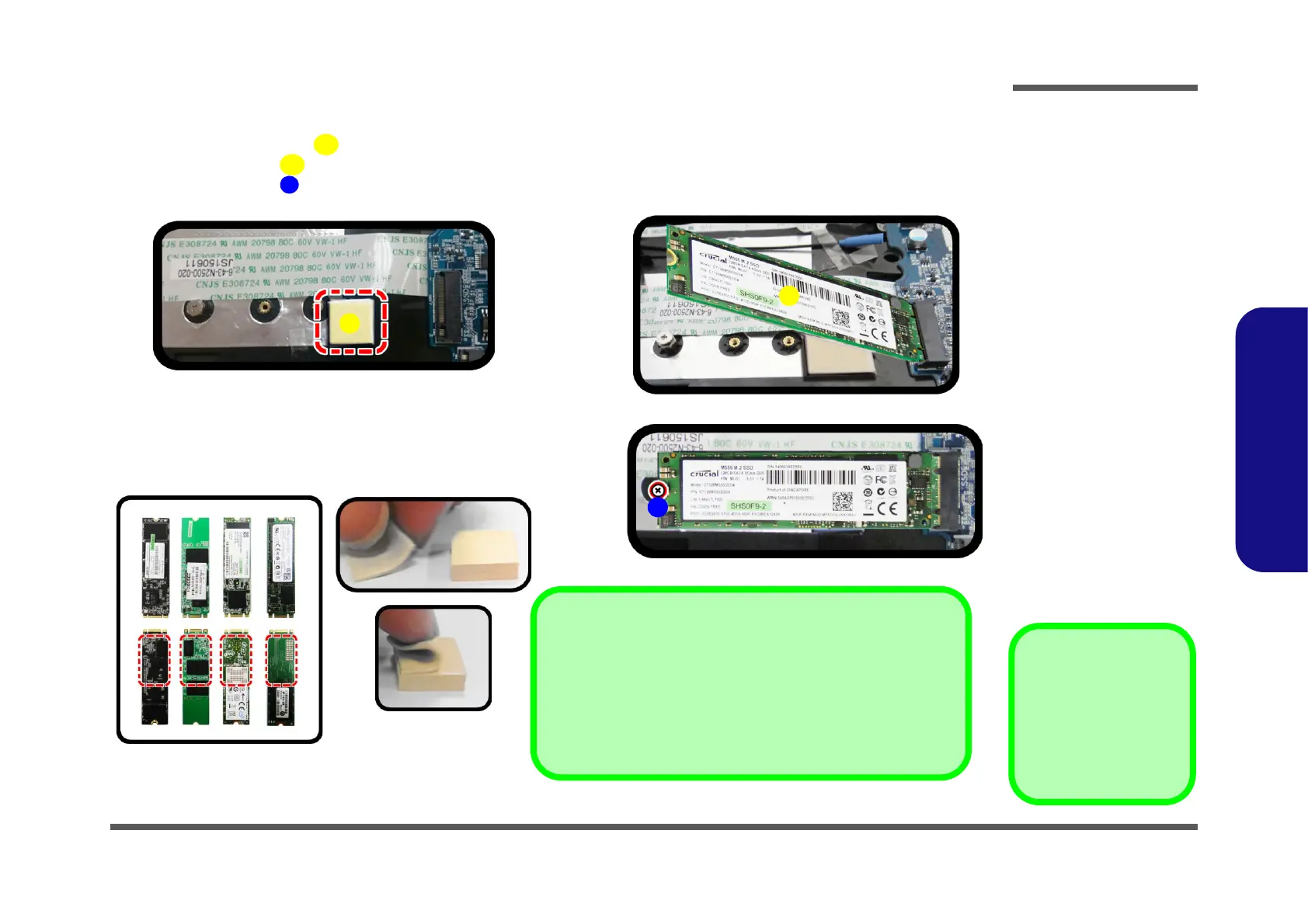

1. Place the thermal pad on the bottom case as shown (Figure 9a).
2. Insert the module in the computer
(Figure 9b).
3. Tighten the screw to secure it in place (Figure 9c).
Figure 9
M.2 SSD Module
Installation
a. Place the thermal pad.
b. Insert the module.
c. Tighten the screw.
a.
3
2
b.
c.
1
Thermal Pad
Be sure to place the thermal pad’s adhesive side down onto the
mainboard surface.
The thermal pad‘s thickness differ for different M.2 SSD module:
• For module with chip, use 2.5mm thick thermal pad.
• For module without chip, use 3.5mm thick thermal pad.
1. Thermal Pad
2. M.2 SSD Module
•1 Screw
To Next Page
