Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction
Mainboard Overview - Top (Connectors)

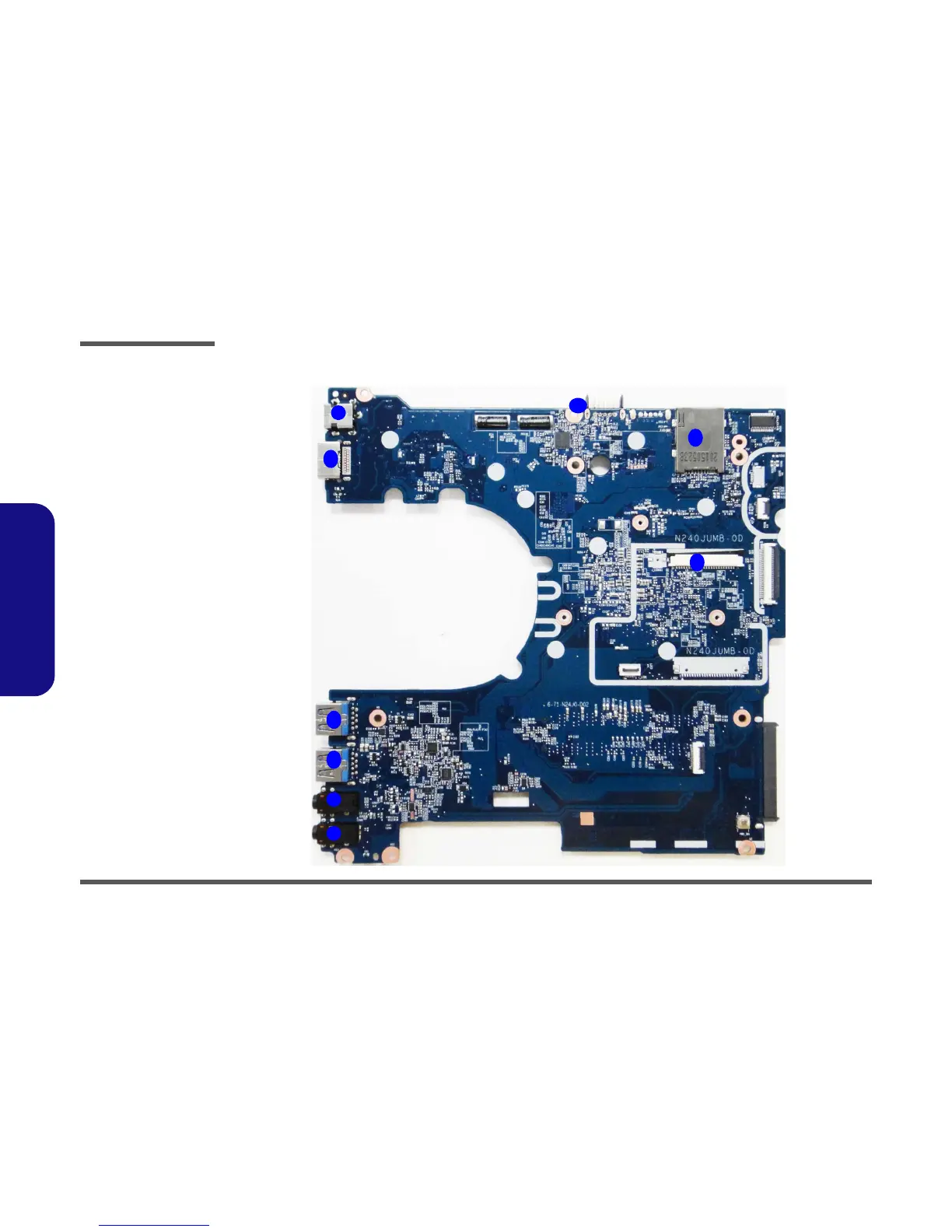

Figure 9
Mainboard Top
Connectors
1. DC-In Jack
2. HDMI-Out Port
3. USB Ports 3.0
4. Microphone-In
Jack
5. Headphone-Out
Jack
6. SIM Card Reader
7. Keyboard Cable
Connector
11
1
2
4
3
7
5
3
6
