Clevo NH55EDQ - Mainboard Overview - Bottom (Key Parts)

1
2
3
4
5
6
6

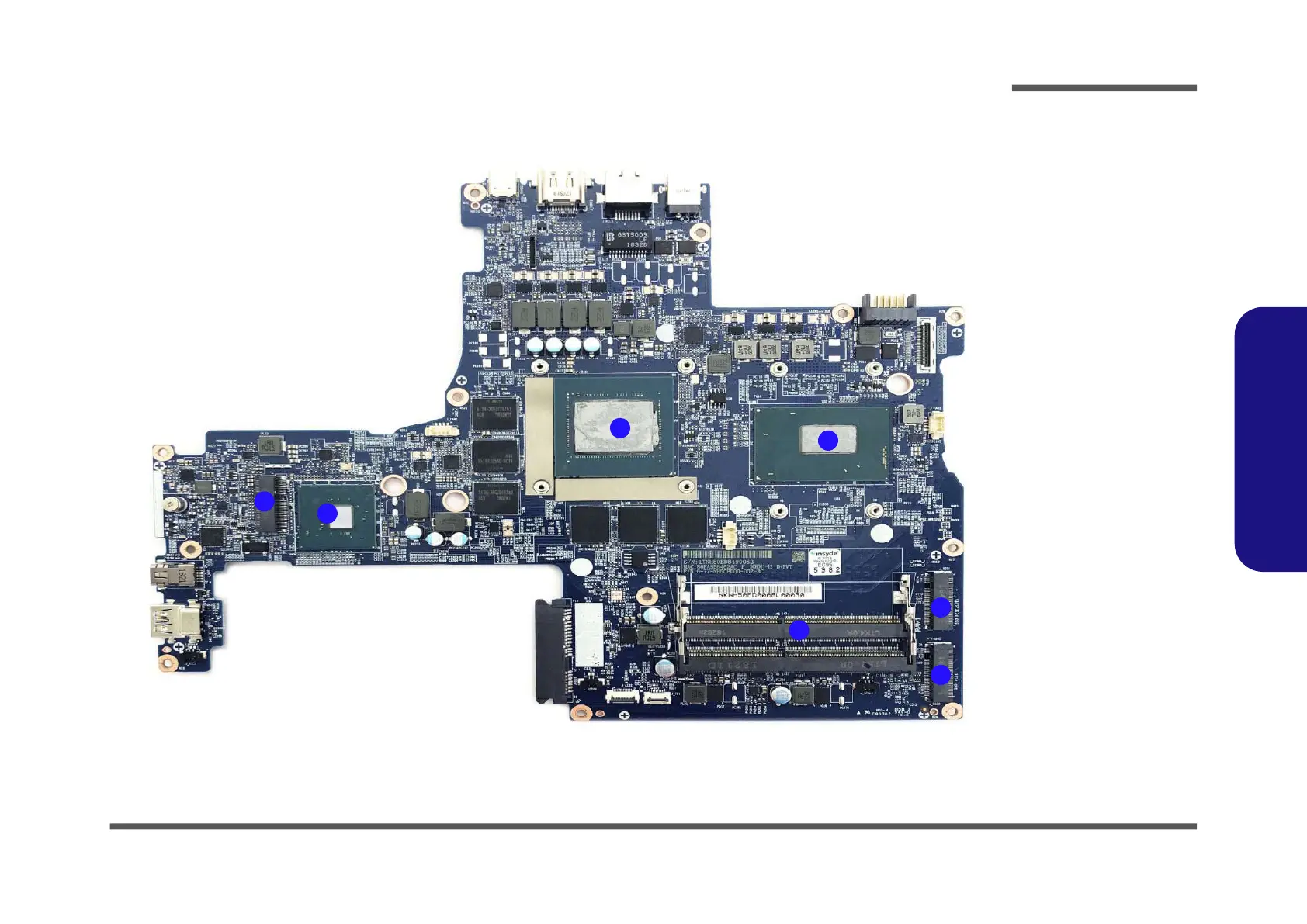

Figure 8
Mainboard Bottom
Key Parts
1. Mini-Card
Connector (WLAN
Module)
2. PCH
3. GPU
4. CPU
5. Memory Slots
DDR4 SO-DIMM
6. M.2-Card
Connector (SSD
Module)
