Disassembly
2 - 10 Removing the Hard Disk Drive
2.Disassembly
4. Carefully lift and slightly slide the hard disk up.
5. Disconnect the hard disk assembly from the connector (Figure 6c).
6. Remove screws - and bracket from the hard disk (Figure 6d).
7. Reverse the process to install a new hard disk (do not forget to replace the screws).
3
4
5
6
7
8
c.
3
4
d.
7
6
5
8

3. HDD Assembly
7. HDD Bracket
8. HDD
•2 Screws

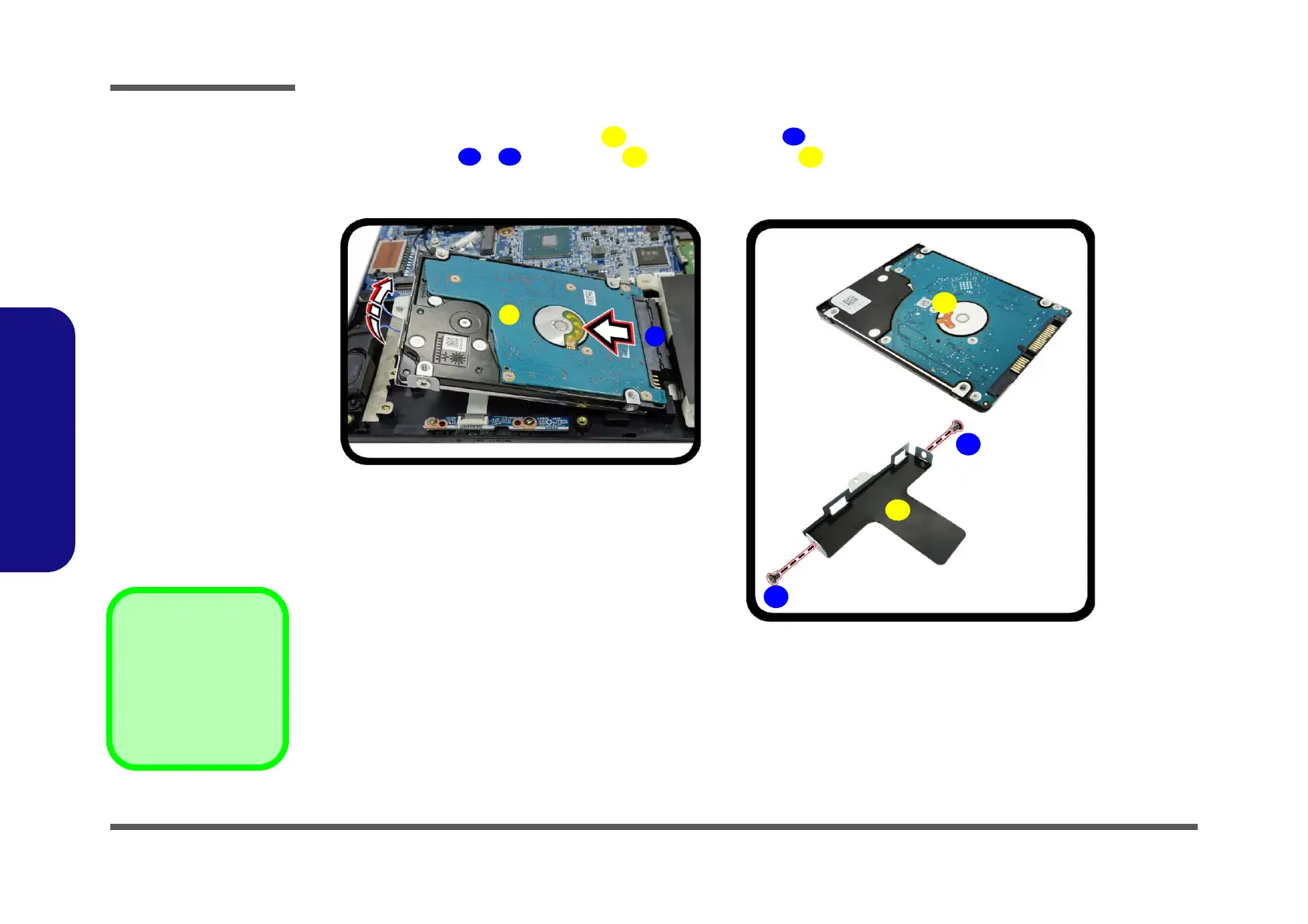

Figure 6
HDD Assembly
Removal (cont’d.)
c. Slide and lift the HDD as-
sembly to disconnect
from the connector.
d. Remove the screws and
bracket from the HDD.
