Clevo W270EGQ - System Map: Front, Left, Right, Rear & Bottom Views (Models B & D)

14
English
System Map: Front, Left, Right, Rear & Bottom Views (Models B
& D)
19
7
Bottom
7
2
1
7
8
4
6
3
Left
Right
5
Front
Rear
10
13
11
14
12
9
16
17
7
7
16
19
18
6
15

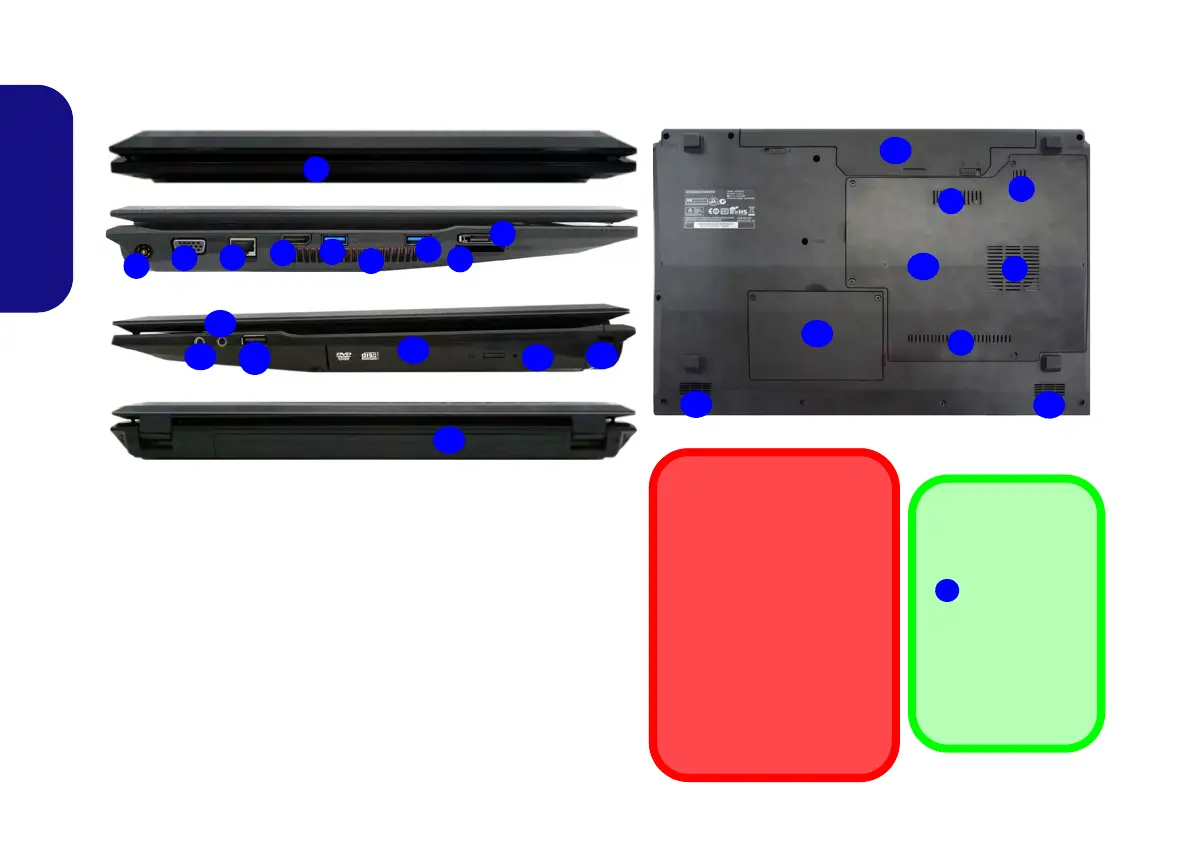

Figure 7
Front, Left, Right, Rear & Bottom Views (Models B & D)
1. LED Power Indicators
2. DC-In Jack
3. External Monitor Port
4. RJ-45 LAN Jack
5. HDMI-Out Port
6. USB 3.0 Ports
7. Vent
8. Multi-in-1 Card Reader
9. e-SATA Port
10. Microphone-In Jack
11. Headphone-Out Jack
12. USB 2.0 Port
13. Optical Device Drive Bay
14. Emergency Eject Hole
15. Security Lock Slot
16. Battery
17. Component Bay Cover
18. Hard Disk Bay Cover
19. Speakers

USB 3.0 Port
The USB 3.0 ports
are colored
blue. USB 3.0 will
transfer data much
faster than USB
2.0, and is back-
wards-compatible
with USB 2.0.
6

CPU
The CPU is not a user ser-
viceable part. Accessing the
CPU in any way may violate
your warranty.
Overheating
To prevent your computer
from overheating make sure
nothing blocks any vent
while the computer is in use.
