Disassembly
Removing the Optical (CD/DVD) Device 2 - 11
2.Disassembly
6. Carefully pry the bezel off the optical device at point (Figure 7e).
7. Separate the bezel and the optical device.
8. Reverse the process to attach the front bezel with the new optical device at point (Figure 7g).
9. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
screw holes should line up).
10. Replace the bay cover by pushing it at point
until the cover and case indicator are aligned, then tighten the
screws.
11. Restart the computer to allow it to automatically detect the new device.
9
8
9
9
10
11

7. Optical Device
•1 Screw
g.
h.
9
e.
f.
8
9
10
11
Figure 7
Optical Device
Removal (cont’d.)

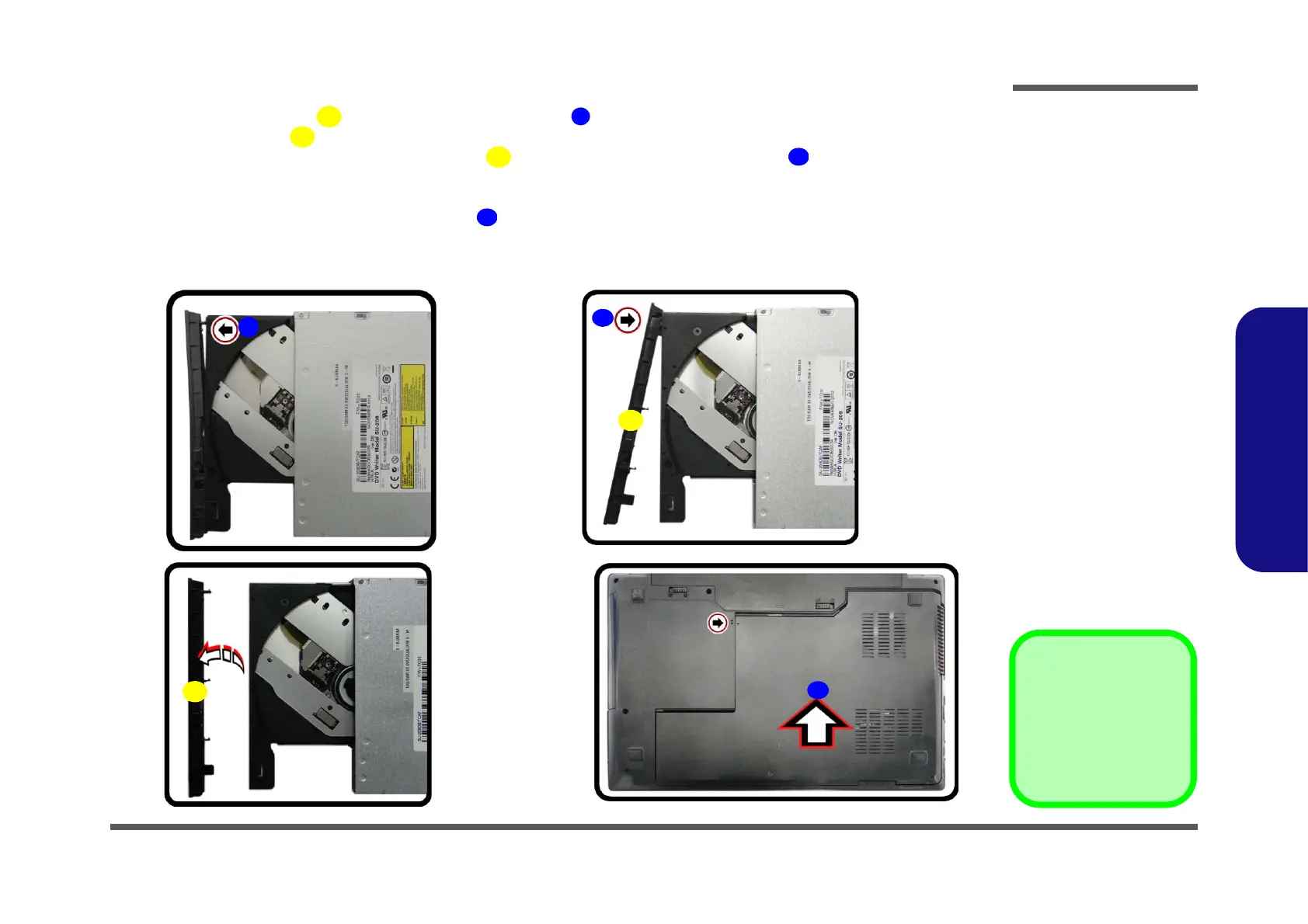

e. Pry the bezel off the opti-
cal device.
f. Separate the bezel and
optical device
g. Install the front bezel.
h. Replace the component
bay cover and screws.
