Disassembly
2 - 20 Removing the CCD
2.Disassembly
5. Disconnect the cable .
6. Remove the CCD module (Figure 16f).
7. Reverse the process to install a new CCD module.
6
7
e.
d.
7
6
7. CCD Module
Figure 16

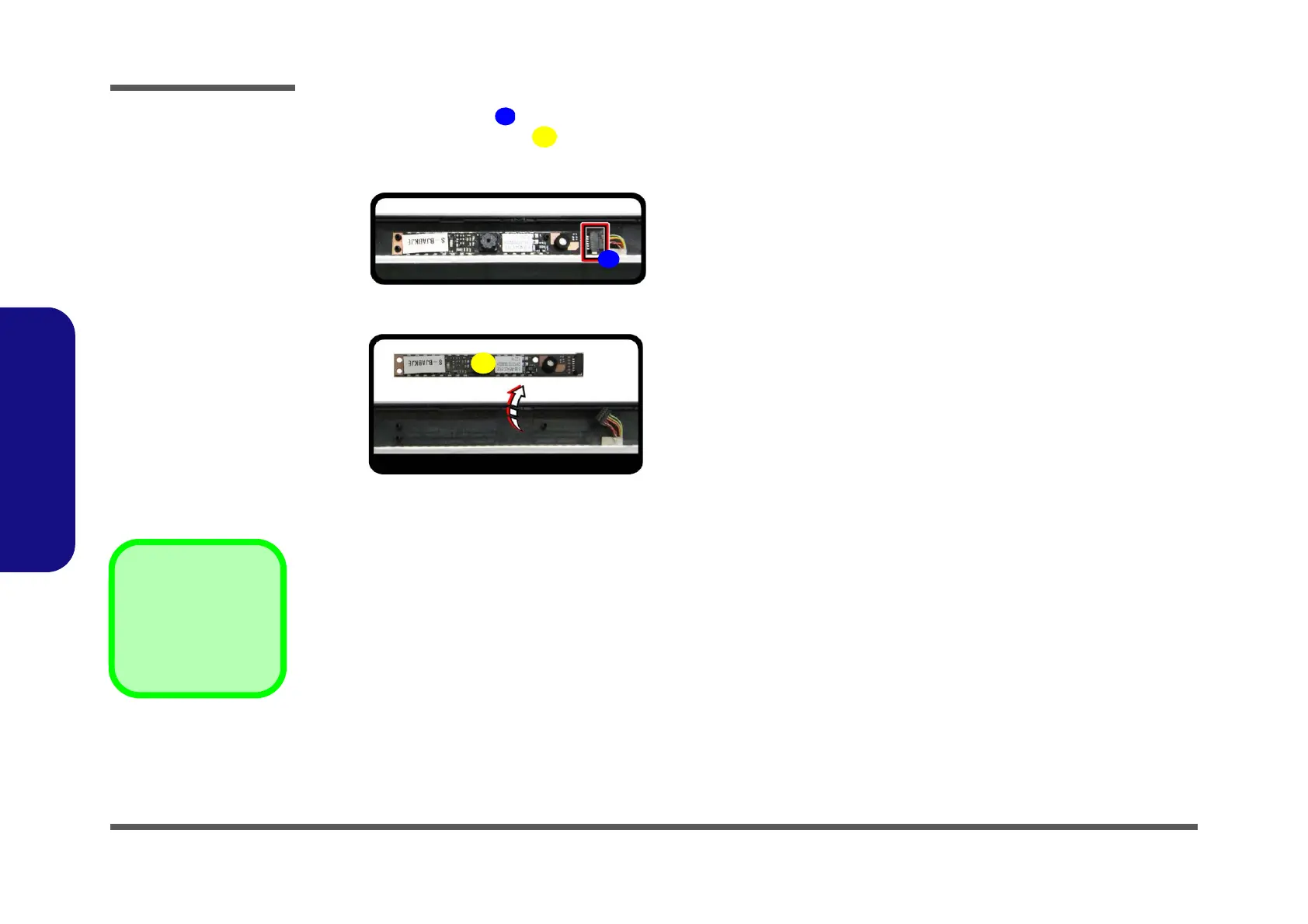

CCD Removal
(cont’d)
d. Disconnect the cable.
e. Remove the CCD mod-
ule.
