Clevo W950TU - Mainboard Overview - Bottom (Connectors)

Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction

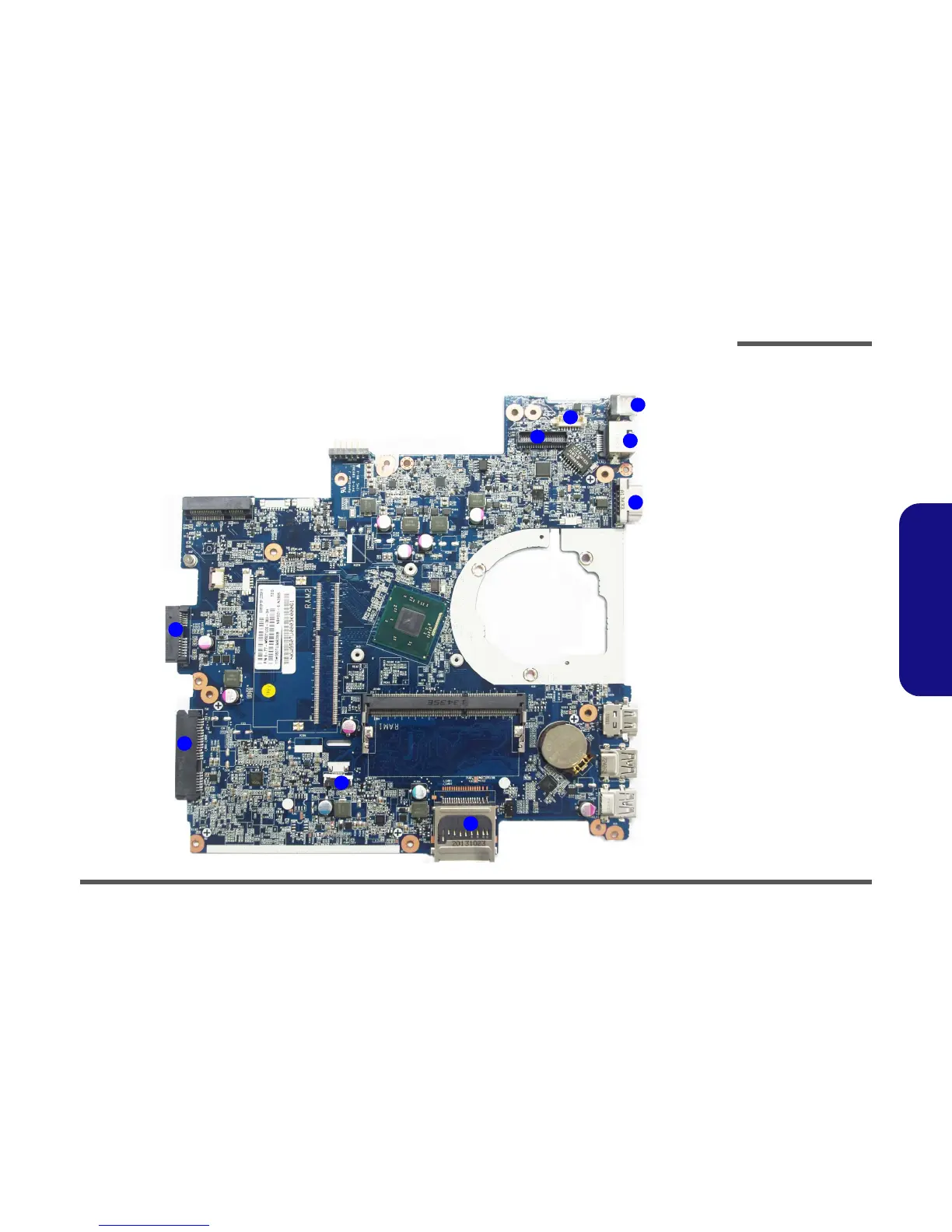

Mainboard Overview - Bottom (Connectors)
Figure 10
Mainboard Bottom
Connectors
1. ODD Connector
2. HDD Connector
3. Multi-in-1 Card
Reader
4. External Monitor
Port
5. RJ-45 LAN Jack
6. DC-In Jack
7. CCD Connector
8. LCD Cable
Connector
9. Touchpad
Connector
