PAGE: 2 OF 3
04
BULLETIN
BRAKE CABLE
REPLACEMENT
3.0
MODEL

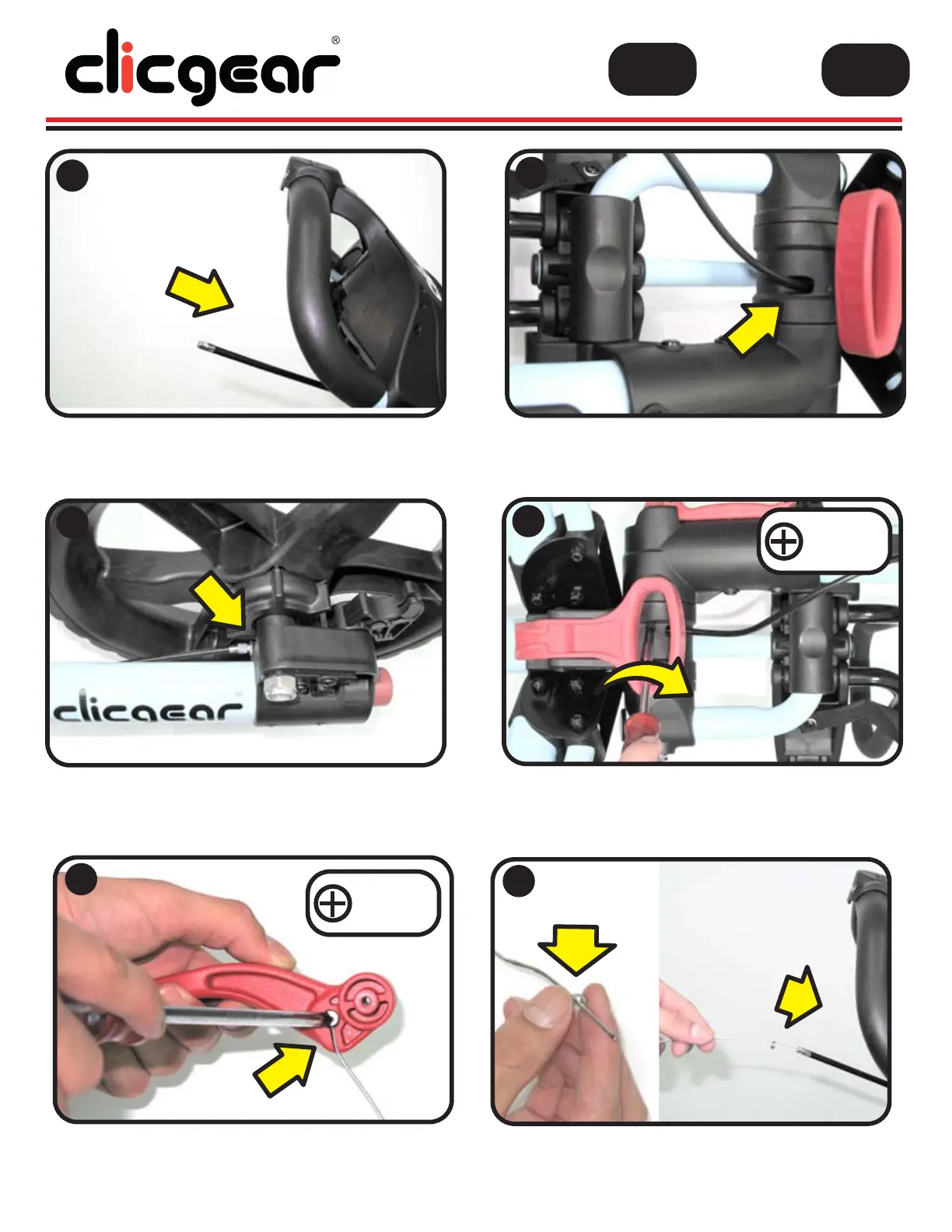

6
Insert the New Brake Cable Sheath to the Cart.
7
The New Brake Cable Sheath should pass through the
bottom hole of Center Lower Hinge.
8
The lower metal end cap of New Brake Cable Sheath
should be inserted into the Cable Adjust Nut and Bolt.
9
Screw the Lock Screw to secure the New Brake Cable
Sheath to the Tube.
CROSS
SCREW
DRIVER
10
Install the New Cable into the Brake Lever. Carefully
seat the Cable Barrel to the Brake Lever using a small
cross screw driver.
CROSS
SCREW
DRIVER
11
Put the Brake Washer to the New Cable from its end,
then insert it to the New Brake Cable Sheath.
To Next Page
