4. Remove the decorative nail (8) from the top left of the cabinet and install the spare top hinge (left) (7) on the
top left of the cabinet with three screws. (Fig. D)
5. Install the spare lower hinge (left) (9) according to the above procedure. (Fig. E)
6. The door opens to 180 degrees. Install the door in the same way as it was removed and fix it so that the door
is aligned.
7. Block the hole at the top right of the cabinet with the spare decorative nail (8).

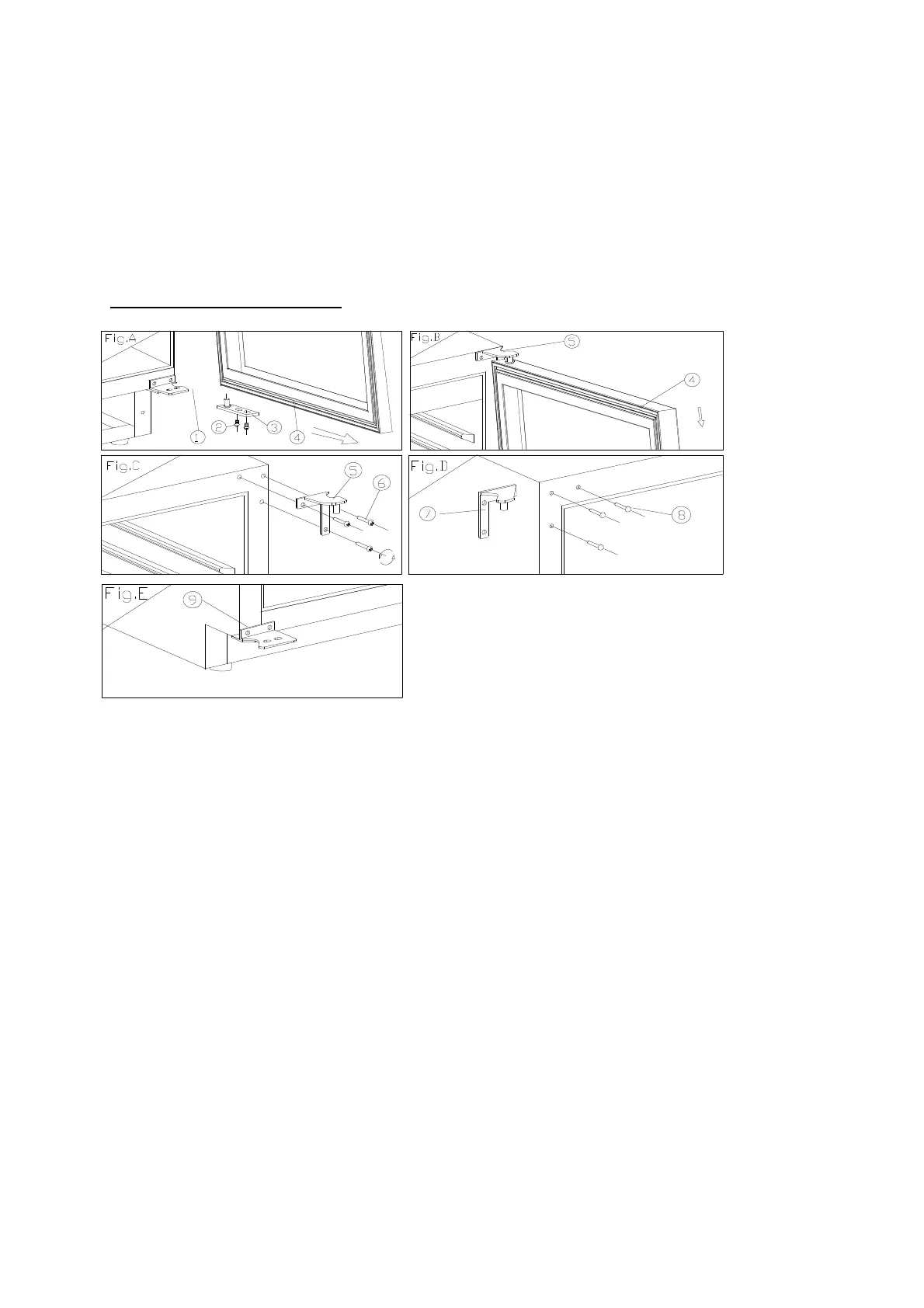

PRO51C/AV53CDZ/AV54SXDZ(-IX):
1. Lower hinge (right) 2. Screws 3 .Door axis
4. Door 5. Top hinge (right) 6. Hinge Screws
7. Top hinge (left) 8. Decorative nail 9. Lower hinge (left)
1. Open the door to 90 degrees, take out two screws (2) from the lower door axis (3), remove the door (4) and
door axis (Fig. A).
2. Position the door (4) safely.
3. Take out three hinge screws (6) from the top hinge (right) (5) and remove it. (Fig. C)
4. Remove the decorative nail (8) from the top left of the cabinet and install the spare top hinge (Left) (7) on the
top left of the cabinet with three screws. (Fig. D)
5. Install the spare lower hinge (left) (9) according to the above procedure. (Fig. E)
6. The door opens to 180 degrees. Install the door in the same way as it was removed and fix it so that the door
is aligned.
7. Block the hole at the top right of the cabinet with the spare decorative nail (8).
