Climadiff CLIMA17 User Manual

31
Caution:
1. Exhaust pipe is 28cm-150cm long (including adapter). We recommend using the minimum
length so as to save energy for you.
2. The length of exhaust pipe is especially designed in accordance with the specification of the
air conditioner. Please do not use other exhaust pipes of different lengths or materials, in such way
failure may be caused.

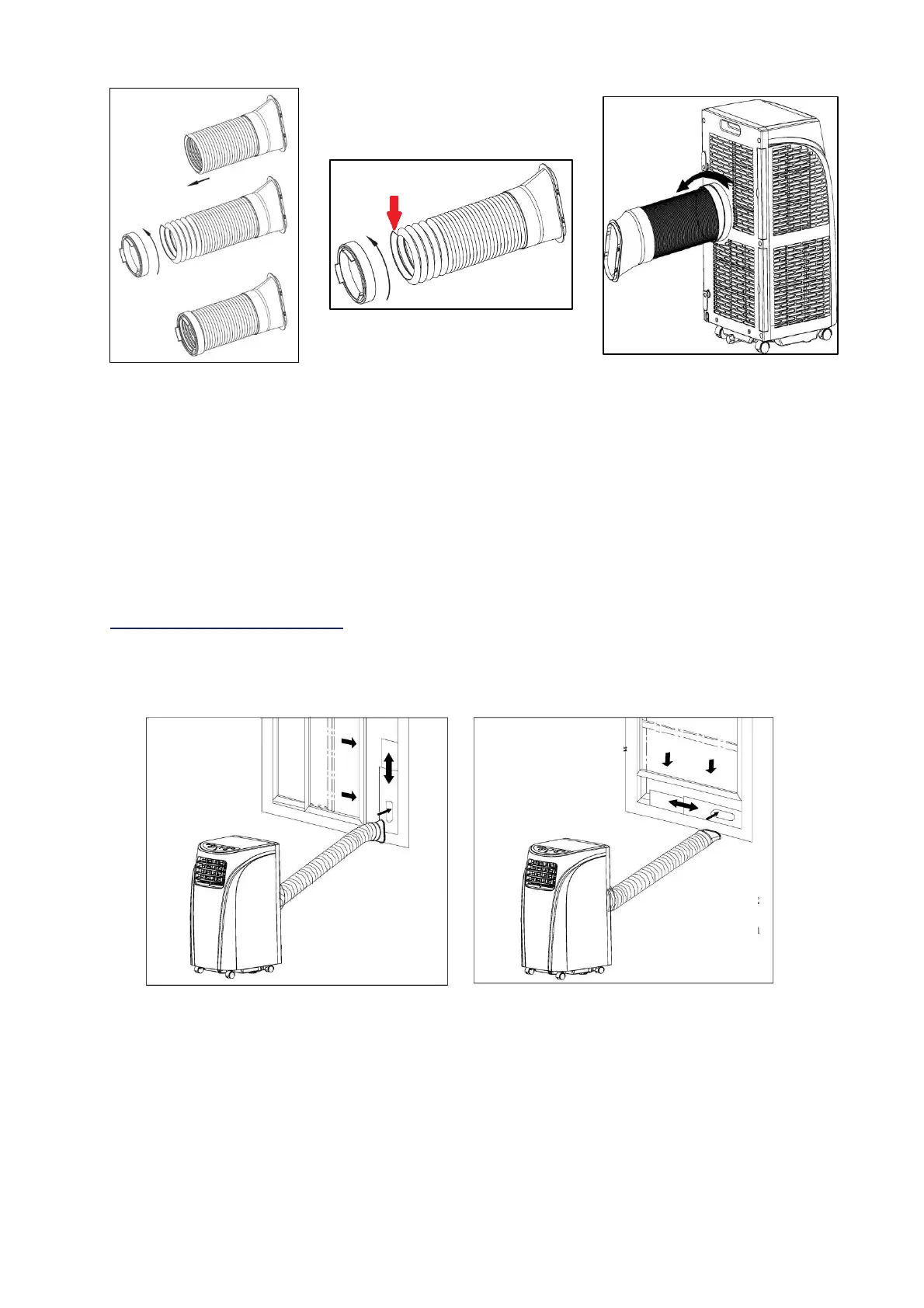

Installation of window sealplate
Design of window sealplate complies with most standard horizontal or vertical windows, and the
installation methods are shown in the schemes here below.
Dimensions of window sealplate: 90 – 130 cm.
Vertical
window
Horizontal
window
Fig. 1a
Fig. 2
Fig. 1b
