Clipper 100 - Belt Cutting Procedures

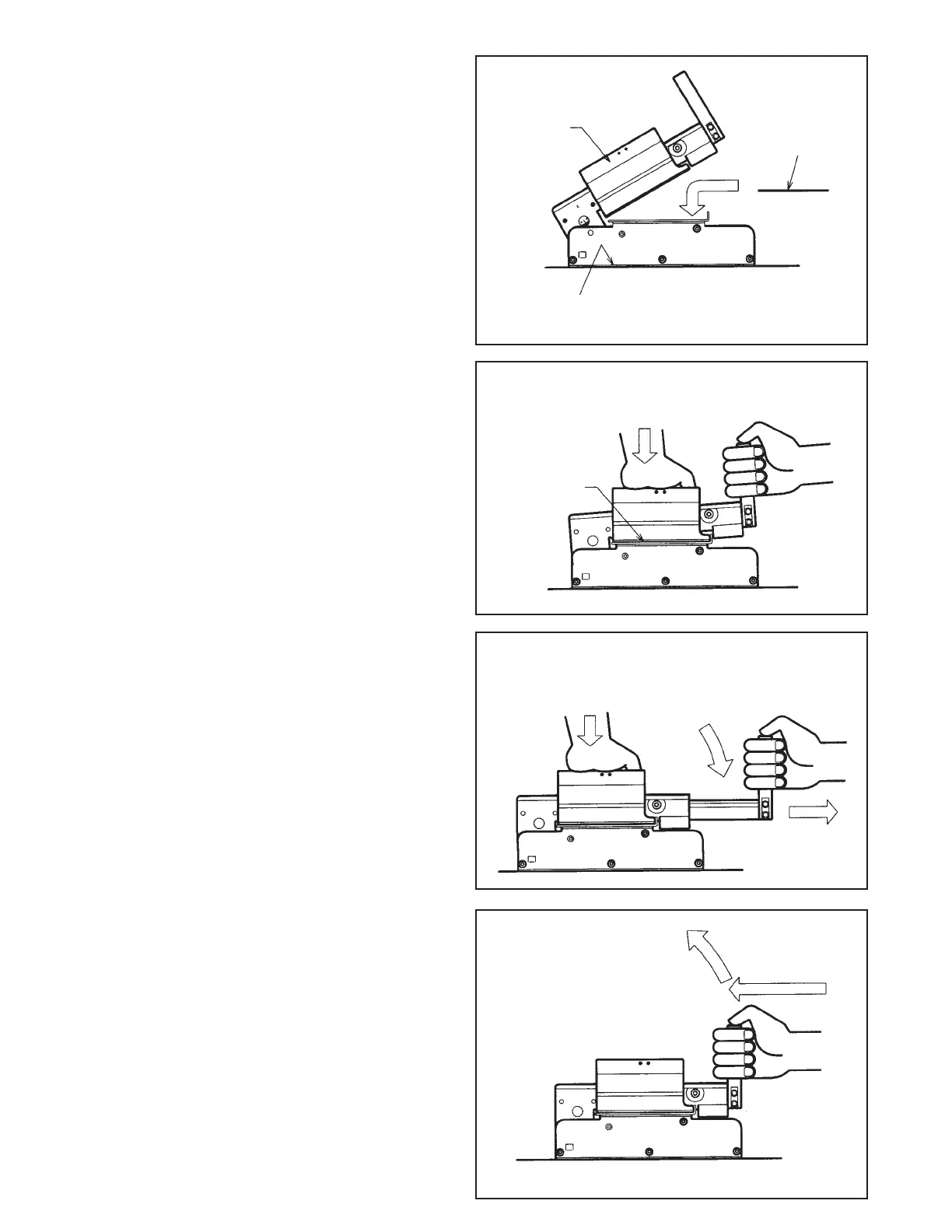

Belt Cutting Procedures:
1. Afxbeltcuttertohorizontalwork
surface, if desired.
Cover
Fixcutteronhorizontal
work surface
Fig. 2
Fig. 1
Place belt on
cutter table
2. Place belt on cutter table and align in
proper location for cut (Fig 1).
3. Apply pressure to top of cover as
shown in Fig. 2.
4. Continue applying pressure to cover
and handle while pulling slide arm to
cut belt.
5. Push handle/slide arm back into the
fully closed position and then allow the
Housing to return to the ‘Up’ position.
Fig. 3
Fig. 4
Belt
Apply downward
pressure
Apply downward
pressure to handle
when cutting
Slide
Return
Release
