Clipper C13 - Service Parts List

20
Item DESCRIPTION Qty Part No
1 Basic Frame 1 83352
2 Rear axle assy. 1 82784
3 Rear Wheel 2 80991
4 Rear axle 1 82785
5 Front wheel complete 2 82786
6 Bushing Iglidur 20/23/11 4 80999
7 Bushing Iglidur (set of 2) 2 80297
8 Screw Feed.Spindle 1 82787
9 Raise-lower screw + key 1 83353
10 Bearing + Screw 1 76670
11 Stop ring A20 1 82789
12 Depth screw locking 1 83354
13 Handwheel + nut 1 76357
14 Handle 1 73428
15 Handwheel + Handle 1 76465
16 Handle Grip 1/2" 2 213633
17 Maneuvering bar cpl. 1 83355
18 Wrench 1"1/2 1 105377
19 Wrench 32mm 1 82910
20 Wrench 17mm 1 72279
21 Water Tank support 1 82792
22 Connector for Hose 1 9600017
23 Water cock 1 72357
24 Water tank complete 1 83357
25 Stopper for Water tank 1 82794
26 Blade shaft assy. 1 83358
27 Nut blade shaft right side
(left threaded)
1 227156
28 Loose collar 2 227247
29 Nut blade shaft left side
(right threaded)
1 227191
30 Inside collar right side
(left threaded)
1 227159
31 Bearing for blade shaft 2 72474
32 Inside collar left side
(right threaded)
1 227190
33 Blade shaft 1 83421
34 Blade shaft pulley 1 76347
35 Pointer Complete 1 80448
36 Blade guard assy 1 83365
37 Blade guard nut 1 83366
38 Blade guard axle 1 83367
39 Waterdistributor-Y 1 72286
40 Water supply tape 1/2" 1 107859
Item DESCRIPTION Qty Part No
41 Hose coupling 1 227116
42 Blade splash guard 1 82800
43 Motor frame 1 83369
44 Axle motor frame cpl 1 82802
45 Axle motor frame 1 82803
46 Brake complete 1 82804
47 Motor Honda 1 123327
48 Motor pulley compl. 1 81012
49 V-belts XPZ 780 LW
(set of 4)
1 80519
50 Belt guard compl. 1 83371
51 Screws for motor
(Set complete)
1 82814
58 Motor stop switch 1 227115
59 Water hose (set of 2) 1 82998
60 Reduction 1 83218
61 Blade shaft guard 1 83363

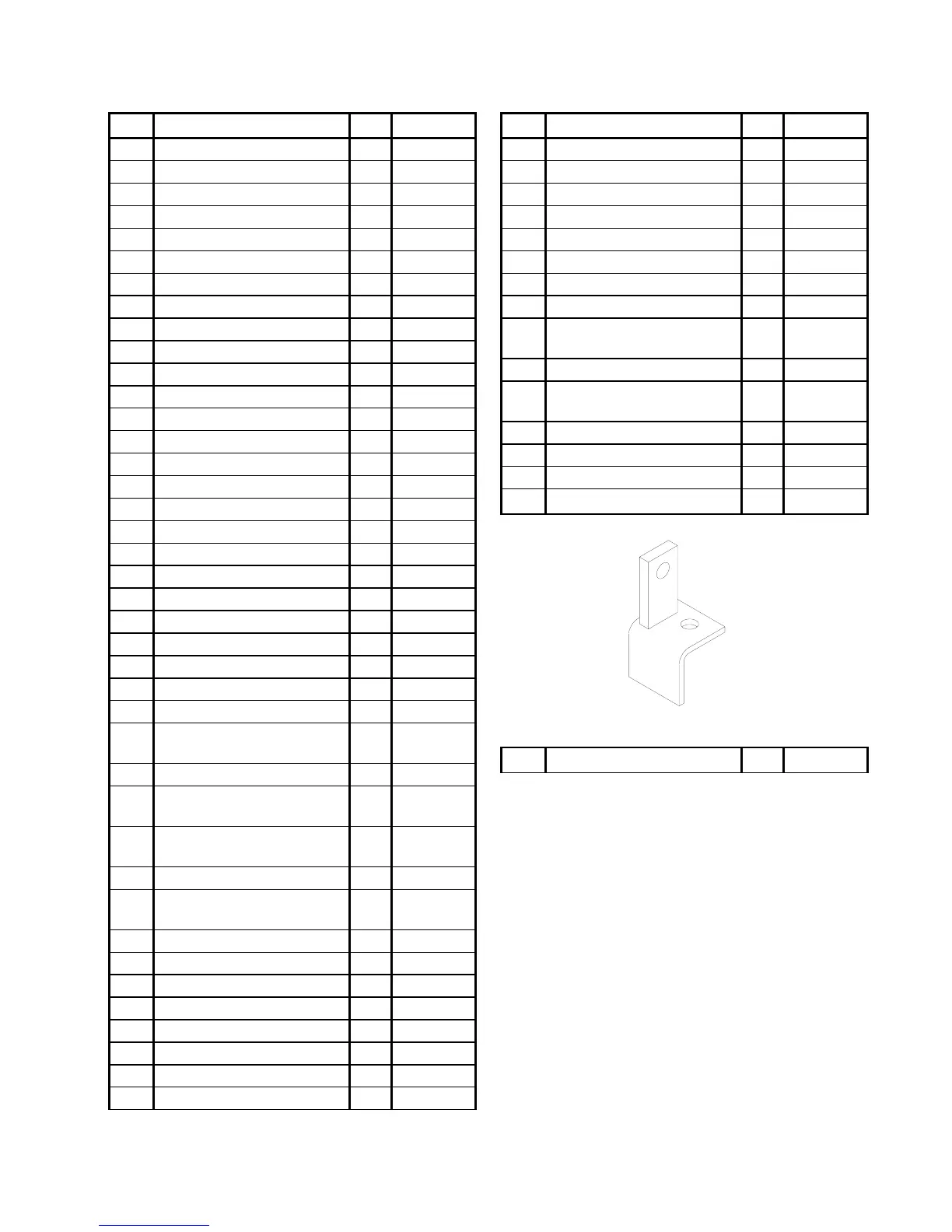

-NA- Pointer Bracket 1 99612-2
