11

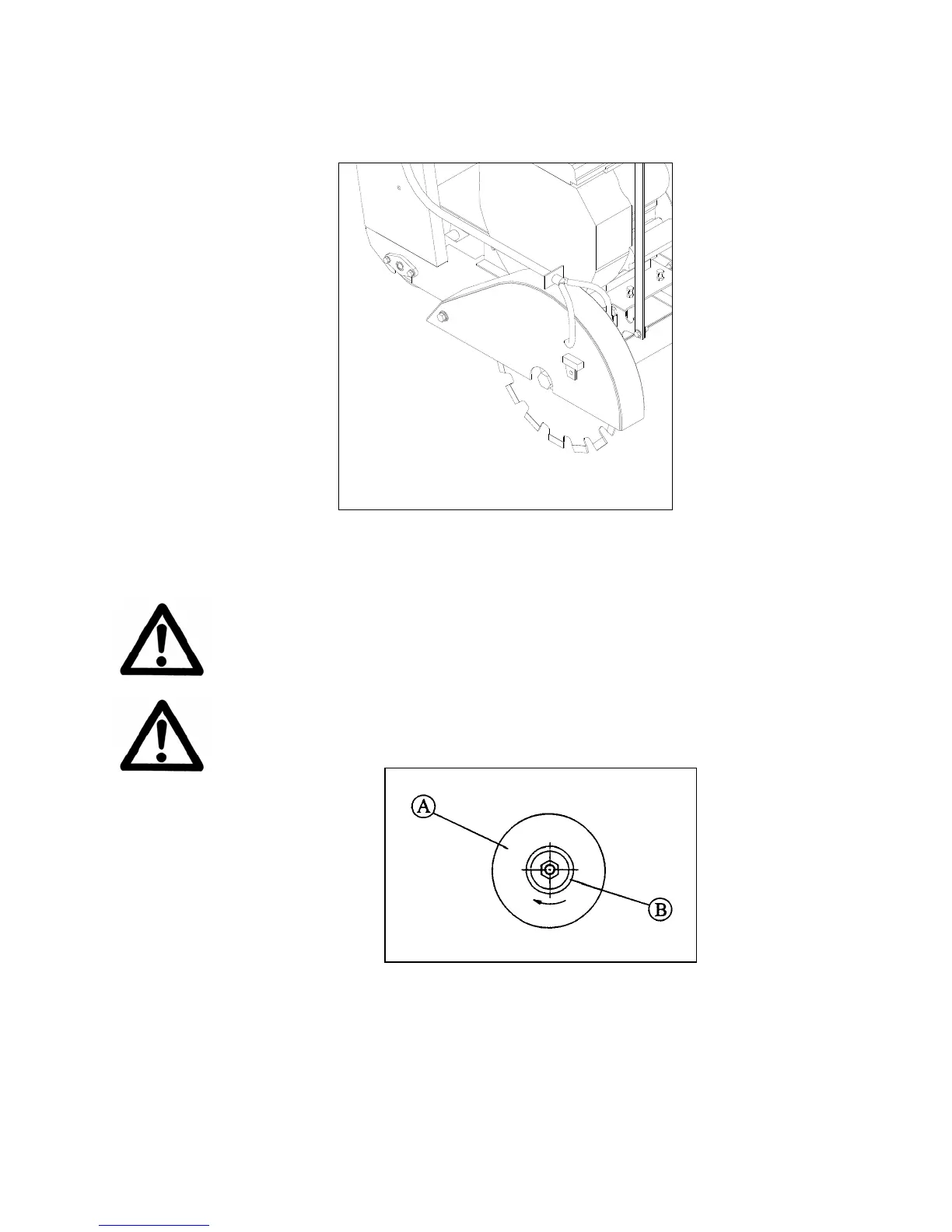

8. Insure that the Blade Guard is lowered and the Blade Guard Locking
pin is secure. Close Blade Guard Nose. See Blade Installed
diagram below.
Blade Installed
9. Reconnect the spark plug.
Observe rotation arrow on blade and do not exceed maximum RPM
stamped on blade.
NOTE: Organic bonded blades (A) must have a blotter. The blotter
(B) must extend past the blade collar contact area as shown.
Blades Use Only Norton Clipper Diamond Blades
