CLIVET CAS-41 - DIMENSIONS 61-81

32
11 - TECHNICAL INFORMATION

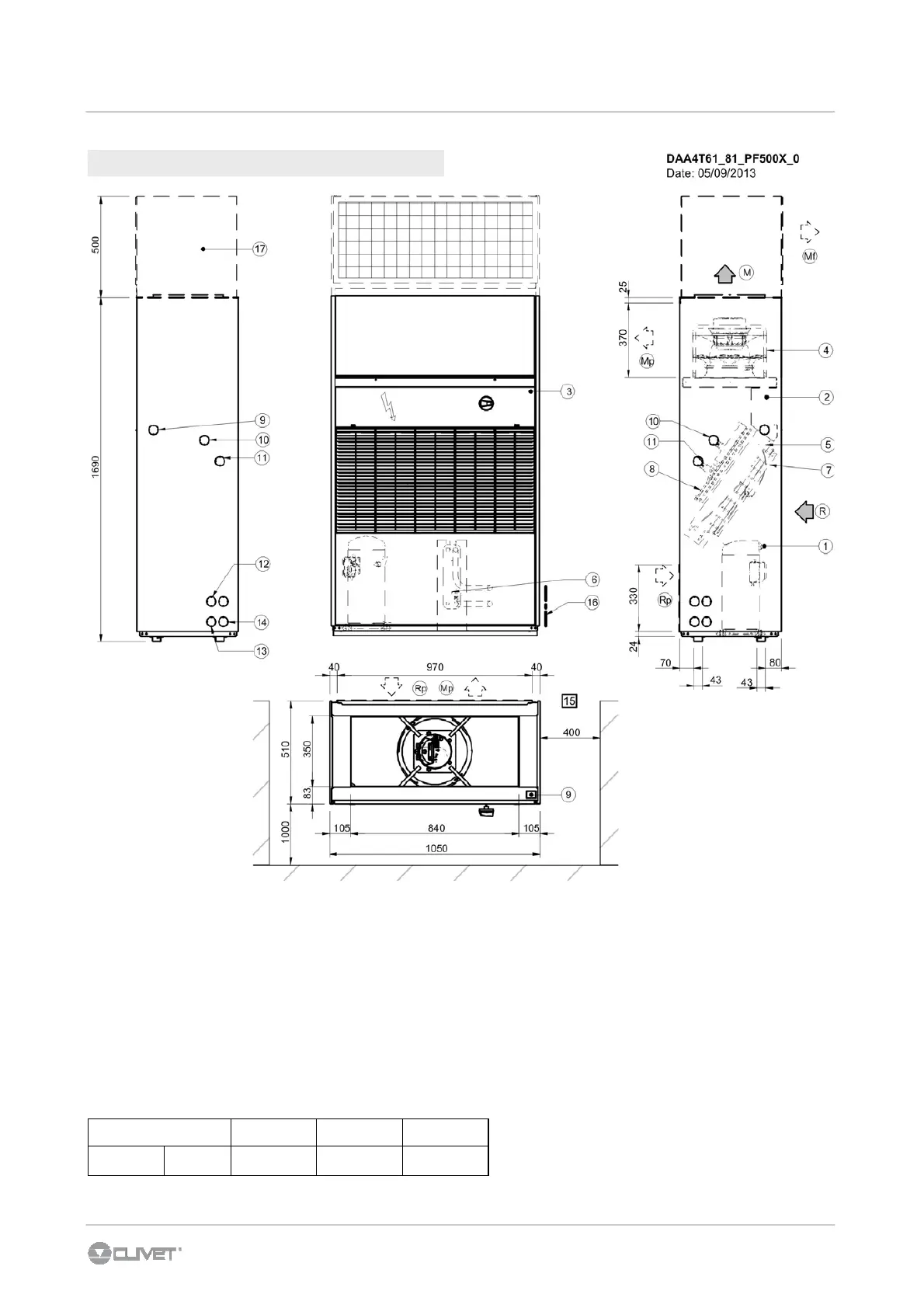

11.2 DIMENSIONS 61 - 81
SIZE 61 71 81
Weigt kg 207 208 210
1. COMPRESSOR
2. ELECTRICAL PANEL
3. ACCESS TO THE ELECTRICAL PANEL
4. SUPPLY FAN
5. DIRECT EXPANSION COIL
6. PLATE EXCHANGER
7. G4 AIR FILTERS
8. WATER COIL (OPTIONAL) OR ELECTRIC HEATERS (OPTIONAL)
9. POWER INPUT
10. WATER LINE OUTPUT OF THE HEATING COIL Ø1" GAS
11. WATER LINE INPUT OF THE HEATING COIL Ø1" GAS
12. PLATE EXCHANGER WATER OUTPUT Ø 1”
13. PATE EXCHANGER WATER INLET Ø 1”
14. CONDENSATE DISCHARGE
15. ONAL CLEARANCES
16. WATER CONNECTION SIDE
17. FRONT OUTLET PLENUM (OPTIONAL)
(R ) AMBIENT AIR INTAKE STANDARD
(M ) AIR SUPPLY STANDARD
(MP ) REAR AIR OUTLET (OPTIONAL)
(MF) FRONT AIR OUTLET (OPTIONAL)
(RP ) REAR AIR INLET (OPTIONAL)
