M42740M4-02 02/10/08
page
14

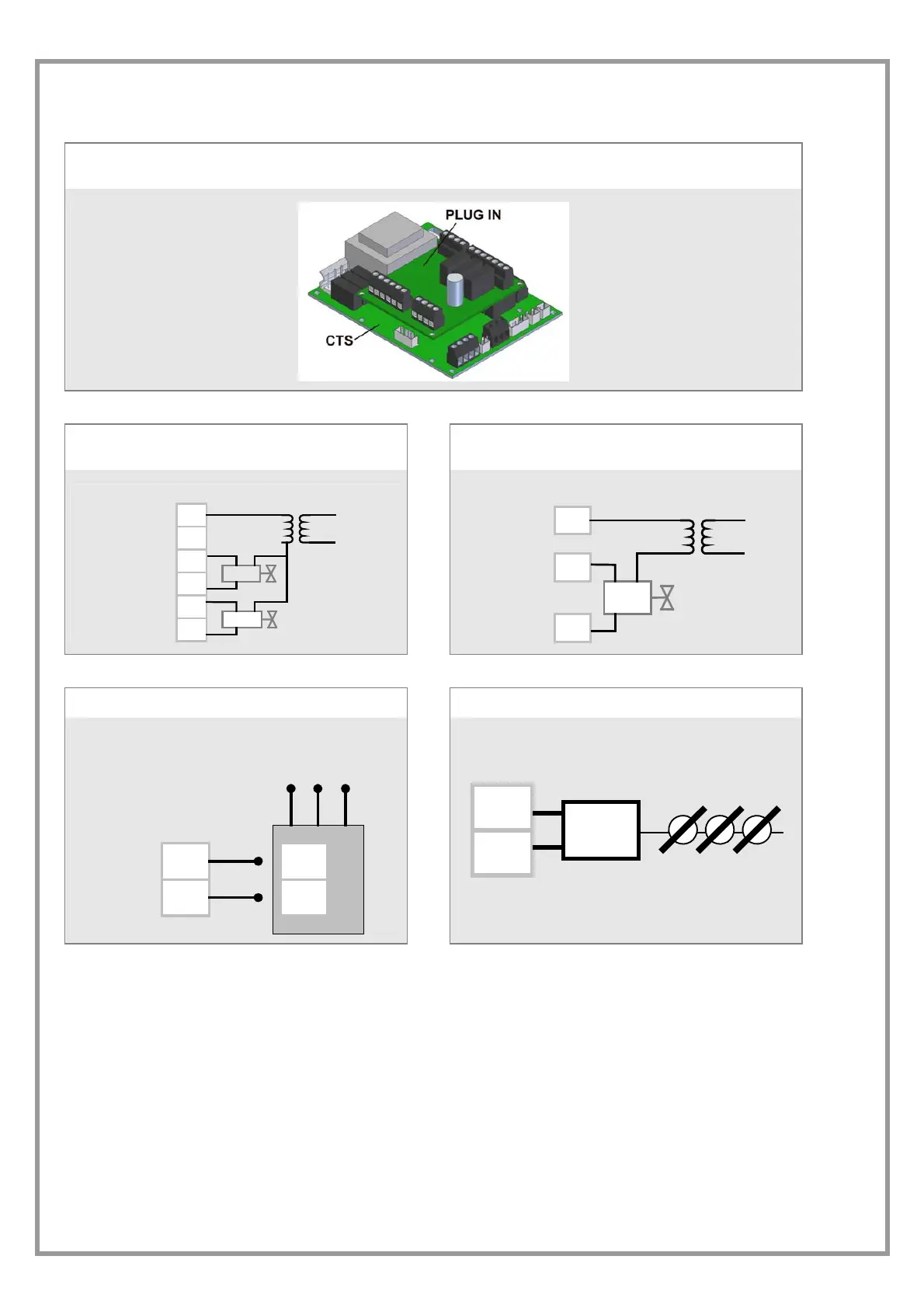

unit configuration :
w
ith CTS CLIVET TERMINA
L SPACE electronics
valv
e control – 4-p
ipe system
components supplied by the customer
valv
e control - 2-pi
pe system
components supplied by the customer
25
24
max 24 V
23
22
21
20
COOL
HEAT
gnd
gnd
gnd
0..10V
0..10V
25
max 24 V
21
20
COOL
HEAT
gnd
gnd
0..10V
heating elements
(optional)
fresh air damper
(optional)
23
22
gnd
0..10V
20
19
400 / 3 / 50
L1 L2 L3
N
L2
SA
E
13
15
Table of Contents
Default Chapter
3
Table of Contents
3
Unit Identification
4
General Warnings
5
Residual Risks
6
Reception
7
Inspection Upon Reception
7
Storage
7
Handling
7
Positioning
8
General
8
Functional Clearances
8
Water Connections
9
General
9
A I R C O N N E C T I O N
10
Features for Ducts for Treated Air
10
E L E C T R I C a L C O N N E C T I O
11
General
11
Standard Unit Electrical Data
11
Connection to the Mains
11
S T a R T - U
17
Preliminary Checks
17
Aeraulic System
17
Water System
17
Electrical System
17
Verify Tensions - Absorptions
17
Remote Input Configurations
18
Setting the Set-Point
18
Air Flow Check
18
C O N T R O
19
R O U T I N E M a I N T E N a N C
29
S E R V I C E S : P a R T S S U B J E C T T O I N T E R V E N T I O
29
Maintenance Inspections
31
Put at Rest
31
T R O U B L E S H O O T I N
32
D E C O M M I S S I O N I N G O F T H E U N I
32
Disconnecting the Unit
32
Dismantling and Disposal
32
General Technical Specifications
35
D I M E N S I O N
35
4
