M42740M4-02 02/10/08 page 15

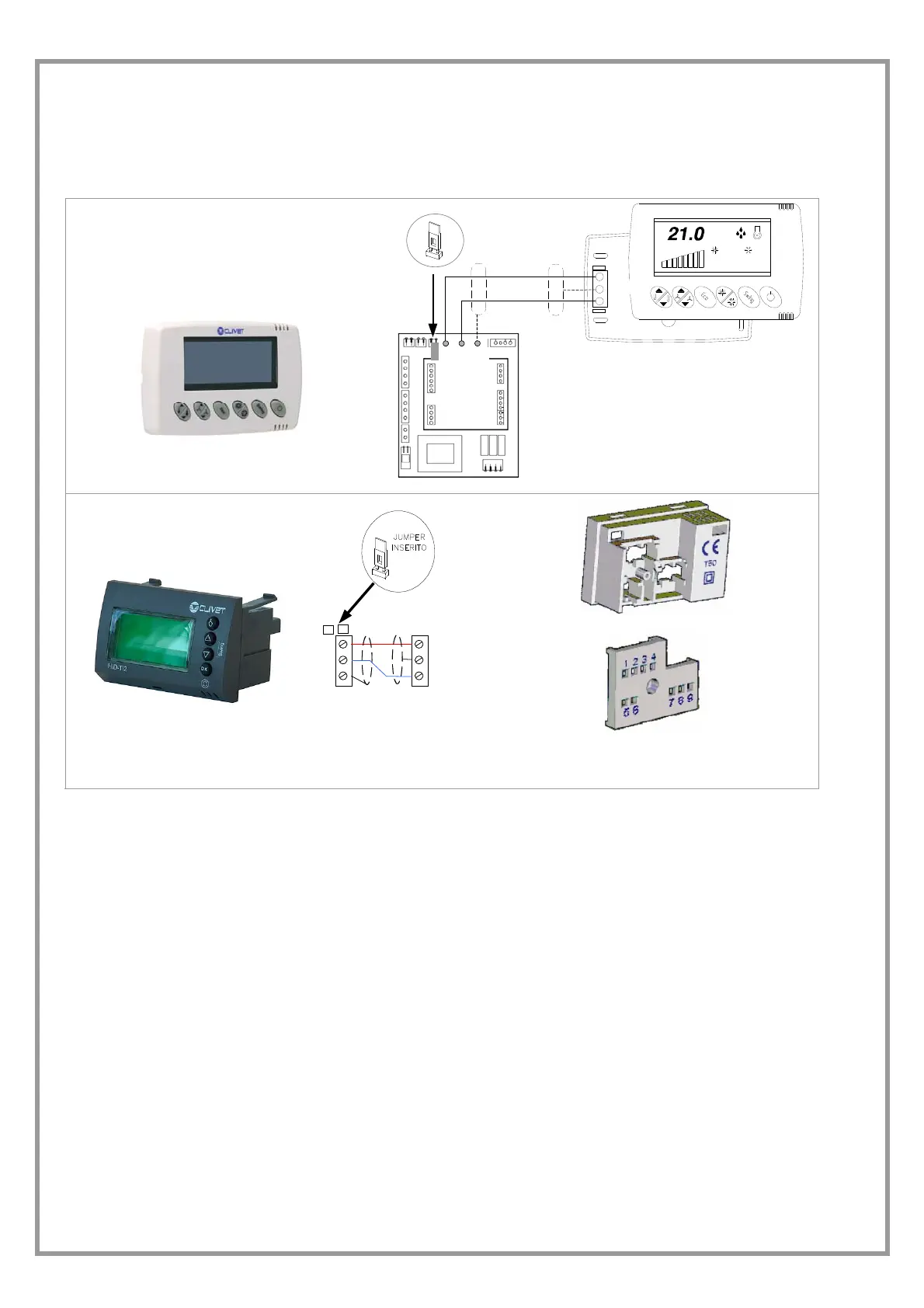

The TERMINAL SPACE electronics can be combined to the room controls following indicated.
In both cases the type of used cable must be 2x0.35 mm
2
with shield on the gnd.
Max. distance: 15m
HID-T2 electronic room control
TEMPERATURE probe management (HID-T2)
OR TEMPERATURE + HUMIDITY (HID-T3)
+
2
1
4
5
3
-
gnd
12 11 10
+ -- gnd
HID-TI2 uncased electronic room
control
9
8
7
+
-
NET
12
11
10
THERMOSTAT UNIT
The uncased room control can be supplied with supports that allow to adapt it to the plates of the main civil series: refer
to the instructions attached to the thermostat.
POSITIONING OF THE ROOM THERMOSTAT
The selection of the place of installation is decisive for room comfort and energy consumption.
The thermostat must be positioned:
• in a room with average temperature and humidity that are representative of other rooms
• at a height of 150 cm
• preferably on an internal wall
Positions to avoid:
• near sources of heat (lamps, computers, etc.)
• exposed to direct sunlight
• in a position in the direct flow of air from outlets of diffusers
• behind curtains of pieces of furniture
• near doors and windows to the outside
• on walls where there are chimneys or heating pipes
• on external walls
