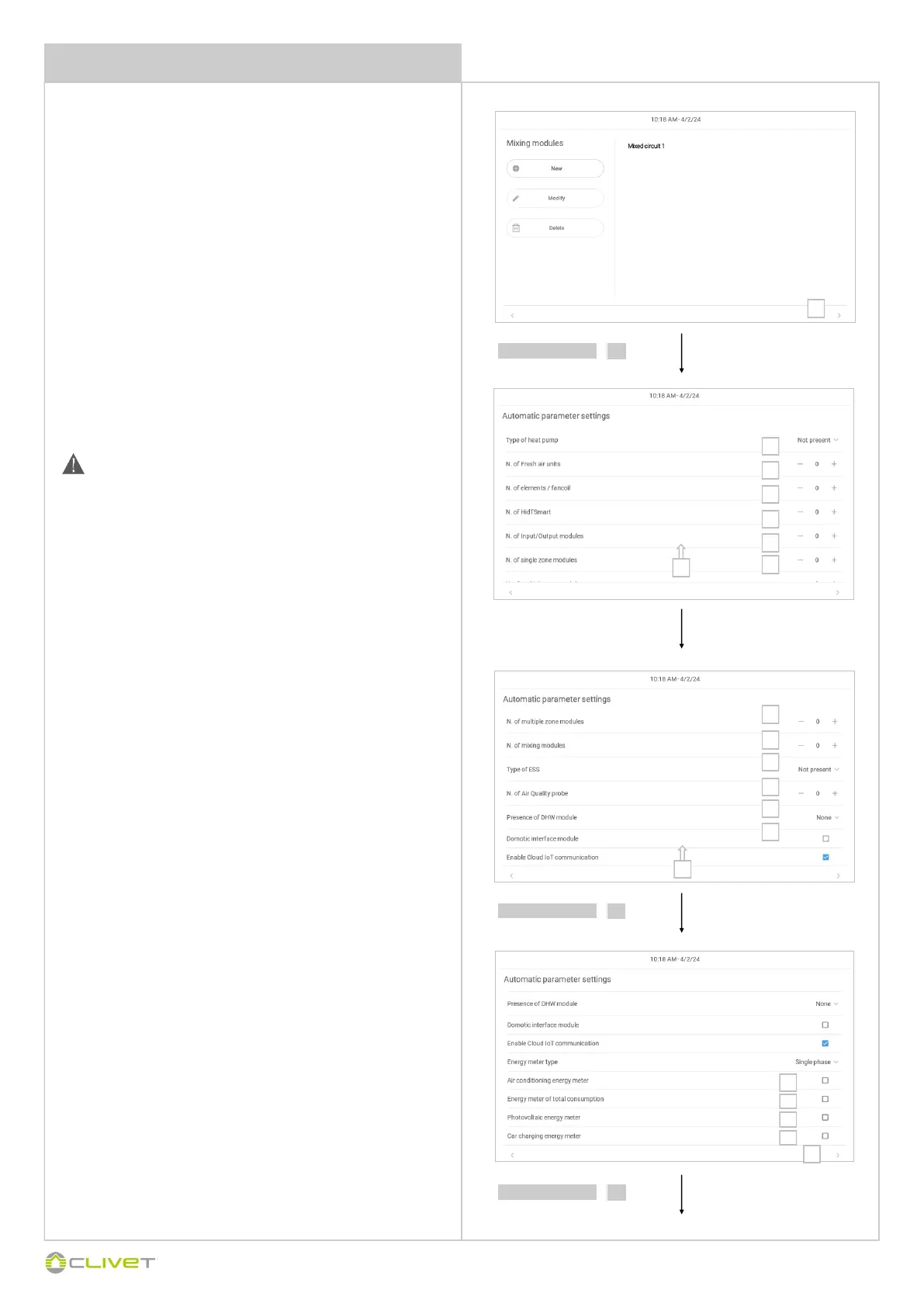

SYSTEM COMPONENT CONFIGURATION
Define mixed circuits:
low temperature mixed circuits (max. 3)
for combinations, refer to the previous page
select
13
select
14
select
15
Define the composition of the system:
A. heat pump type
B. number of Elfofresh units (max. 4)
C. number of Fancoil modules (max. 40 including other
components found)
Important: check the fancoil model to see if the direct bus
connection is to the unit’s board or via thermostat/HMI
D. number of HID-TSmart thermostats (max. 30)
E. number of Input/Output modules (max. 2, for MIOX
compatibility)
F. number of single area modules (max. 40 including other
components found)
G. number of multiple area modules (max. 5)
H. number of mixing modules (max. 3)
I. type of ESS (max.1)
J. number of probes
K. presence of domestic hot water module:
none
ACS da PDC
AQUA / Combo On-Off
SWAN-2 / Combo Modbus
L. home Automation interface module
M. type of energy meter
N. absorbed energy 1
O. absorbed energy 2
P. producer energy meter
To see the other components, drag area "1" upwards
13
1
1
15
M
N
O
P
A
B
C
D
E
F
H
I
J
K
L
G
To Next Page
