SYSTEM COMPONENT CONFIGURATION

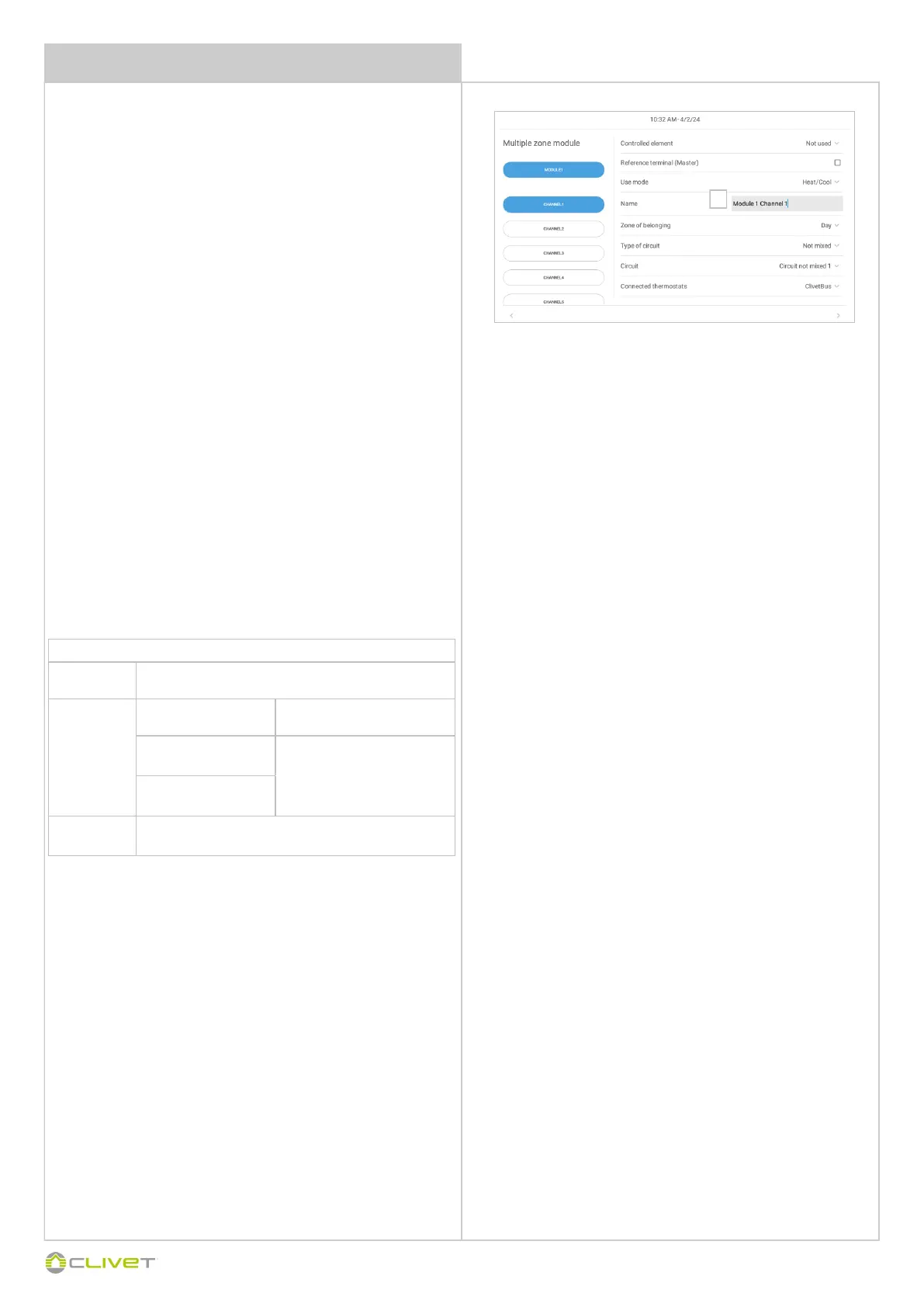

Multiple zone module
For each module available, define the type of controlled component for
each channel:
 single step radiant panel (Temperature + Humidity)
 single step radiant panel (Temperature only)
 double step radiant panel (Temperature + Humidity)
 triple step radiant panel(Temperature + Humidity)
 radiator
 fan coil with electro-mechanical thermostat
 radiator with electro-mechanical thermostat
 radiant panel with electro-mechanical thermostat
 not used
Generic I/O (see page 95)
Reference terminal (Master) pag. 101
Use mode
 HeatCool
 Cool only
 Heat only
Belonging area:
 kitchen, living room, etc.
Type of circuit assigned:
 mixed
 non-mixed
Number of circuit:
 mixed circuit n.1 / 2 / 3
 non-mixed circuit n.1 / 2 / 3
Thermostats connected:
Clivet Bus
See ELFO Control3 EVO installation manual
Modbus
Sensor thermostat+
humidity
Ambient probe (HID-UR)
Thermostat only
(temperature only)
See ELFO Control
3
EVO in-
stallation manual
Sensor only
(temperature+humidity
Modbus
Touch
See ELFO Control
3
EVO installation manual
To modify the name, select B.
