SYSTEM COMPONENT CONFIGURATION

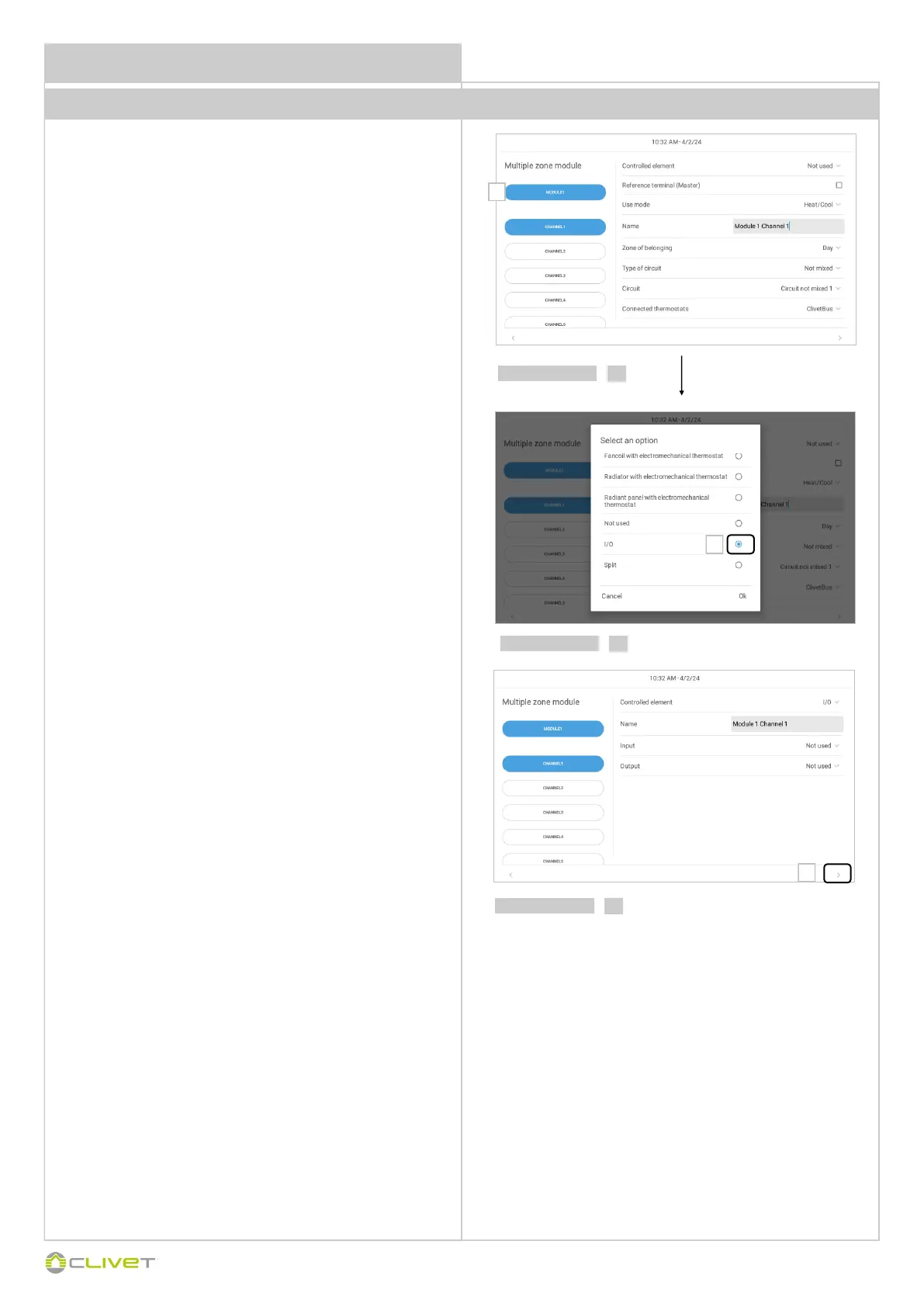

Select I/O from Controlled element

Define the inputs and outputs of multiple radiant area module canals:

 Remote consent remotely activates the CONTROL4 NRG

system;

 Boiler alarm acquires the backup heater’s alarm.

Configure the outputs to control the following functions:

 Circulator activation: activates when there is a request for

the water circuit associated with the circulator;

 Zone valve control: activates when there is a request for

the water circuit associated with the zone valve;

 Seasonal management: with the system in heating mode it

closes the contact, when it is in cooling mode it opens it. If the

system includes a Chiller combined with a boiler, it can be

used to control the shut-off valves of the water circuit;

 Heating resource activation: activates when the system is

in heating mode and one of the areas needs to be activated.

If only the boiler is to be used and not combined with a heat

pump.

 Delayed heating resource activation: activates with a delay

time (set in the parameter) when the system is in heating mode

and one of the areas needs to be activated.

If only the boiler is to be used and not combined with a heat

pump.

 Pump on secondary: activates according to the actual

energy request from a specific area

 Dehumidifier: activates up to 4 auxiliary dehumidifiers

with ON/OFF input contact for remote consent.

 ElfoFresh post-heating heater in dehumidification:

activates the use of a post-heating heater for Elfo Fresh units

in dehumidification

 Cooling resource activation: if the boiler is used in

combination with a unit to produce cooling energy only, the

module will also switch circuits according to the system's

heating or cooling operating mode.

- normally open contacts on stand-by to chiller.

- powered contacts to boiler.

 Delayed cooling resource activation: the same as the

previous mode with the introduction of a delay time that can be

set in parameter.

 Photovoltaics

In compliance with the thresholds in parameter 67 and 68

 Coil

In compliance with the thresholds in parameter 70 and 71

GENERIC INPUT/OUTPUT MODES PROVIDED BY THE MULTIPLE RADIANT AREA MODULE

select
