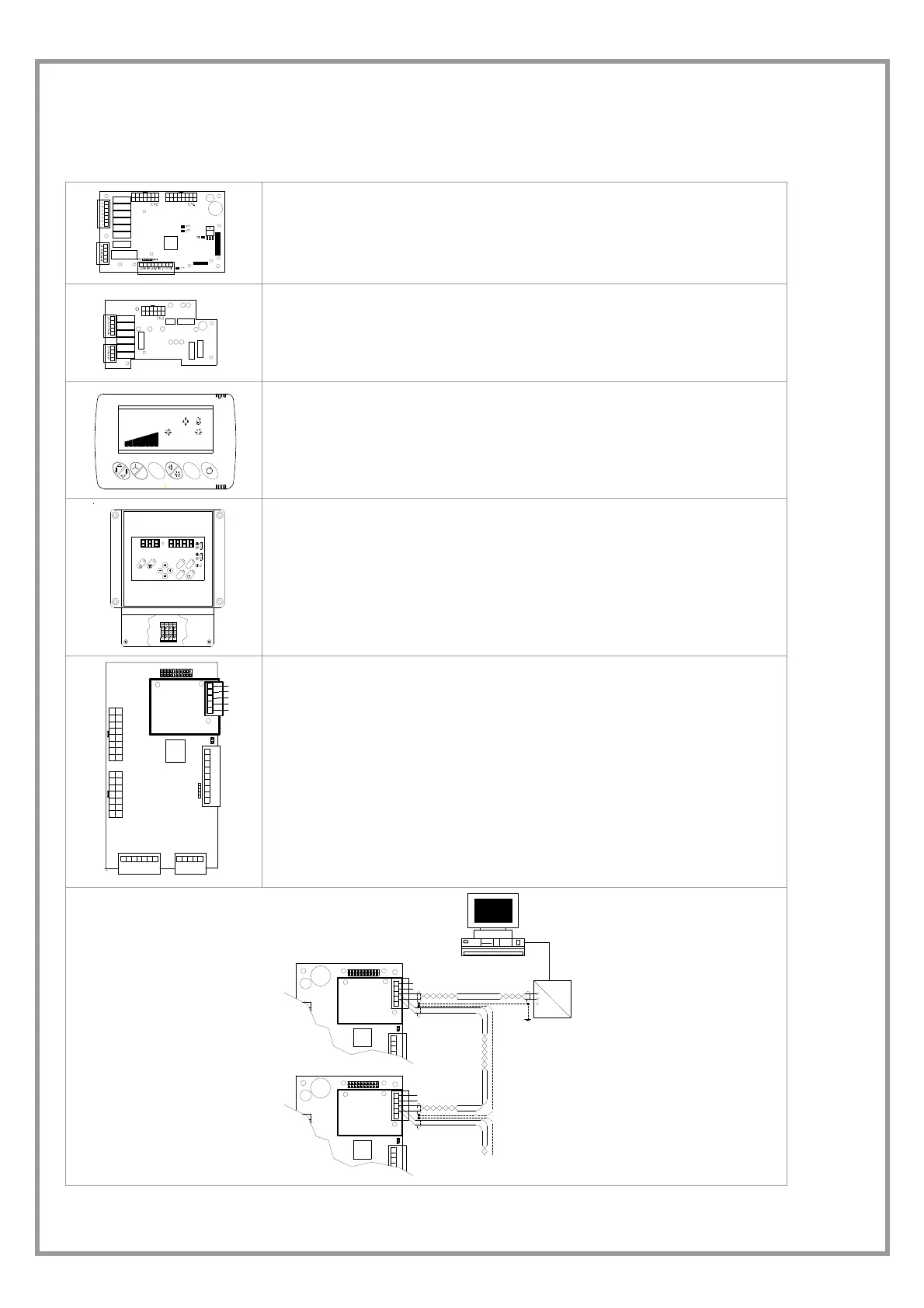

SYSTEM COMPOSITION
The complete system is made of the following modules.
Some are optional so they could not be present.
Some are supplied in packages separated by the unit: verify the shipping documents.
MAIN ADJUSTMENT MODULE
STANDARD ON THE UNIT - code C5110776
It controls unit (inlets, outlets, configuration parameters)
EXPANSION PLUG-IN MODULE
OPTIONAL - code C5110767
Plugged-in on the main module.
It controls some inputs and outputs.
HID-P1 ROOM THERMOSTAT
STANDARD - Code PE6B0015
Equipped with a thermoregulation probe that is used:
• in case of failure of the probe on the unit return
• if the return probe is disabled by parameter
REMOTE KEYPAD
OPTIONAL - Code PE6B0017
It remotely repeats all functions available on the machine keyboard
SERIAL CONVERTER TTL/RS485
OPTIONAL - code PE6B0020
The supervision services are available, with standard modbus protocol. Plugged-
in in the main module on the electric board (see lay in the wiring diagram). It is
possible to connect up to 127 units with a single supervision system.
The connection with a PC must use a RS485/232 converter; the serial line RS232
can be max. 10-m long.
CONNECTIONS:
refer to the wiring diagram and to the SERIAL LINES/DATA paragraph
SPECIFICS FOR THE RS485 CONNECTION
• cable with 2 twisted wires + screen
• the serial line RS-485 can be max. 1000-m long.
