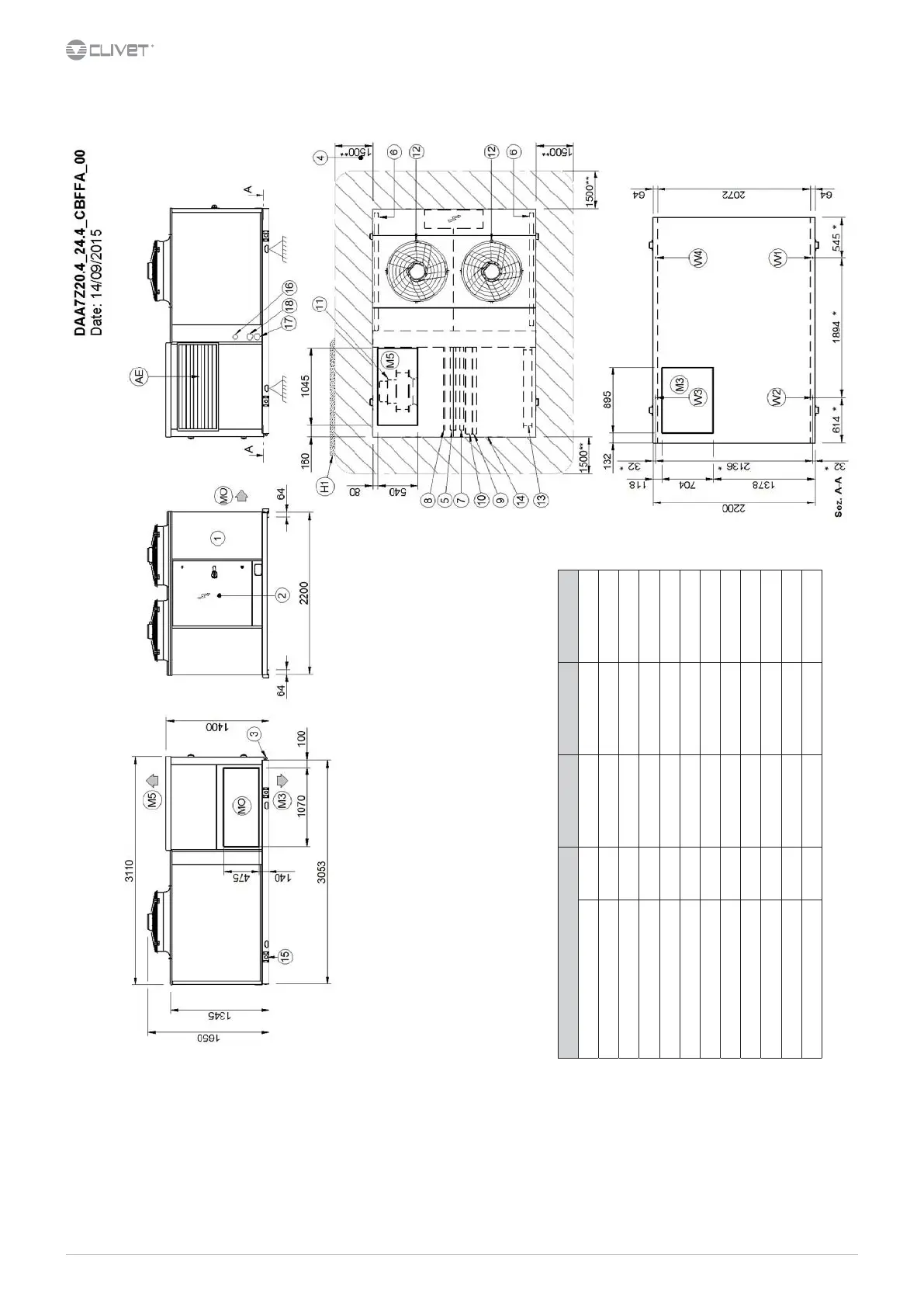

Size 20.4 - 22.4 - 24.4 - CBFFA conguration
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
Size 20.4 22.4 24.4
A - Operating length mm 3175 3175 3175
B - Operating depth mm 2300 2300 2300
C - Operating height mm 1650 1650 1650
Shipping length mm 3175 3175 3175
Shipping depth mm 2300 2300 2300
Shipping height mm 1650 1650 1650
W1 Supporting point kg 390 400 420
W2 Supporting point kg 266 268 270
W3 Supporting point kg 298 300 302
W4 Supporting point kg 404 425 435
Operating weight kg 1358 1393 1427
Shipping weight kg 1358 1393 1427
1.
2. Electrical panel
3. Condensate drain
4. Functional spaces
5. Internal exchanger
6. External exchanger
7. H2O heating coil / Electric heaters (Otional)
8. Reheat coil (Optional)
9. G4 air lters (Standard)
10. F7 lters / H10 electronic lters (Optional)
11. Electric fan (Supply)
12. External electric fan
13. Fresh air damper
14. Access for coil - lter - heater inspection
15. Lifting brackets (removable)
16. Humidier connections
17. H2O heating coil input Ø 1 1/4”
18. H2O heating coil output Ø 1 1/4”
(M0) Horizontal air supply
(M3) Downow air supply (Optional)
(M5) TUpow air supply (Optional)
(AE) Fresh air inlet
(H1) Wall with same height as unit on a maximum of three sides
(*) Anti-vibration mount position
(**) Suggested minimum clearance
