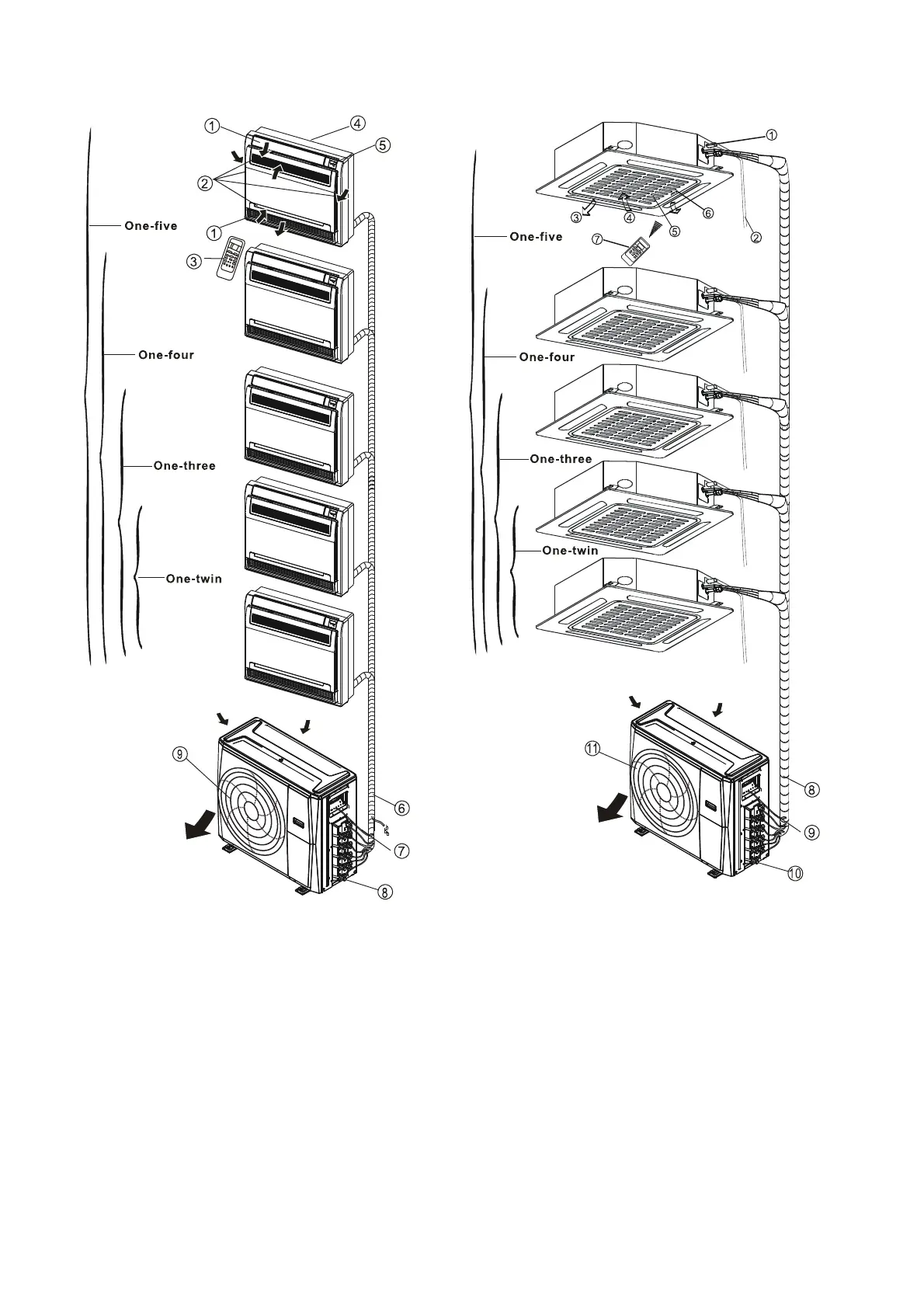

Fig. 2.3
Floor and standing type(console) Compact four-way cassette type
Indoor unit
1. Air ow louver (at air outlet)
2. Air inlet (containing air lter)
3. Remote controller
4. Installation part
5. Display panel
Outdoor unit
6. Drain hose, refrigerant connecting pipe
7. Connective cable
8. Stop valve
9. Fan hood
Fig. 2.4
Indoor unit
1. Drain pump(drain water from indoor unit)
2. Drain hose
3. Air outlet
4. Air inlet
5. Air-in grill
6. Display panel
7. Remote controller
Outdoor unit
8. refrigerant connecting pipe
9. Connective cable
10. Stop valve
11. Fan hood
7
