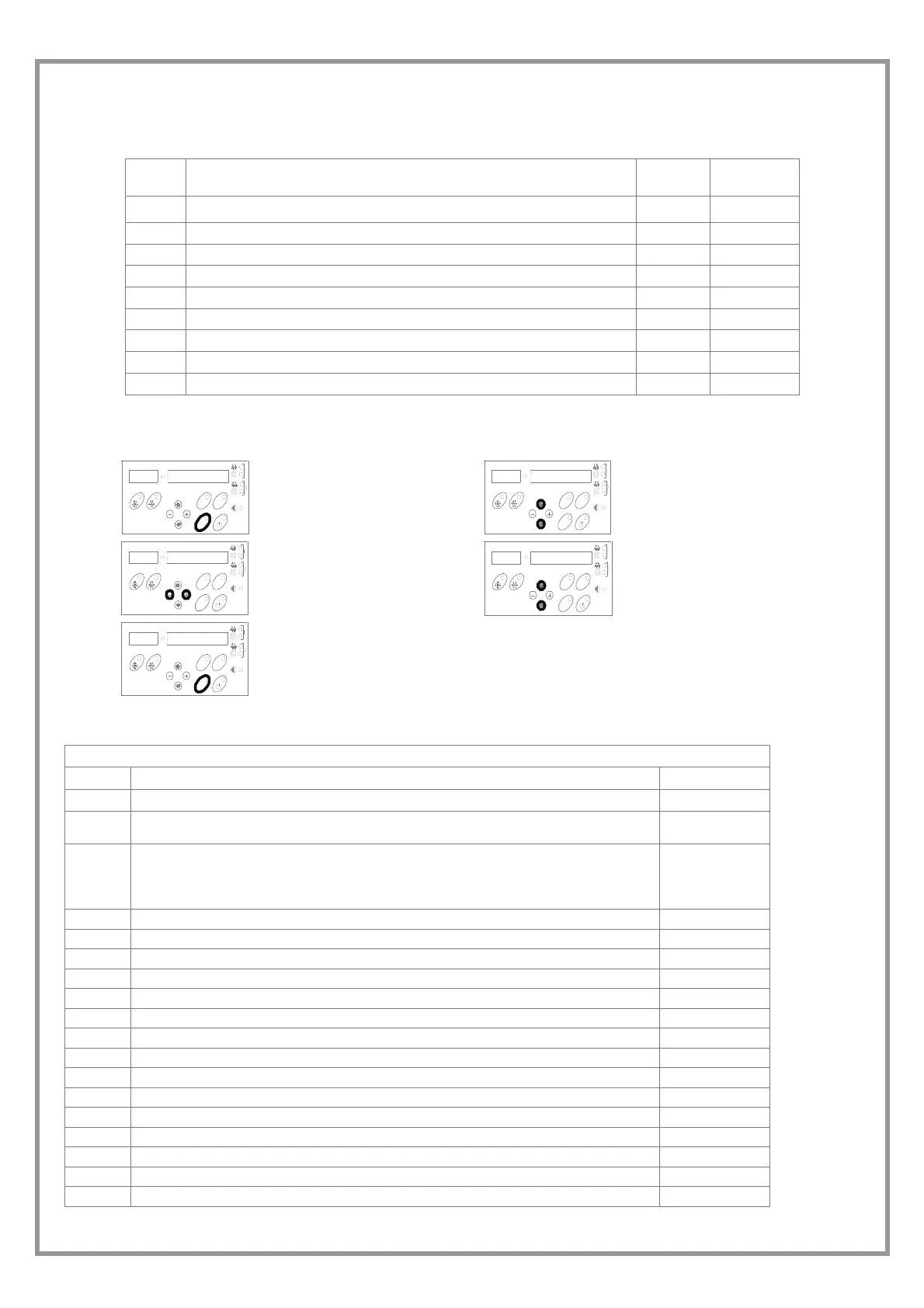

CLIVET WSAT-XEE 222 - PARAMETER AND STATUS VIEWING; ACCESSIBLE PARAMETERS LIST

M0G140F7-01 06/11/07 pag 26
ACCESSIBLE PARAMETERS FROM REMOTE OR SERVICE KEYBOARD
num.
Par.
description Value UM
29
Summer secondary Set Point
10 °C
32 Summer Set Point 5.7 °C
42 Summer Set Point Maintenance 20 °C
44 Enables Summer Maintenance 0 num
77 Antifreeze resistanceset point 4 °C
80 Antifreeze alarm 4 °C
84 Limit of deactivation before reaching the antifreeze steps 4.5 °C
163 Configures remote inputs: 1 = H/C by keypad or supervisor
192 Keypad address
PARAMETER MODIFICATION
1
A
L
A
RM
STATU
S
S
E
T
Push SET button
2
AL
AR
M
S
T
A
T
U
S
S
E
T
Select the
parameter
3
AL
AR
M
S
T
A
T
U
S
S
E
T
Modify the value
4
A
L
A
RM
S
T
A
TUS
S
ET
Select another
parameter
5
A
L
A
R
M
STATUS
S
E
T
SET to esc
VISIBLE STATUS FROM REMOTE KEYBOARD OR SERVICE KEYBOARD
Visible status from remote keyboard or service keyboard
INDEX DESCRIPTION VALUE
1
Current Set Point
°C
2
Temperature drop in degrees centigrade given by the compressor including
compensations, if any
°C
3
Resource activation timer
When this value reaches the value fixed at the 4 status, the thermal regulator will
compare the input temperature with the set point and will activate the resources, if
necessary
Seconds
4
Dynamic TimeScan relating to source activation Seconds
5
Value in degrees of the external air compensation °C
6
Value in degrees of the water reset signal compensation °C
7
Value in degrees of the charge compensation °C
9
Return temperature °C
10
Supply temperature 1 °C
11
Supply temperature 2 °C
12
Coil temperature 1 °C
13
Condensing pressure 1 Bar
14
Fan/Coil percentage 1 0-100%
15
Coil temperature 2 °C
16
Condensing pressure 2 Bar
17
Condensing pressure 2 Bar
18
Water Reset signal value 4-20 mA
19
Outdoor temperature °C
