Clopay EZ-SET - Step 2: Tube Coupler Installation; Step 3: Measure Spring Length

4
NOTE: Refer to standard instruction manual to
determine the radius of your track.
Step 2
Push the two torsion tube sections rmly into the
coupler.
NOTE: There are sets of two opposing holes
in each end of the coupler. When attaching the
coupler to each tube be sure to use the two
holes that are on the same side of the coupler
as shown in Figure 4.
After the tubes are inserted completely into the
coupler, drill one
3
/16" pilot hole in each torsion
tube using the coupler holes as a guide. Fasten
the coupler to the tube with (2) #14 x
5
/8" sheet
metal screws. (FIG. 4) Make sure the screws are
secure. Be careful not to over tighten screws, as
this could cause the hole to be stripped out.
IMPORTANT!
Step 3
Lay the spring(s) at on the oor. Measure the
length of each spring as shown in Figure 5, and
record each length in the space provided. You will
need to refer to this length in Step 7.

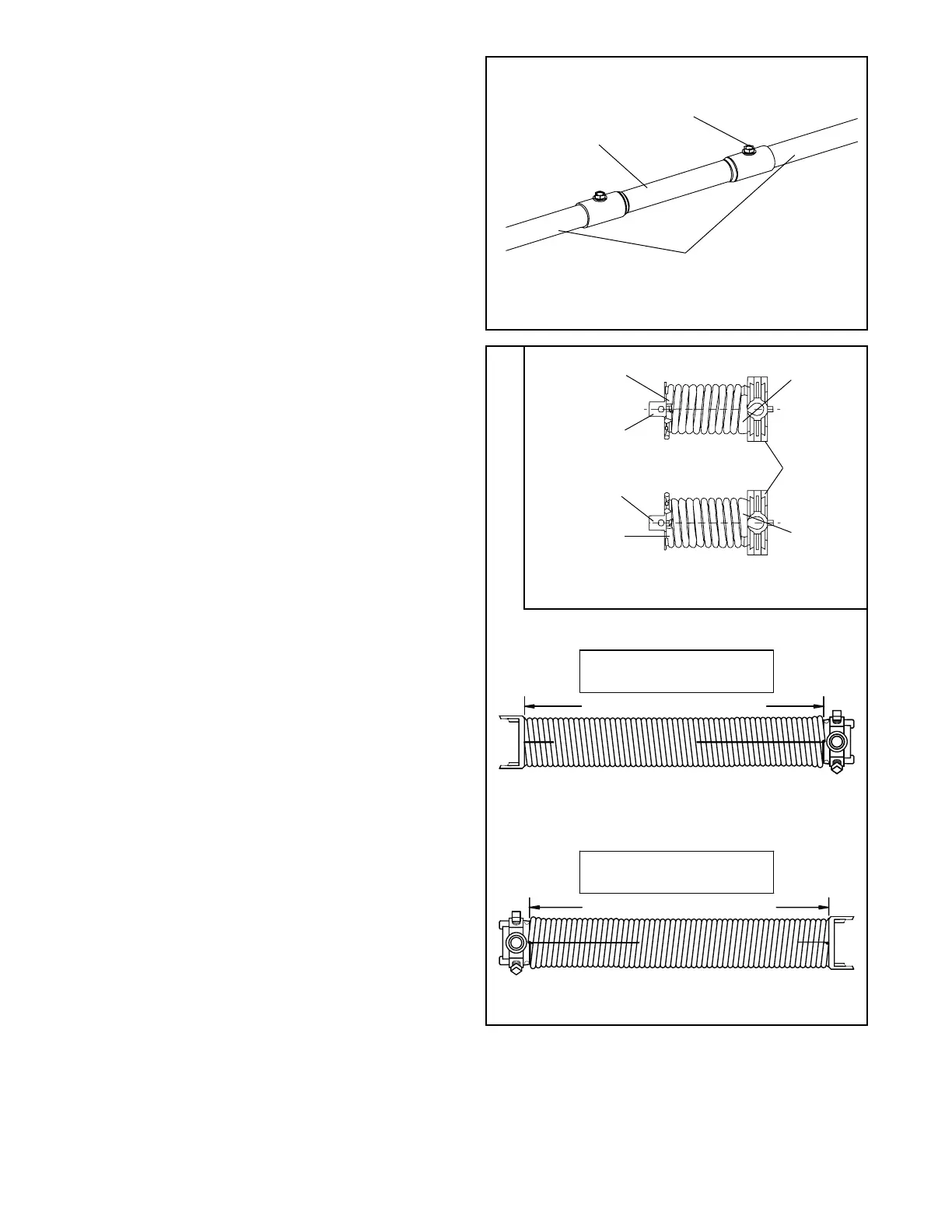

Fig. 4
TUBE COUPLER (IF SUPPLIED)
Tube
Coupler
Torsion
Tubes
#14 x
5
/8" Sheet
Metal Screw
Fig. 5
Left Spring
Right Spring
Fig. 5A
DETAIL VIEW
Set Cone
End of
Spring
End of
Spring
Spring Plug
Spring Plug
End of
Spring
End of
Spring
Left Side Spring Length
Right Side Spring Length
(RECORD LENGTH HERE)
(RECORD LENGTH HERE)
L-GREEN
R-ORANGE
