2.2 - Remove the protective
sticker on the camera bracket and
place the camera in the middle of
the electrostatic sticker.
Press the base of the bracket to
ensure that the camera adhesive
is in close contact with the static
adhesive.

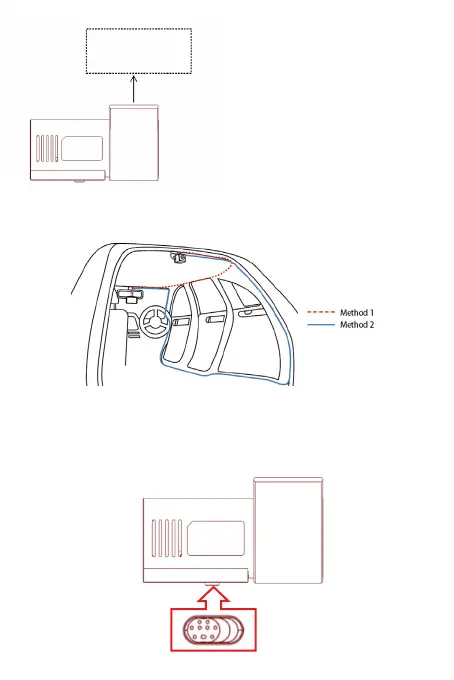

2.3 - Run the secondary camera cable through the vehicle (see
image below) and connect it to the main camera unit.
2.4 - Adjust the angle of the secondary camera, to suit your
required viewing angle, which can be rotated 360 degrees. In
addition, the image can be ipped 90 degrees to allow either
horizontal or vertical installation. The default position is shown in
the gure below
