Last updated on 13/09/2019

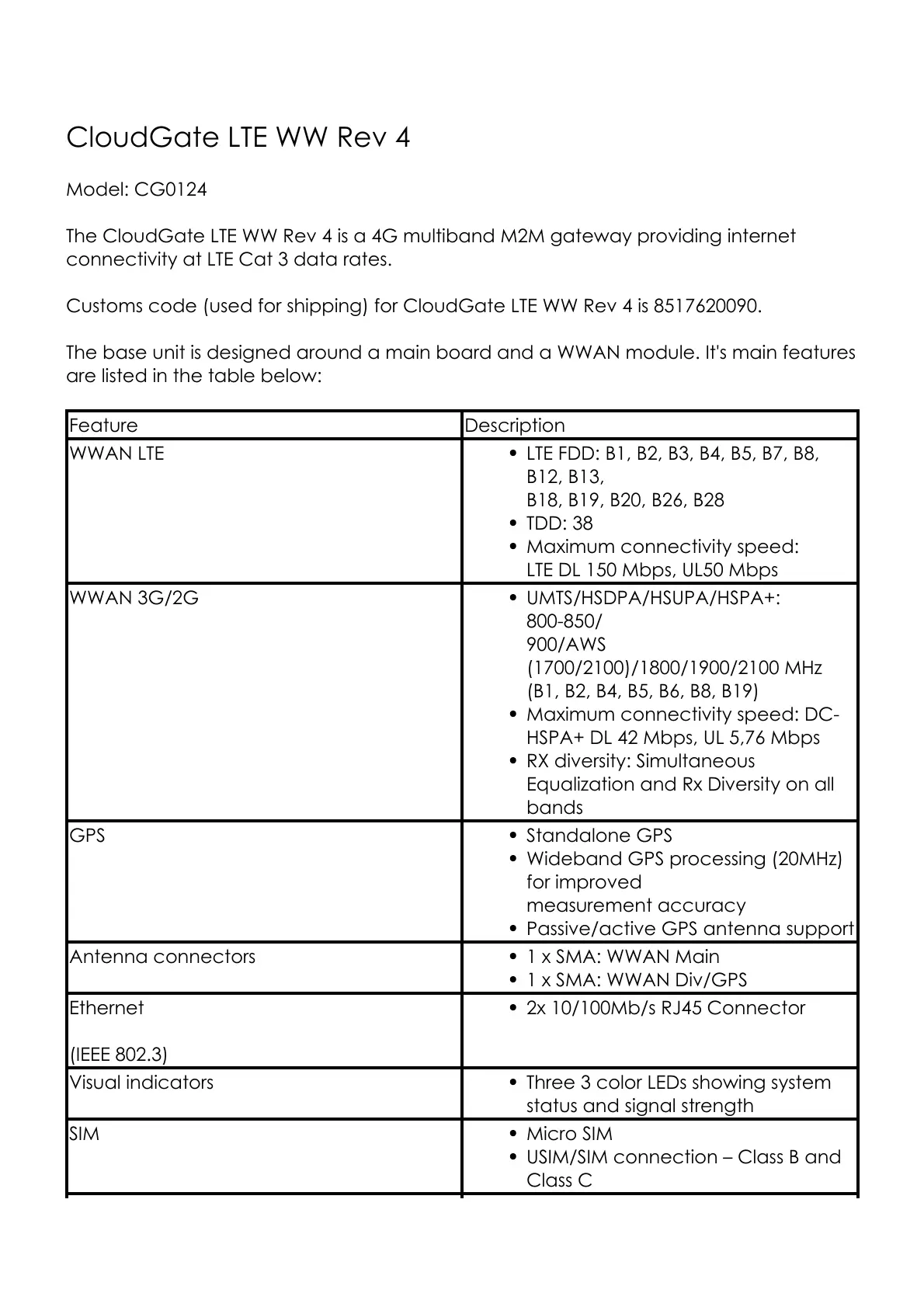

CloudGate LTE WW Rev 4
Model: CG0124
The CloudGate LTE WW Rev 4 is a 4G multiband M2M gateway providing internet
connectivity at LTE Cat 3 data rates.
Customs code (used for shipping) for CloudGate LTE WW Rev 4 is 8517620090.
The base unit is designed around a main board and a WWAN module. It's main features
are listed in the table below:
Feature Description
WWAN LTE LTE FDD: B1, B2, B3, B4, B5, B7, B8,
B12, B13,
B18, B19, B20, B26, B28
TDD: 38
Maximum connectivity speed:
LTE DL 150 Mbps, UL50 Mbps
WWAN 3G/2G UMTS/HSDPA/HSUPA/HSPA+:
800-850/
900/AWS
(1700/2100)/1800/1900/2100 MHz
(B1, B2, B4, B5, B6, B8, B19)
Maximum connectivity speed: DC-
HSPA+ DL 42 Mbps, UL 5,76 Mbps
RX diversity: Simultaneous
Equalization and Rx Diversity on all
bands
GPS Standalone GPS
Wideband GPS processing (20MHz)
for improved
measurement accuracy
Passive/active GPS antenna support
Antenna connectors 1 x SMA: WWAN Main
1 x SMA: WWAN Div/GPS
Ethernet
(IEEE 802.3)
2x 10/100Mb/s RJ45 Connector
Visual indicators Three 3 color LEDs showing system
status and signal strength
SIM Micro SIM
USIM/SIM connection – Class B and
Class C
3
