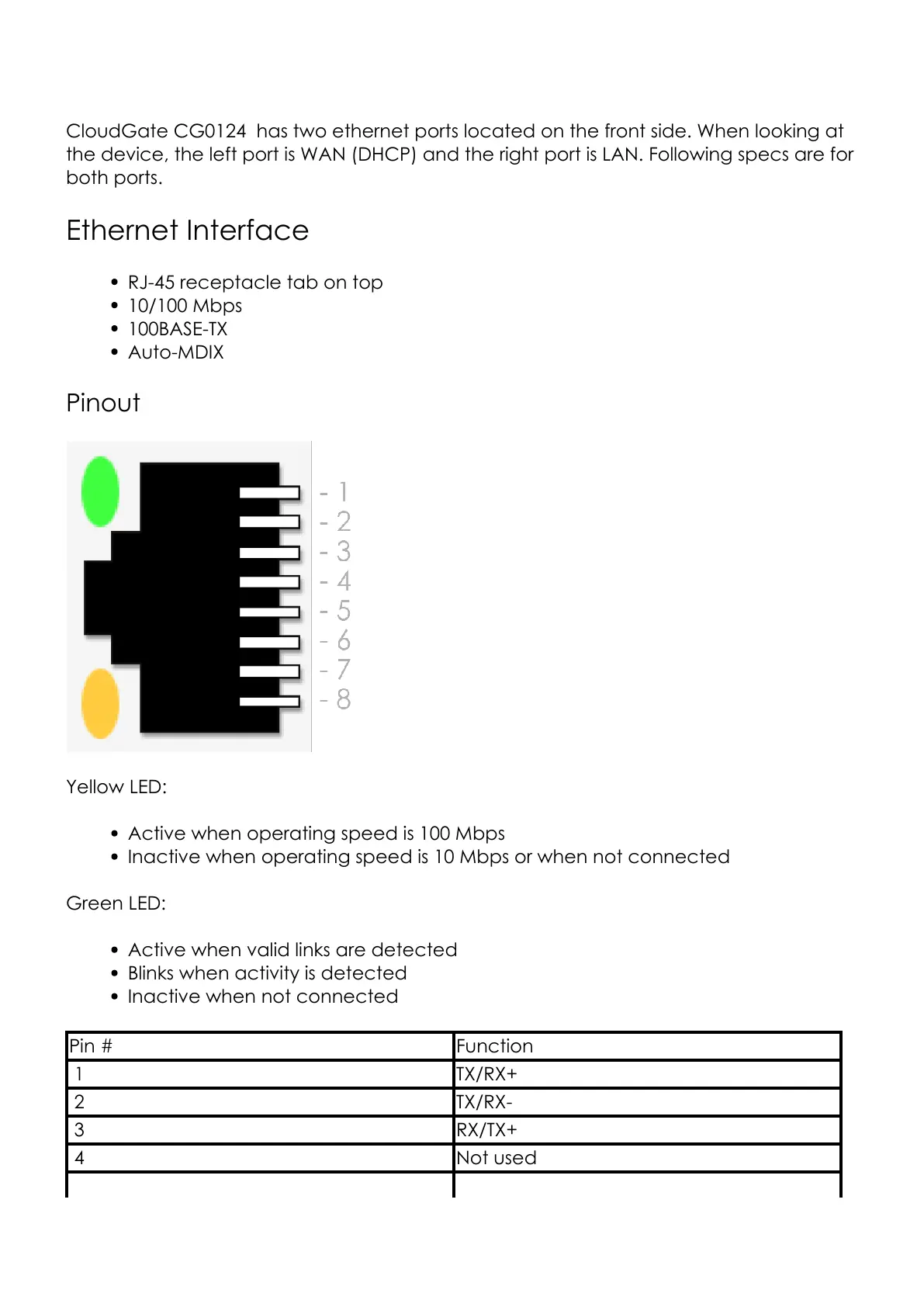

CloudGate CG0124 has two ethernet ports located on the front side. When looking at
the device, the left port is WAN (DHCP) and the right port is LAN. Following specs are for
both ports.
Ethernet Interface
RJ-45 receptacle tab on top
10/100 Mbps
100BASE-TX
Auto-MDIX
Pinout
Yellow LED:
Active when operating speed is 100 Mbps
Inactive when operating speed is 10 Mbps or when not connected
Green LED:
Active when valid links are detected
Blinks when activity is detected
Inactive when not connected
Pin # Function
1 TX/RX+
2 TX/RX-
3 RX/TX+
4 Not used
10
