Remote LCD Screen Indicators

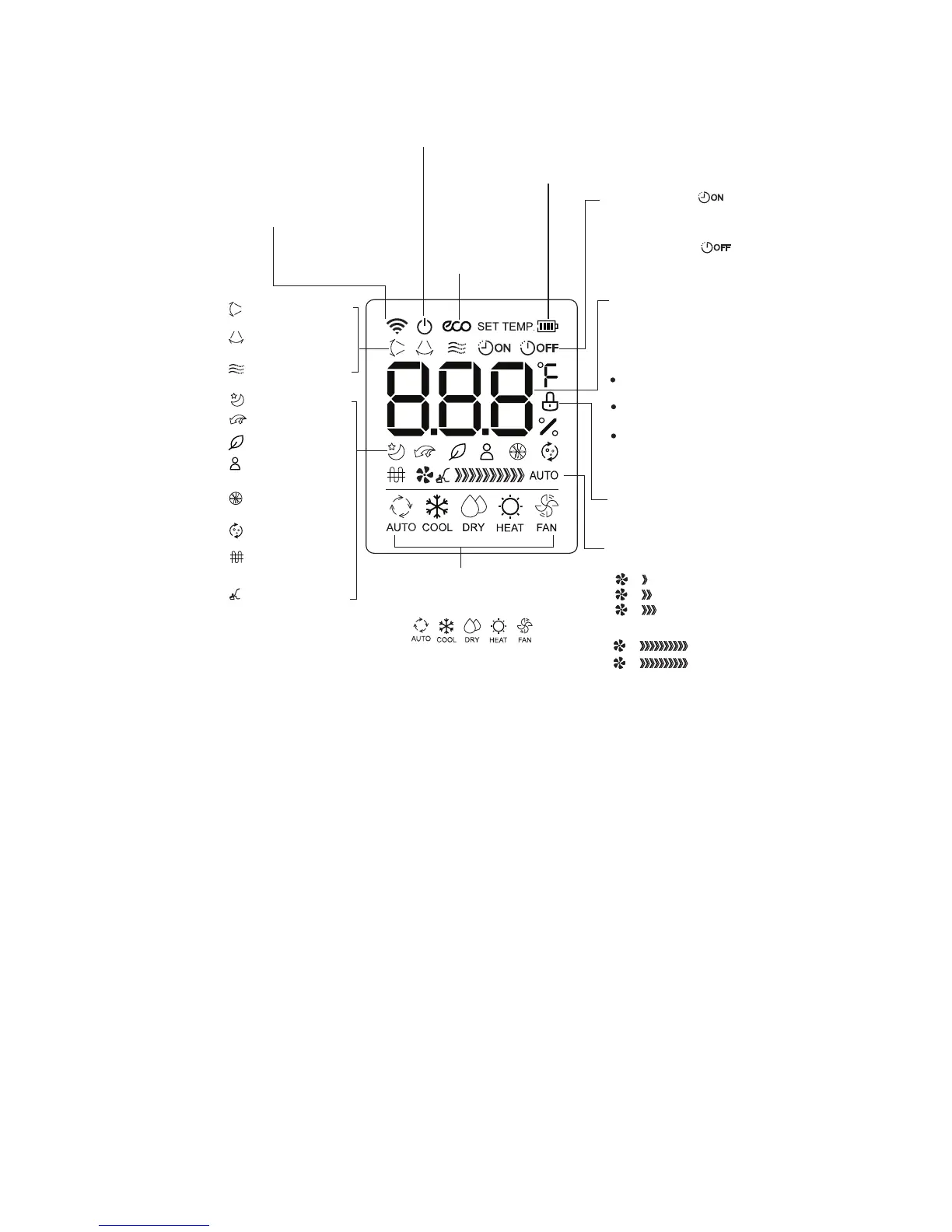

Fig. 3 —Remote LCD Screen Indicators
T
ransmission Indicator
Up-Down louver
auto swing display
Right-Left louver auto
swing display*
Sleep mode display
Turbo mode display
Fresh feature display*
Follow me feature
display
Not available for
this unit
Not available for
this unit
Not available for
this unit*
Self clean feature
display
Silence feature
display
Lights up when r
emote
sends signal to indoor
unit
ON/OFF display
Appears when the unit is turned on,
and disappears when the unit is turned off
TIMER ON display
Battery display
ECO display
LOCK display
Fan speed display
Indicates that the LOCK
function is on.
Displays selected fan speed:
Temperature/Timer/Fan
speed display
Displays the set temperature
by default, or fan speed or
timer setting when using
TIMER ON/OFF functions
Temperature range:
60-86
°F/16-30°C
Timer setting range:
0-24 hours
Fan speed setting range:
AU% -100%
This display is blank when
operating in FAN mode.
Displays when ECO
feature is activated
Low battery detection
MODE display
Displays the current
mode, including:
Displays when TIMER
ON is set
TIMER OFF display
Displays when TIMER
OFF is set
11%-20%
1%-10%
21%-30%
91%-100%
AUTO
.................
This fan speed can not be
adjusted in AUTO or DRY
mode.
*Not available for this unit
