CNH Cursor 13 - Crankcase Liner - Measure

Engine-Engineandcrankcase
CrankcaseLiner-Measure
Prioroperation:
CrankcaseLiner-Remove(10.001)

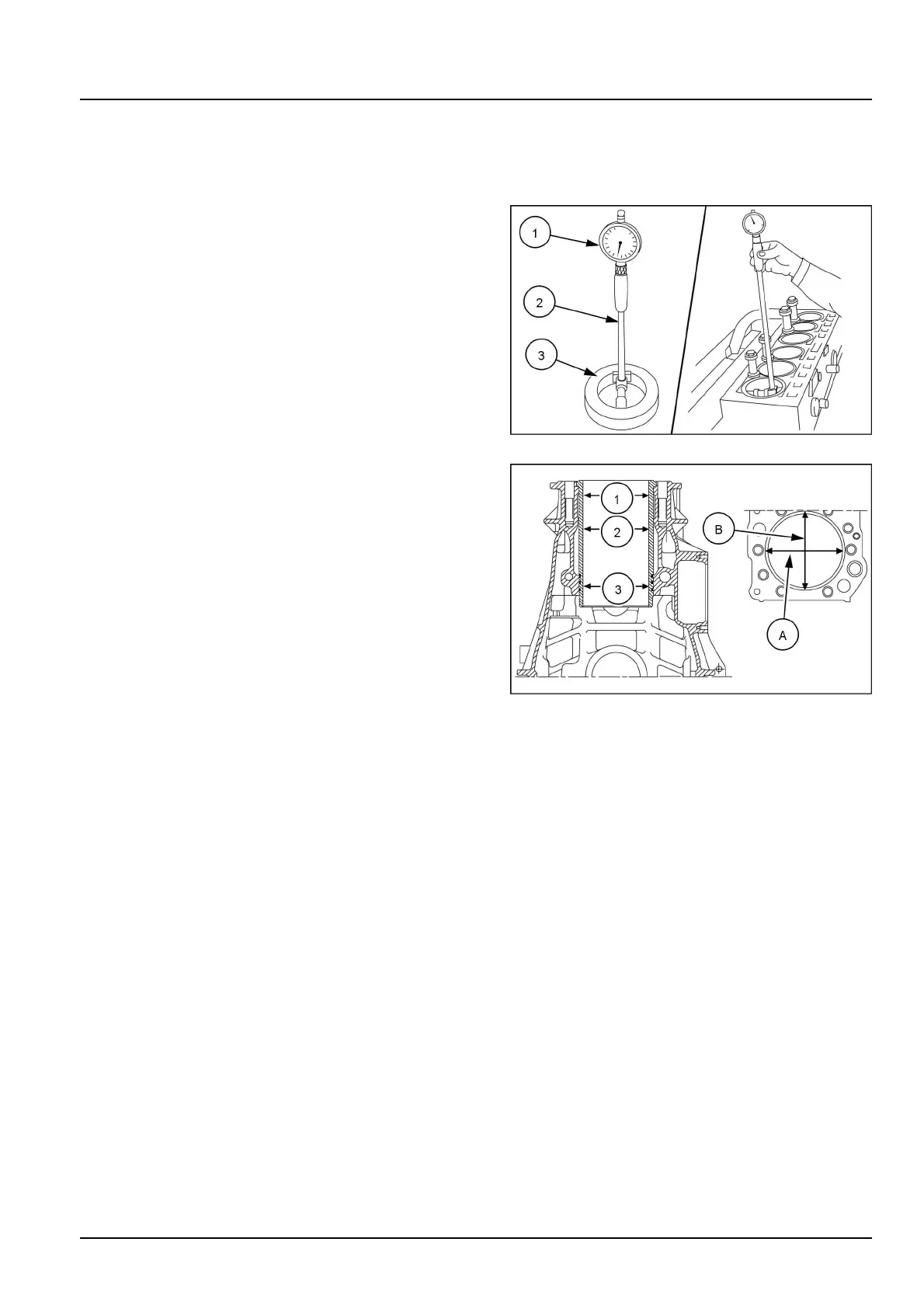

1.Theinternaldiameterofthecylinderlinerischecked
forovalization,taper,andwear,usingaboredial(1)
centesimalgauge(2)previouslysettoringgauge(3),
whichhasadiameterof135mm(5.315in).
NOTE:Ifa135mm(5.315in)isnotavailable,itisaccept-
abletouseamicrometer.
NHIL13ENG1188AA1
2.Themeasurementshavetobemadeoneachsingle
cylinderlineratthreedifferentheightsandintwodiffer-
entpositionsperpendiculartoeachotherasshownin
thegure.
NHIL13ENG1189AA2
