CNH Cursor 13 - Page 29

Engine-Engineandcrankcase
3.Uponndingamaximumwearvaluegreaterthan
0.150mm(0.006in)ormaximumovalizationvalue
greaterthan0.100mm(0.004in)ascomparedtothe
valuesinthefollowingtable,youneedtoreplacethe
cylinderliner.Nogrinding,facing,orreconditioningis
permitted.

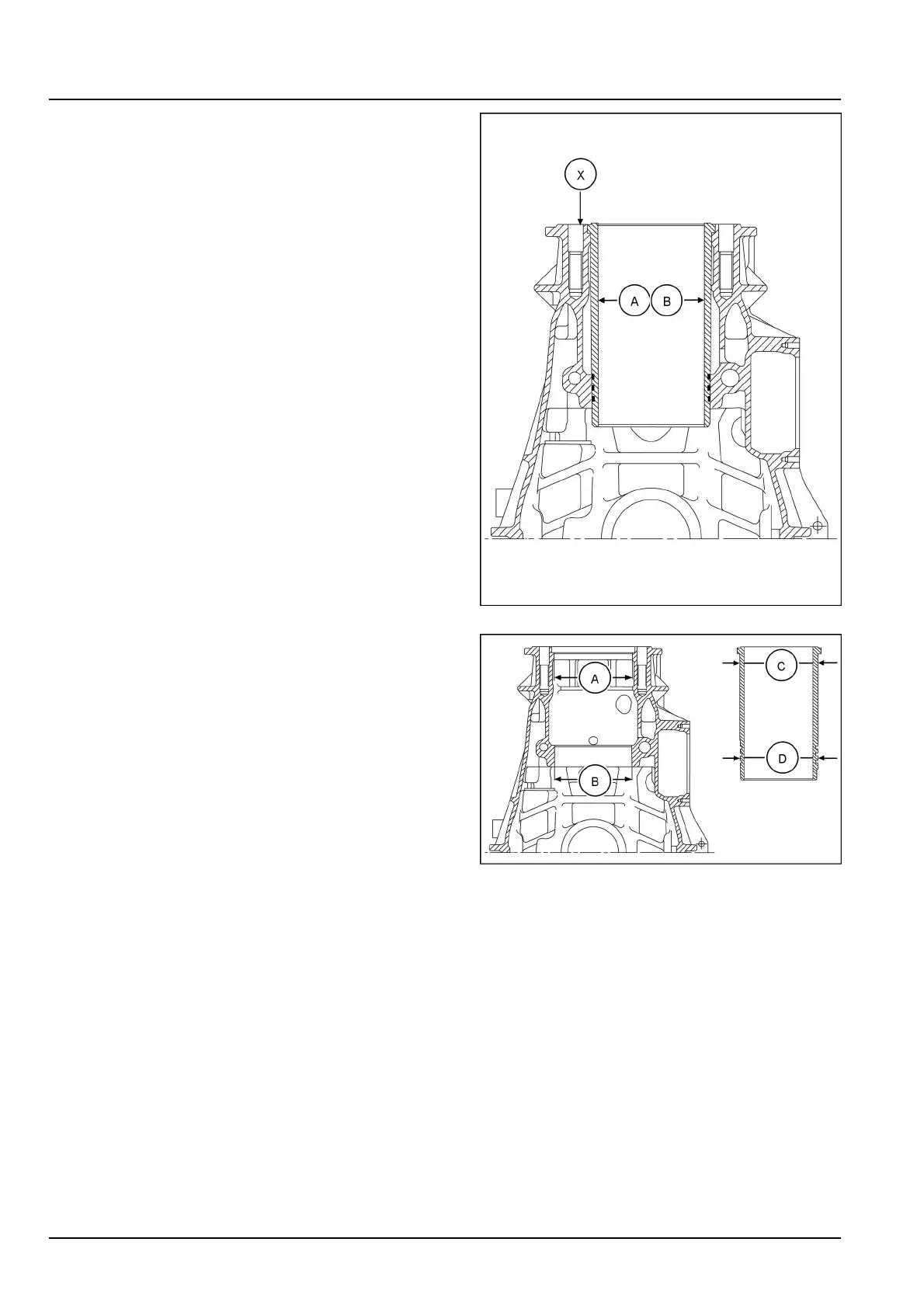

4.SelectionClass
•
A=135.000-135.012mm(5.3150-5.3154in).
•
B=135.011-135.023mm(5.3154-5.3159in).
NOTE:Thecylinderlinersaresuppliedassparepartswith
selectionclass"A".
"X"-Indicatesthelocationofthemarkingthatdesignates
theselectionclass.
NHIL13ENG1261BA3
5.Thediagramshownintheguregivestheoutsidedi-
ameterofthecylinderlinerandtheinsidediameterof
itsseat.Thecylinderlinerscan,ifnecessary,beex-
tractedandinstalledseveraltimesindifferentseats.
•
A=153.500-153.525mm(6.0433-6.0443in).
•
B=152.000-152.025mm(5.9843-5.9852in).
•
C=153.461-153.486mm(6.0418-6.0428in).
•
D=151.890-151.915mm(5.9799-5.9809in).
NHIL13ENG1190AA4
4786998101/05/2015
10.1[10.001]/10
